MS27508E14B35S Connectors for AGV Robot Power Modules

In Automated Guided Vehicle (AGV) robots, reliable power connections are critical for ensuring stable operation, continuous mobility, and safe system performance. MS27508E14B35S connectors are commonly used to connect battery systems, power distribution units, motor controllers, and charging interfaces, providing secure and efficient power transmission throughout the AGV platform.

Project Background and Industry Context

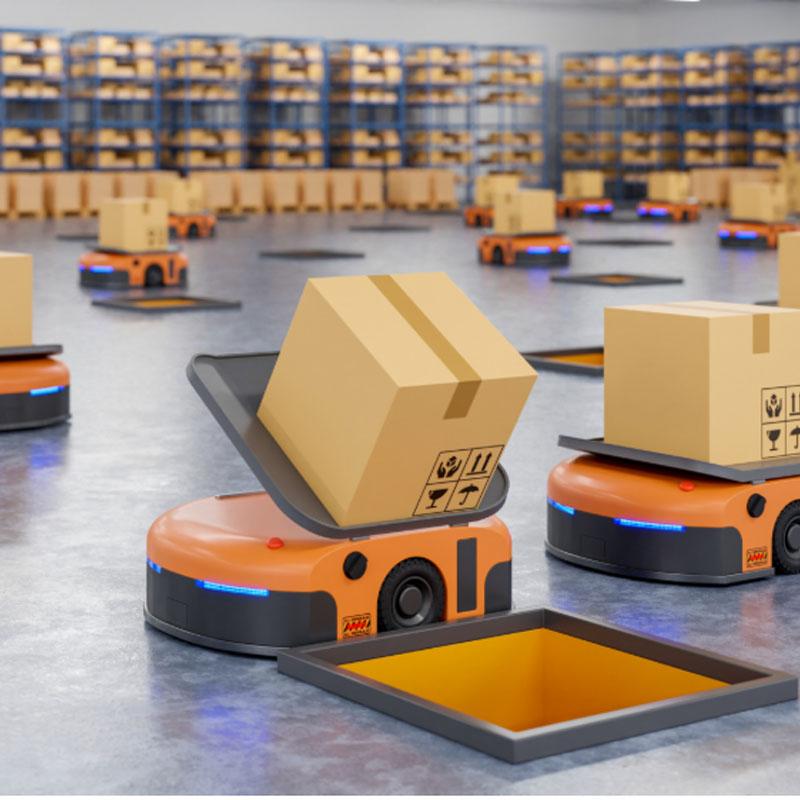

AGV robots operate in warehouses, manufacturing plants, and logistics centers across industrial sectors where uninterrupted material handling is essential. In these environments, power modules must endure continuous duty cycles, frequent start-stop operations, and exposure to dust and mechanical stress. The MS27508E14B35S connector, with its rugged metal shell and threaded coupling mechanism, is selected for these power interfaces to maintain a stable electrical path between the battery pack and the drive system.

Customer Requirement and Technical Challenge

The primary requirement for the AGV power module connection was to ensure a secure, vibration-resistant interface capable of handling the high inrush currents generated during motor acceleration and regenerative braking. The customer needed a connector that could withstand repeated mating cycles for battery swaps and maintenance access without degradation in contact resistance. Additionally, the connector had to fit within the compact envelope of the power module enclosure while providing clear polarization to prevent mis-mating during field service.

Solution and Connector Configuration

The MS27508E14B35S connector was specified for this application based on its 14-shell size, 35-pin arrangement, and socket (S) gender configuration suitable for the power module side. The metal shell provides electromagnetic shielding and mechanical protection, while the coupling nut ensures a positive lock against vibration-induced loosening. The contact arrangement supports the required current distribution across multiple pins, reducing heat concentration at any single contact point.

Commissioning and Field Performance

During system integration, the connectors were verified for correct keying alignment and full engagement torque. Continuity checks were performed across all circuits before the AGV was placed into trial operation. In service, the connectors have demonstrated stable voltage delivery to the motor controllers and charging circuits, with no intermittent faults reported during the evaluation period. The quick-disconnect feature has also reduced battery replacement time, contributing to higher fleet availability.
