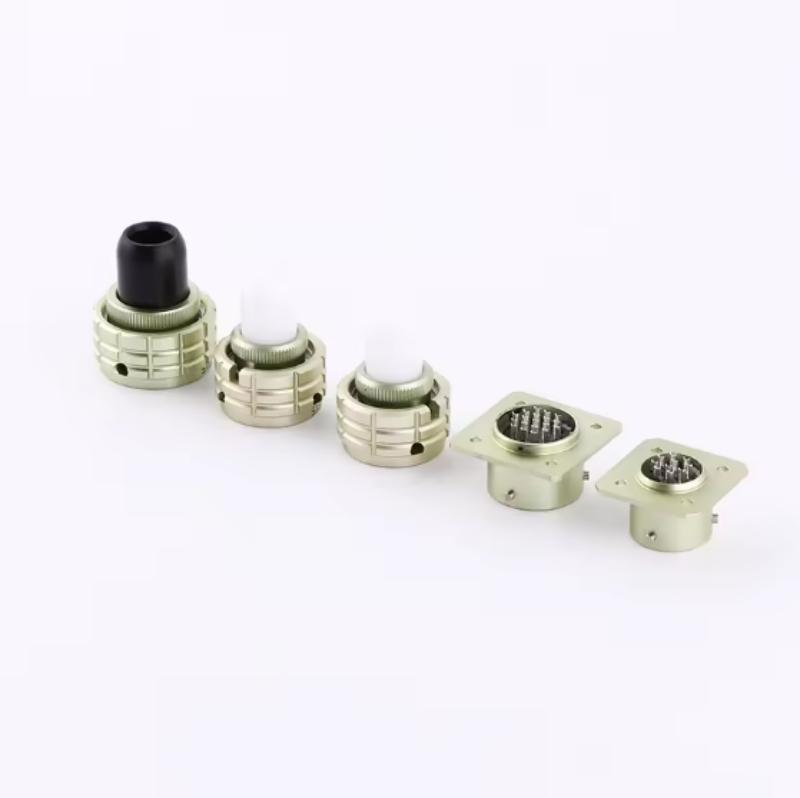

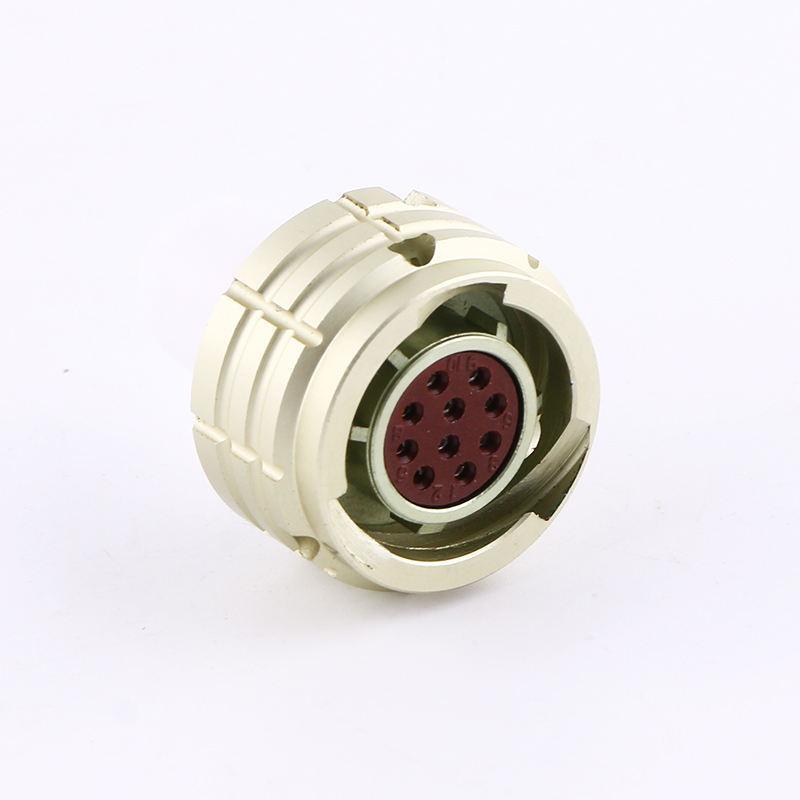

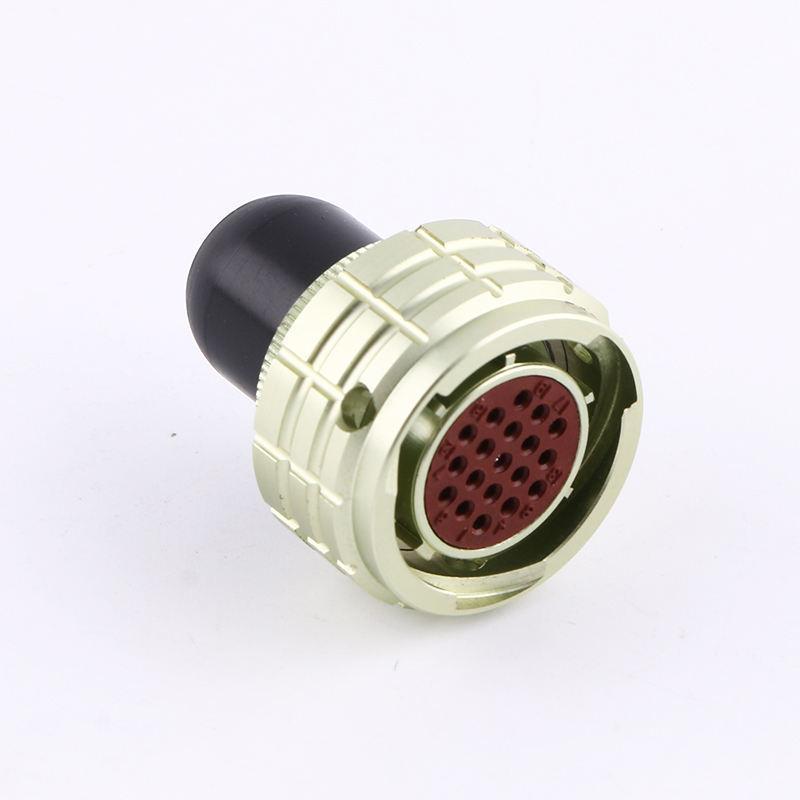

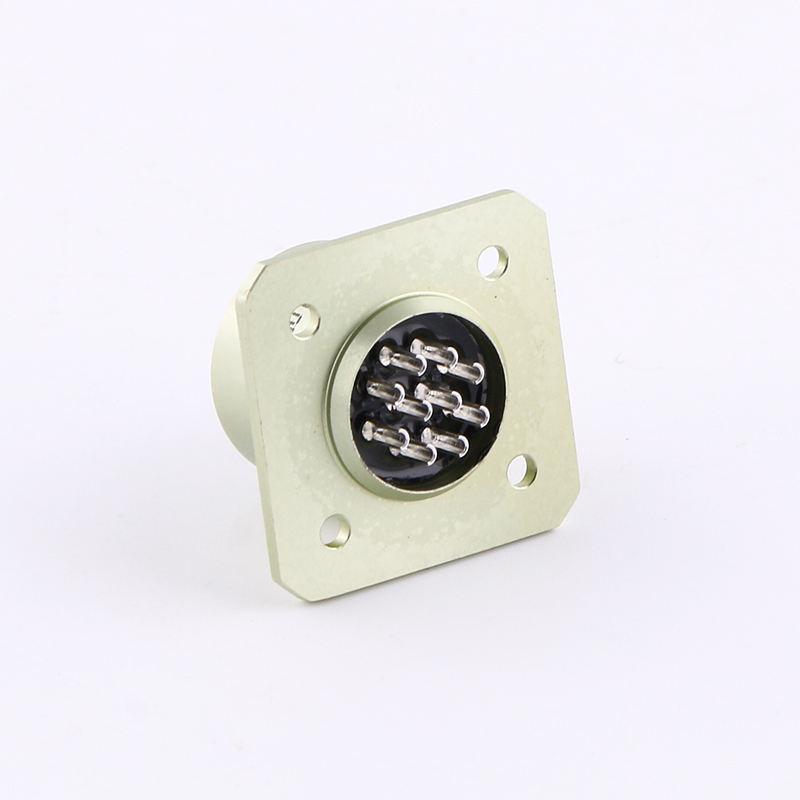

Russian OHS 10 Pin Circular Connector Plug and Socket

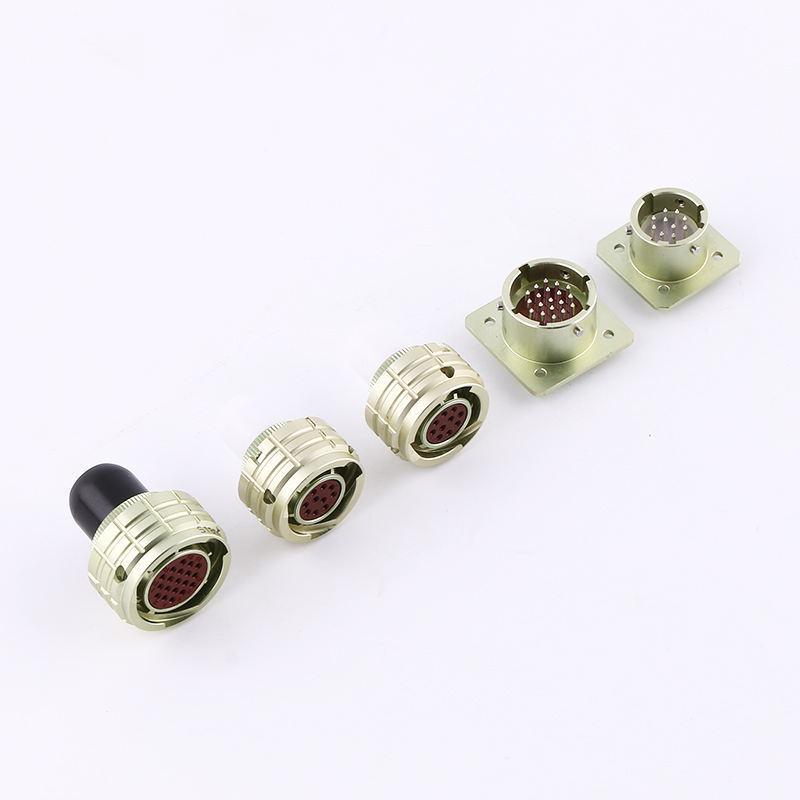

GOST OHS Circular Connector with Multiple Core Count Options

OHS Russian Standard Connector Overview

The OHS 10-pin circular connector is a Russian-standard industrial connector designed for reliable electrical connections in demanding environments. Known for its durable structure and stable performance, the OHS connector series is widely used in industrial machinery, communication systems, and power control equipment.

This connector features a rugged aluminum housing that provides excellent mechanical strength and corrosion resistance. With a secure threaded locking structure and stable contact system, the OHS 10-pin connector ensures safe signal and power transmission even in vibration-prone industrial environments.

Because of its reliability and compatibility with Russian standard equipment, the OHS connector series has become a popular choice for industrial applications that require long-term electrical stability.

Durable Aluminum Housing for Harsh Environments

One of the key advantages of the OHS 10-pin circular connector is its high-strength aluminum shell. Compared with plastic housings, aluminum provides better resistance to impact, pressure, and temperature variations.

The aluminum housing also helps dissipate heat efficiently and protects internal contacts from external mechanical damage. This makes the connector particularly suitable for applications such as industrial automation equipment, transportation systems, and heavy machinery.

Additionally, the corrosion-resistant surface treatment improves durability in humid or outdoor environments.

Reliable Multi-Pin Electrical Connection

The 10-pin contact configuration allows the connector to transmit multiple signals or power lines simultaneously. This design helps simplify wiring structures and improves system integration in complex electrical equipment.

High-quality metal contacts ensure low contact resistance and stable electrical performance. Even after repeated connection cycles, the contacts maintain reliable conductivity, helping reduce signal loss and improve overall system stability.

For industrial users who require dependable signal transmission, the OHS 10-pin connector provides an efficient and long-lasting solution.

Secure Locking Structure for Stable Connection

The connector is designed with a secure threaded locking mechanism that keeps the plug and socket firmly connected during operation. This locking structure prevents accidental disconnection caused by vibration, movement, or mechanical stress.

Such reliability is especially important in industrial environments where machines operate continuously and equipment may experience strong vibration. The stable locking system ensures that electrical connections remain secure and uninterrupted.

Typical Applications of OHS Connectors

Due to its robust design and reliable electrical performance, the OHS Russian standard connector is commonly used in many industrial sectors. Typical applications include:

• Industrial automation equipment
• Power distribution systems
• Communication devices
• Transportation control systems
• Testing and measurement instruments
• Heavy machinery electrical systems

Its compatibility with Russian standard connectors also makes it ideal for equipment exported to Eastern Europe and related industrial markets.

Advantages of Choosing OHS Circular Connectors

Compared with many standard industrial connectors, the OHS series connectors offer several important advantages:

• Strong aluminum housing for mechanical protection
• Reliable multi-pin electrical connection
• Secure locking system for vibration environments
• Stable signal and power transmission
• Compatibility with Russian industrial standards

These features make OHS connectors a dependable choice for engineers and equipment manufacturers who require stable electrical connections in demanding working conditions.

Selection and Inquiry Guidance

When selecting an OHS 10-pin connector for your application, consider the following factors to ensure proper mating and performance:

• Confirm the mating-side connector type (plug or socket) and gender required for your cable or panel assembly.
• Verify the cable outside diameter and conductor size to ensure compatibility with the connector's termination method.
• Specify the electrical load (current and voltage) and environmental conditions, such as temperature range and exposure to moisture or vibration.
• Provide a pinout or wiring diagram if your application requires a specific contact assignment.
• Indicate the required order quantity and any custom marking or packaging needs.

For detailed technical parameters, including contact material, insulation material, and temperature range, please refer to the Technical Specifications section. For more information on the OHS series and other Russian standard connectors, see our GOST OHS Circular Connector with Multiple Core Count Options.

Conclusion

The OHS 10-pin circular connector plug and socket provides a reliable and durable solution for industrial electrical connections. With its aluminum housing, multi-pin design, and secure locking system, it ensures stable signal and power transmission even in harsh environments.

Whether used in industrial machinery, communication systems, or power control equipment, the OHS connector series delivers the durability and performance required for long-term operation. For industries that require dependable Russian-standard connectors, the OHS 10-pin connector remains a practical and proven choice.
