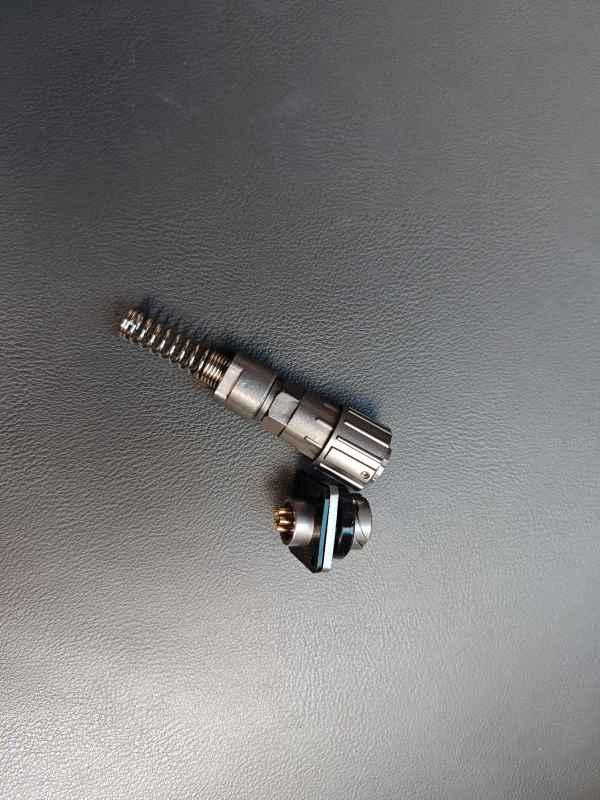

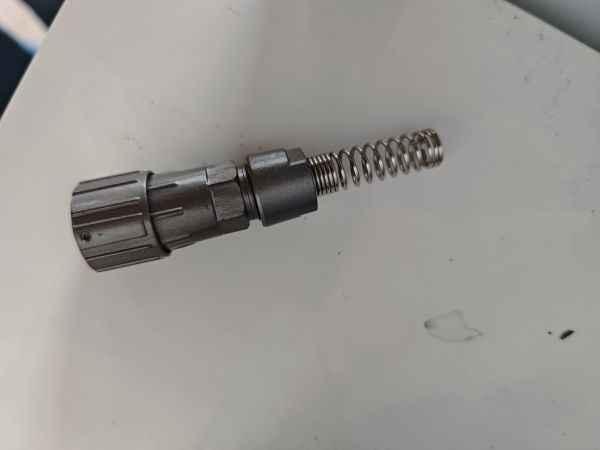

FQ Series Quick-Bayonet Waterproof Connector: Reliable Connection for Industrial & Outdoor Scenarios

Looking for a durable, easy-to-operate connector that can withstand harsh industrial and outdoor environments? The FQ Series Connector is your ideal solution. Designed with quick bayonet locking, IP67 waterproof protection, and wide temperature adaptability, it ensures stable signal and power transmission for a wide range of automated and outdoor equipment.

Core Advantages

Quick & Secure Locking

Adopts quick bayonet locking design, just 1/4 rotation to lock/unlock. Fast mating operation saves time, and the tight locking structure effectively resists vibration and impact, avoiding accidental disconnection.

IP67 Waterproof & Dustproof

Excellent sealing performance, capable of being immersed in 1m deep water for 30 minutes without water ingress. Fully protects internal components from dust, moisture, and other contaminants, suitable for harsh outdoor and industrial wet environments.

Wide Temperature Adaptability

Works stably in the temperature range of -55℃ to 85℃. Resists extreme cold and high temperature, ensuring reliable performance in severe weather conditions such as cold winter and hot summer.

Superior Transmission Performance

Low contact resistance (≤10mΩ) and high insulation resistance (≥1000MΩ) guarantee stable signal and power transmission, reducing signal loss and power consumption. Rated voltage up to 400V and rated current up to 10A, meeting diverse power and signal requirements.

Flexible Specifications & Easy Installation

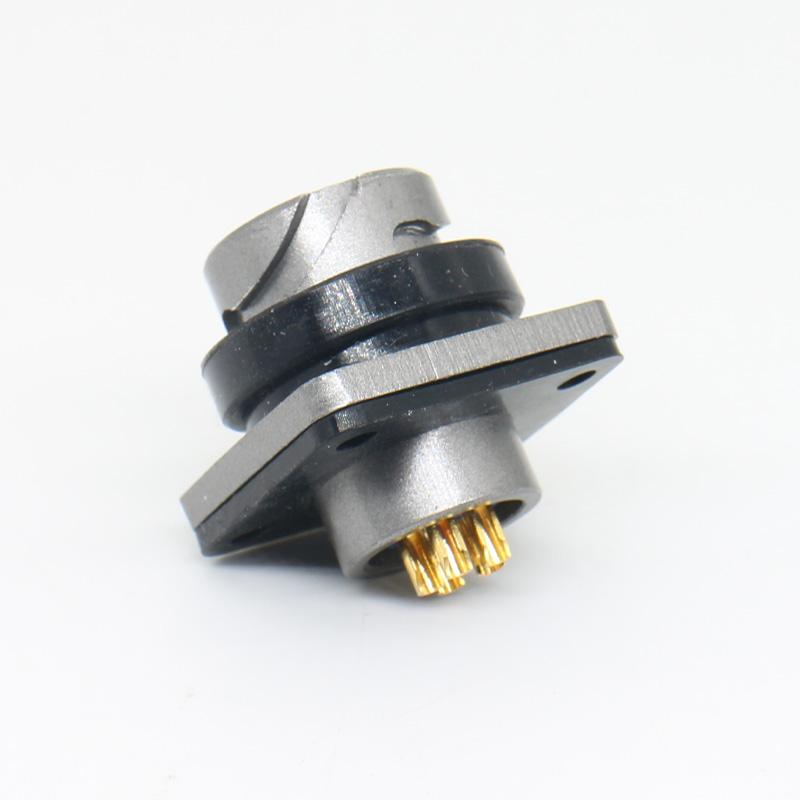

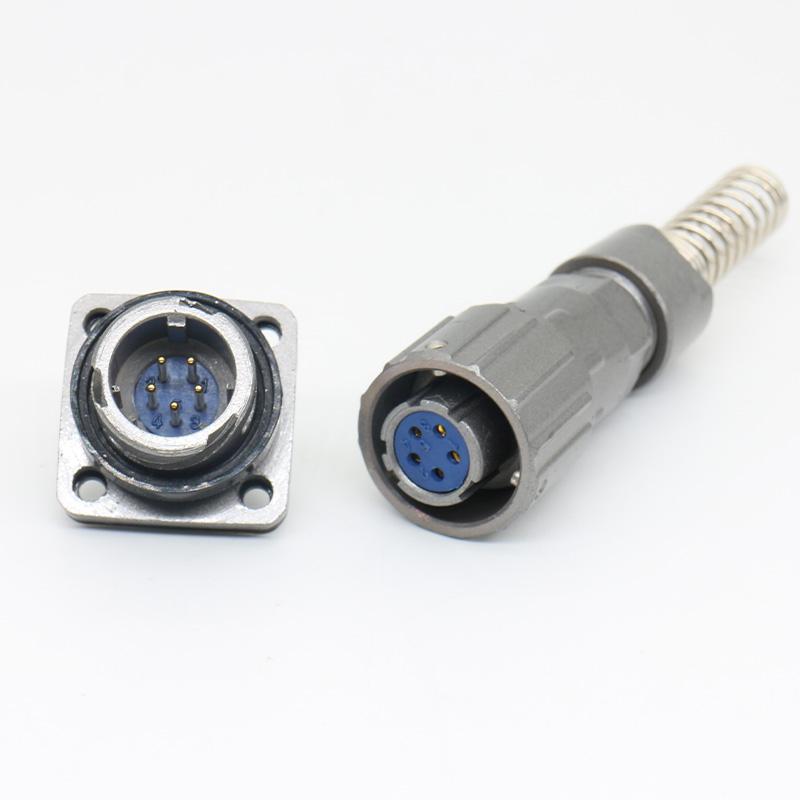

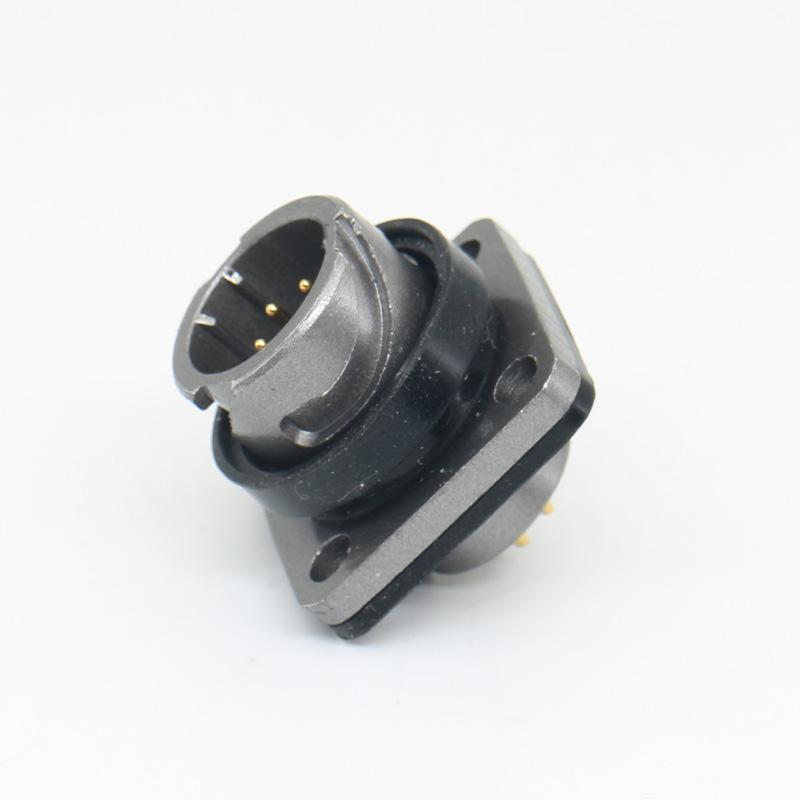

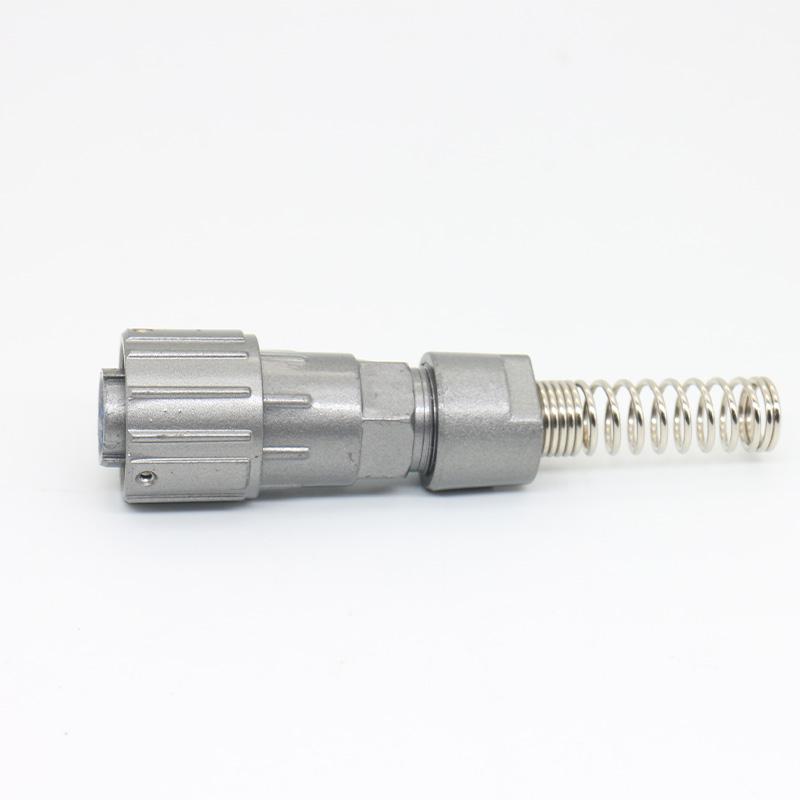

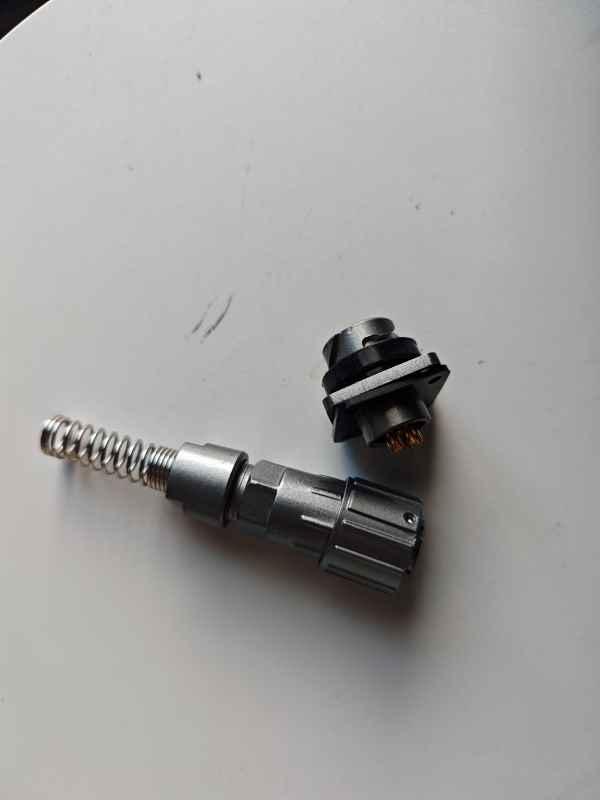

Multiple models available (e.g., FQ14, FQ18, FQ24, FQ30) with diverse pin options (2 to 26 pins) to match different equipment needs. Square flange mounting design enables simple and convenient installation, suitable for integration into various automated equipment and outdoor devices.

Main Application Scenarios

• Industrial Automation Equipment: Suitable for control systems, sensors, actuators, etc.
• Outdoor Equipment: Applicable to outdoor monitoring devices, small-scale outdoor sensors, etc.
• Construction Machinery & Off-Road Equipment: Adapts to harsh working environments with heavy dust, muddy water and frequent vibrations (e.g., excavators, loaders).

Selection Considerations

When selecting an FQ Series connector, verify the required pin count, gender (male or female), and mounting style against your equipment's interface. Confirm the cable outside diameter and conductor size to ensure proper termination and sealing. For applications with specific environmental demands, review the IP rating and temperature range against your operating conditions.

Installation & Mating Guidance

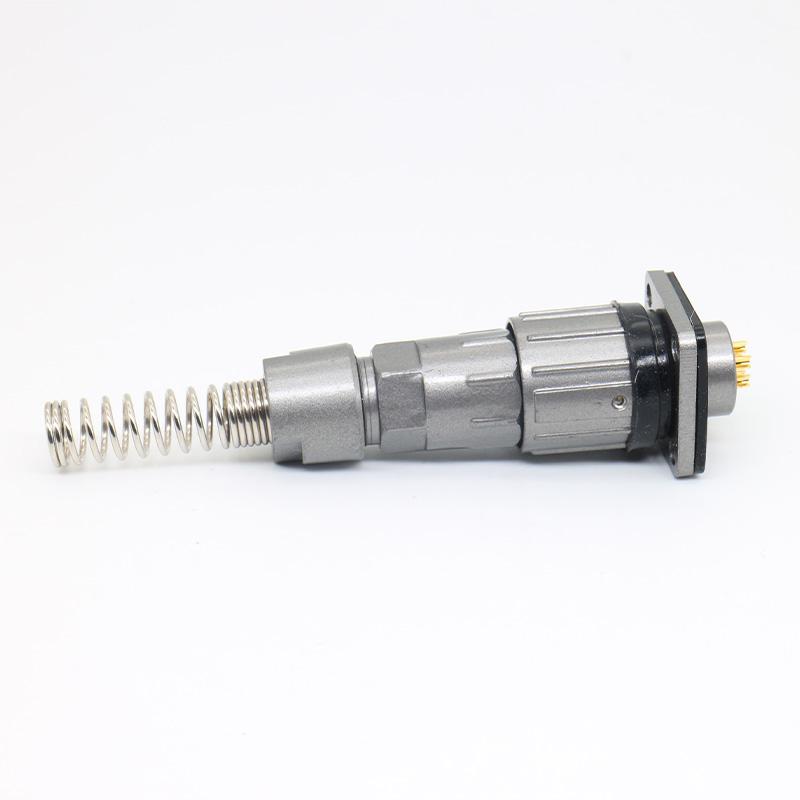

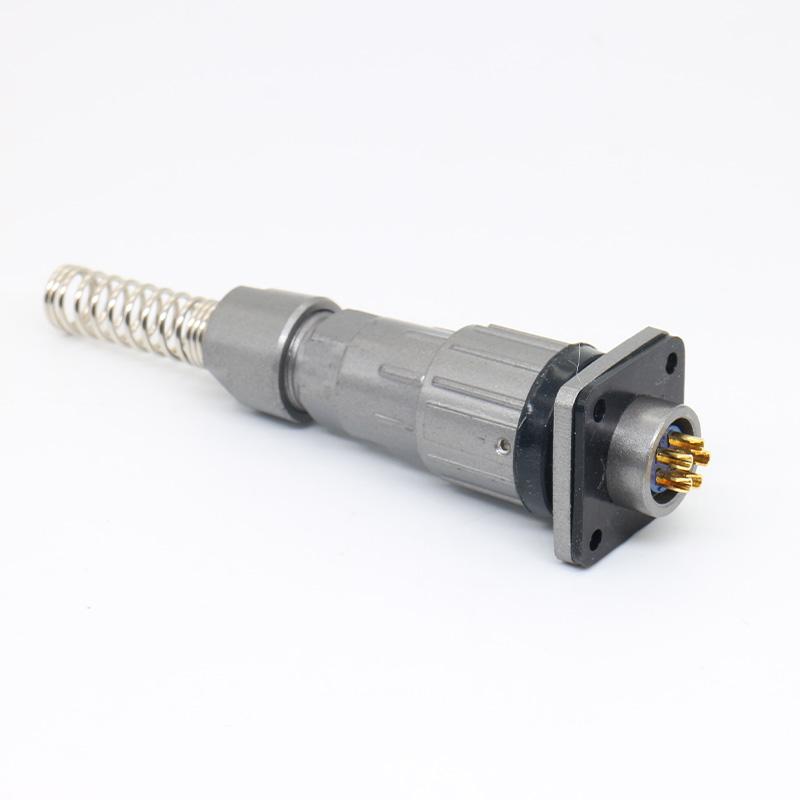

Ensure the mating halves are aligned correctly before engaging the bayonet lock. A quarter-turn clockwise locks the connector; verify the lock is fully engaged to maintain the IP67 seal. For panel mount versions, confirm the panel cutout dimensions and mounting hole spacing before installation.

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please provide the following details:

• Required model (FQ14, FQ18, FQ24, FQ30) and pin count
• Gender (plug or socket) and mounting style (panel or cable)
• Cable outside diameter and conductor size
• Electrical load (voltage and current)
• Operating environment and temperature range
• Order quantity
