Heavy-Duty Circular Connectors in Energy Storage Systems in the United States

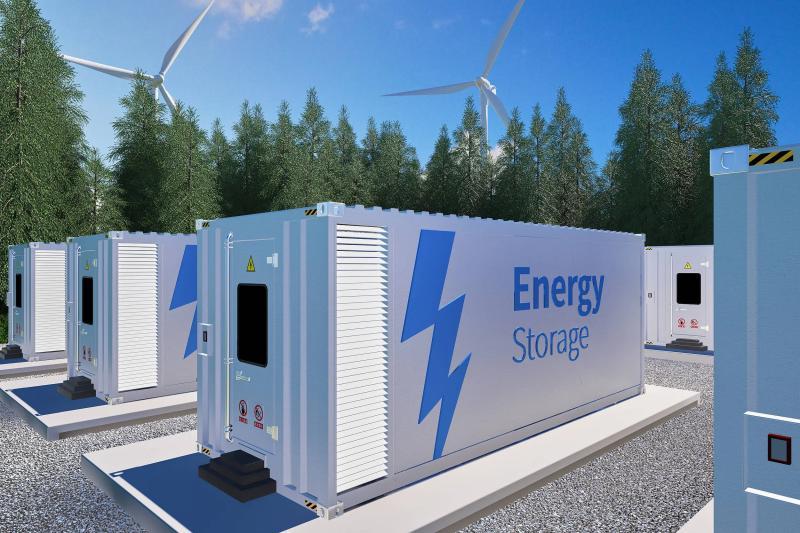

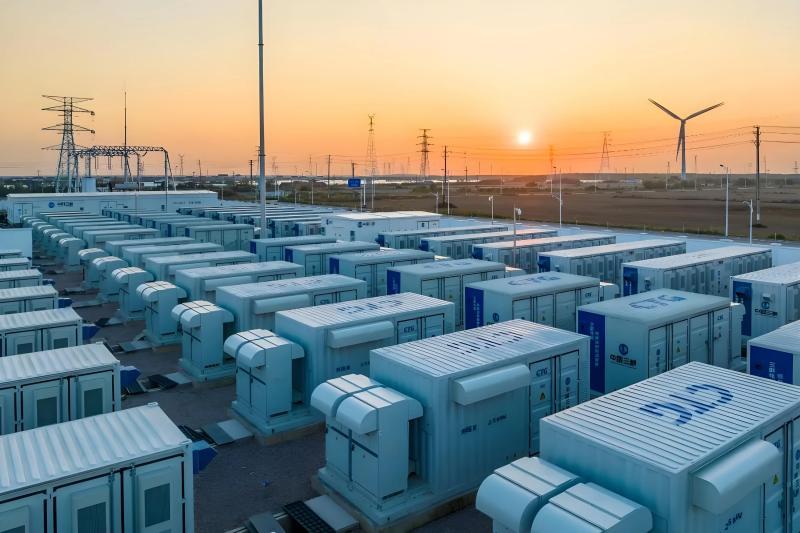

Energy storage systems, including lithium-ion battery banks, are increasingly deployed across the United States to store renewable energy for industrial and residential applications. Safe and reliable power distribution within these systems is essential for operational continuity and safety. This case outlines how heavy-duty circular connectors support high-current DC connections in such installations.

Project Background and Industry Context

As renewable energy adoption grows in the U.S., energy storage systems must handle higher power loads while maintaining safety and uptime. System integrators and facility operators require interconnect solutions that can manage significant DC currents, withstand thermal cycling, and remain serviceable over the system's lifetime. The connectors selected for these applications must support both initial installation and future maintenance or expansion.

Connector Application and Requirements

Heavy-duty circular connectors are used to interconnect battery modules and control units within the energy storage system. Typical applications include:

• High-current DC connections between battery modules
• Interfaces between battery management systems and power modules
• Modular connections for maintenance or expansion

For this project, the electrical load requirements included continuous DC current ratings suitable for the battery bank configuration, with secure locking to prevent accidental disconnection during operation or vibration. The connectors also needed to accommodate the cable sizes specified by the system designer.

Design Characteristics and Environmental Fit

The selected heavy-duty circular connectors support high current capacity and provide secure locking mechanisms. They offer environmental protection against dust and moisture, which is important for installations in partially protected enclosures. While energy storage systems may be installed indoors or in sheltered areas, the connectors must still resist vibration and thermal cycles generated by charging and discharging operations.

Selection Considerations

When evaluating connectors for this type of application, engineers should verify the following parameters against their system requirements:

• Current rating and voltage rating for the specific DC bus configuration
• Contact resistance and temperature rise under continuous load
• Mating cycles and locking mechanism durability for maintenance access
• IP rating and suitability for the intended enclosure environment
• Cable range compatibility with the specified wire gauge

For related interconnect options, the Aviation Plug Connectors series offers additional circular interface choices, and the LD20/SP20 Heavy-Duty Square Connector provides an alternative form factor for high-power applications.

Conclusion

Heavy-duty circular connectors provide a practical and reliable solution for high-current connections in energy storage systems. Their combination of current capacity, secure mating, and environmental resistance makes them suitable for the demanding conditions of battery-based power installations.

For detailed specifications or to discuss your specific energy storage interconnect requirements, please contact our engineering team through the inquiry form.
