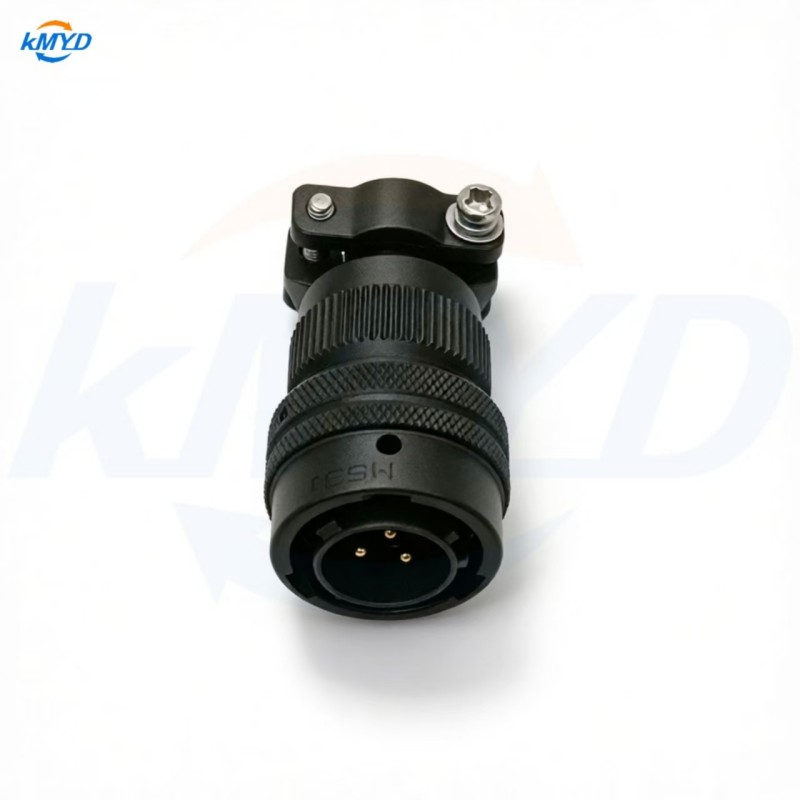

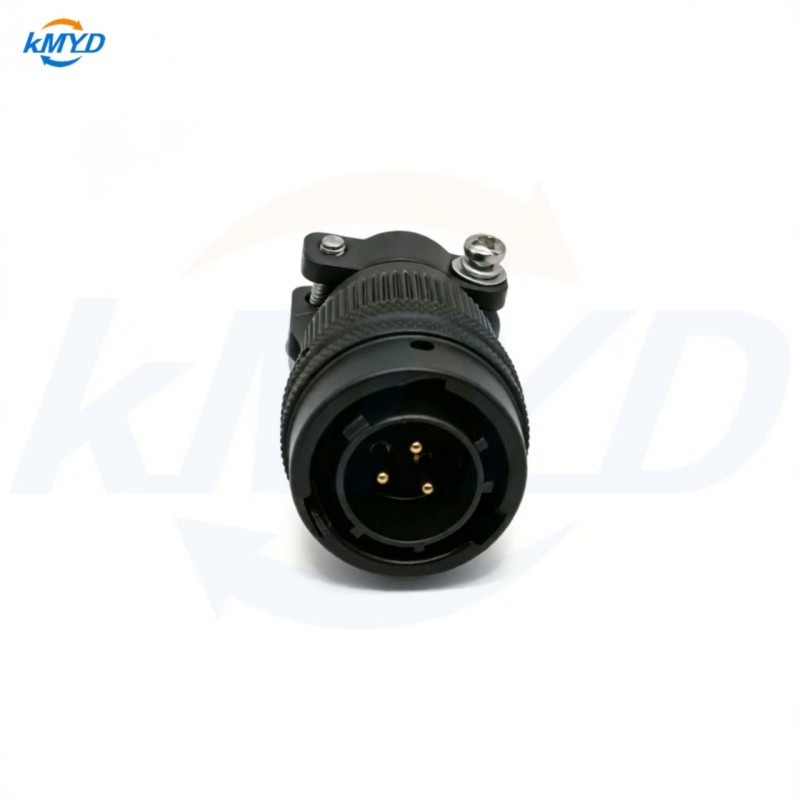

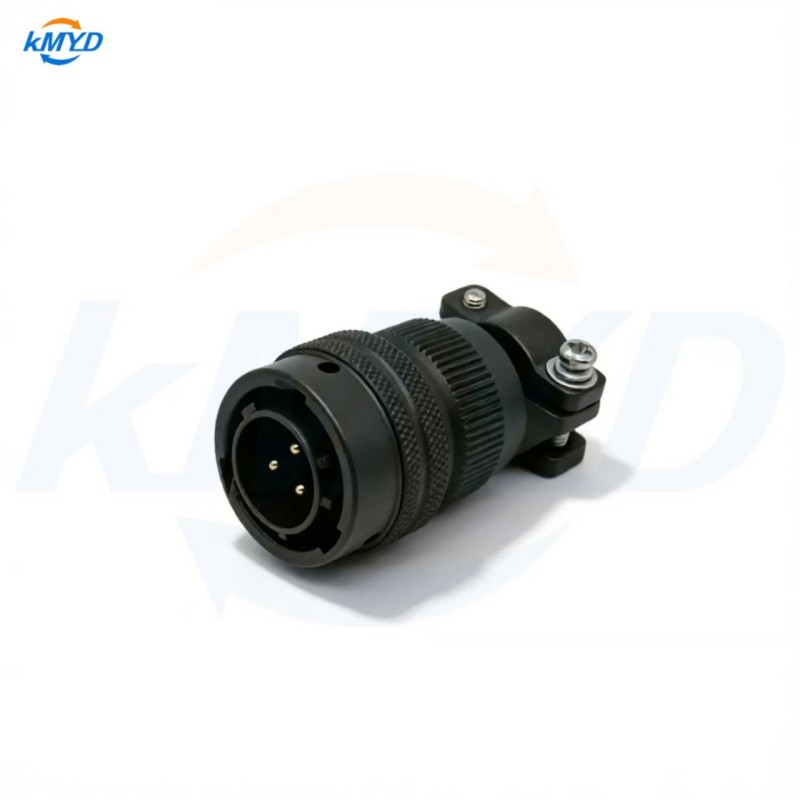

MS3116F-12-3P/PT06E123PSR 3 Pin MIL-DTL-26482 Military Circular Connector

MS3116F-12-3P/PT06E123PSR 3 Pin MIL-DTL-26482 Military Circular Connector

The MS3116F-12-3P/PT06E123PSR is a 3-pin military circular connector built to the MIL-DTL-26482 Series I standard. It delivers stable electrical performance, secure mating, and dependable durability for aerospace, defense, industrial, and other demanding electronic systems where reliable connectivity is non-negotiable.

Why Choose the MS3116F-12-3P/PT06E123PSR?

This connector is engineered for applications that require a compact, rugged interconnection solution. Its 3-pin layout supports both power and signal transmission, while the circular shell protects internal contacts and maintains consistent electrical integrity over extended service life.

• MIL-DTL-26482 Series I compliance – Designed for high-reliability connection applications.
• 3-pin contact configuration – Supports stable power and signal transmission in a compact footprint.
• Pin contact structure – Provides reliable electrical contact performance.
• Bayonet locking system – Ensures fast, secure mating and resists vibration-induced disconnection.
• Rugged circular housing – Suitable for vibration, shock, and harsh environmental conditions.

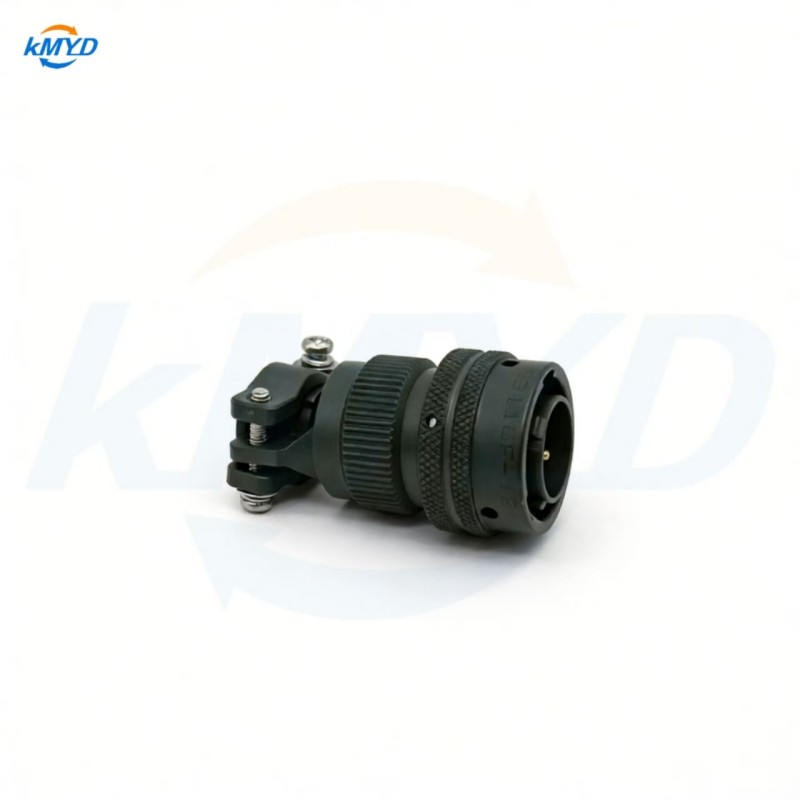

Bayonet Coupling for Secure, Rapid Mating

The bayonet coupling mechanism enables quick connection with a positive lock, improving resistance to vibration and mechanical shock. This makes the MS3116F-12-3P/PT06E123PSR well suited for equipment that undergoes frequent connection cycles and demands dependable operation in the field.

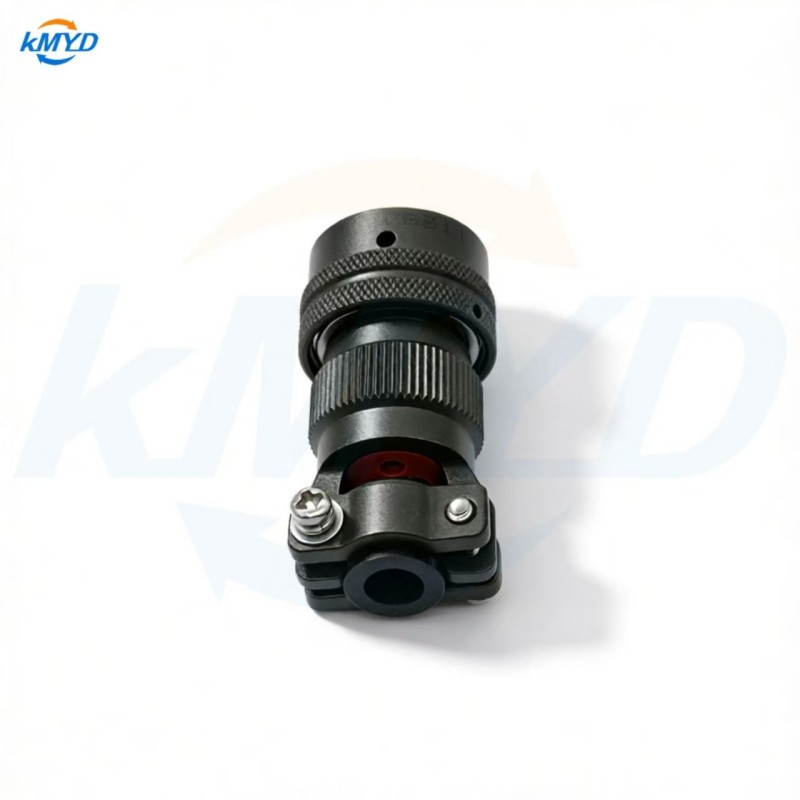

Typical Applications

• Aerospace electronics
• Military equipment
• UAV and drone systems
• Radar and communication systems
• Industrial control equipment
• Test and measurement devices

Manufacturing and Quality Assurance

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer specializing in high-reliability connection solutions. With more than 15 years of experience, Meiyadi integrates connector R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection to provide complete manufacturing capabilities from product development to mass production.

The factory supports customized military-style connectors and cable assemblies with flexible options for contact configuration, cable specifications, connector accessories, and application requirements. Through strict quality management, professional testing processes, and experienced engineering support, Meiyadi delivers reliable connection solutions for aerospace, industrial automation, electronics, communication, and specialized equipment applications.

Ordering and Customization Information

To ensure correct mating and configuration, please provide the following details when inquiring:

• Mating connector part number or interface requirement
• Pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and temperature range
• Required order quantity

Custom cable assemblies, wiring configurations, and connector options can be supplied according to different application requirements. Contact our engineering team to discuss your specific needs.
