MIL-Spec Connectors

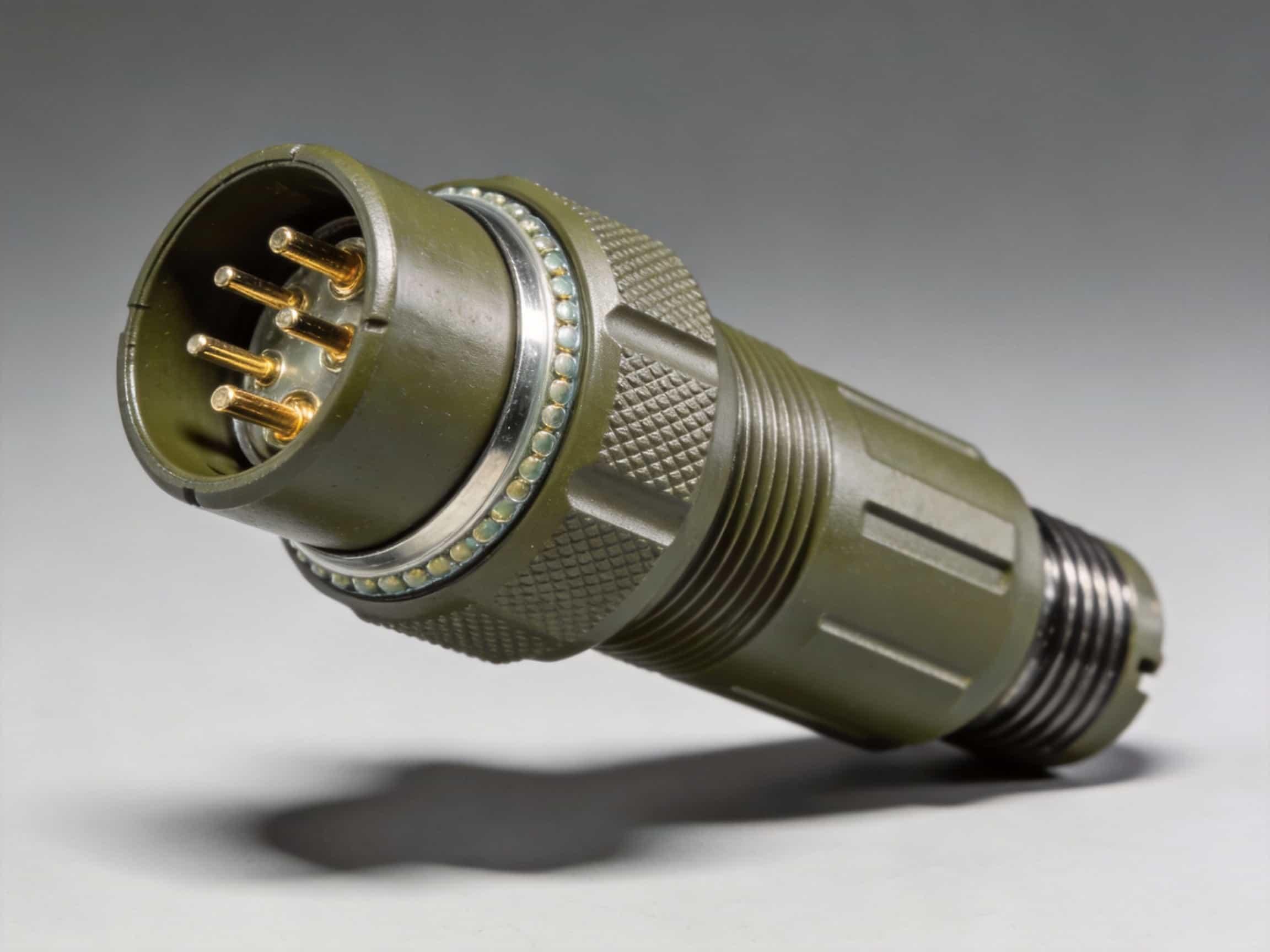

MIL-DTL-38999 Connectors in Downhole Tools in USA

Oil and gas drilling operations in the United States, particularly in shale formations like the Permian Basin and Eagle Ford, demand components that can survive extreme downhole environments. Temperatures can exceed 200°C (392°F), pressures may reach 20,000 psi, and tools endure continuous vibration from drilling operations. MIL-DTL-38999 connectors, originally designed for aerospace applications, provide the necessary reliability for these critical downhole tools.

Measurement-While-Drilling Applications

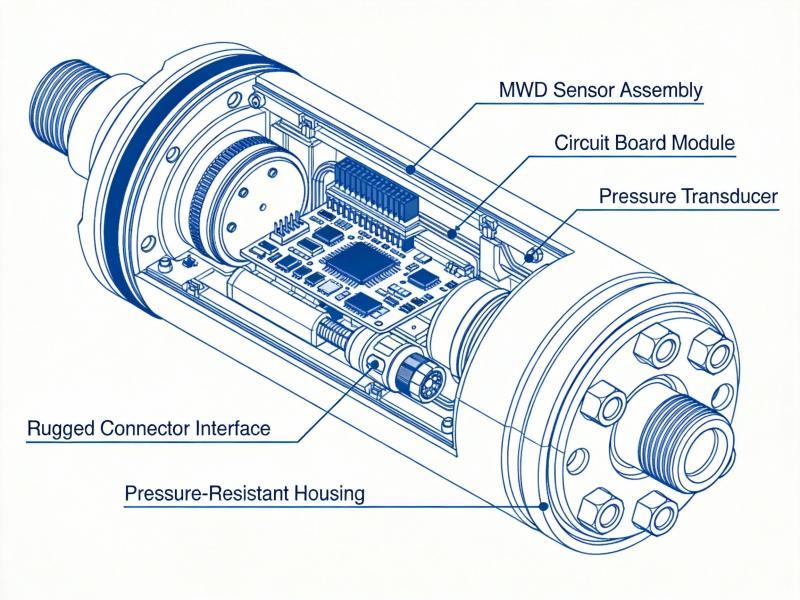

MWD tools require robust electrical connections to transmit real-time drilling data from the bottom-hole assembly to the surface. These tools continuously measure wellbore inclination, azimuth, and formation properties, enabling precise directional drilling.


Logging-While-Drilling Sensor Connections
Logging-While-Drilling tools incorporate gamma ray sensors, resistivity measurements, and formation evaluation instruments that require multiple signal channels. MIL-DTL-38999 Series III connectors with 21 to 37 contacts provide the necessary pin density while maintaining hermetic sealing.


Technical Specifications and Standards
Downhole MIL-SPEC connectors must comply with additional testing beyond standard military specifications:
Temperature Cycle: MIL-STD-202 Method 107 with extended range (-65°C to +260°C)
Vibration: MIL-STD-202 Method 214, Condition D, 20G RMS, 50-2000 Hz
Shock: MIL-STD-202 Method 213, 1000G, 11 ms half-sine
Pressure Resistance: Must withstand external pressures up to 20,000 psi without degradation

Materials selection differs from typical aerospace applications. Nickel alloys and Inconel replace aluminum for superior corrosion resistance against hydrogen sulfide (H₂S) environments. PTFE (Teflon) and glass-reinforced PEEK provide insulation with high dielectric strength at elevated temperatures.

Parameter

MIL-DTL-38999 Downhole

Commercial IP68

Temperature Range

-55°C to +260°C

-40°C to +125°C

Pressure Rating

20,000 psi

3,000 psi

Vibration Resistance

20G RMS

10G RMS

Connector Life Cycles

500+ mating cycles

100+ mating cycles

Shell Material

Inconel 625/Stainless Steel 316L

Aluminum/Brass


The adoption of MIL-DTL-38999 and related MIL-SPEC connectors in downhole drilling tools represents a practical application of military-grade technology in the energy sector. Their proven performance under extreme conditions—high temperature, pressure, vibration, and corrosive environments—makes them essential components in modern directional drilling operations across U.S. oilfields. The combination of standardized design, rigorous testing requirements, and field-proven reliability positions these connectors as the preferred choice for critical downhole applications.
