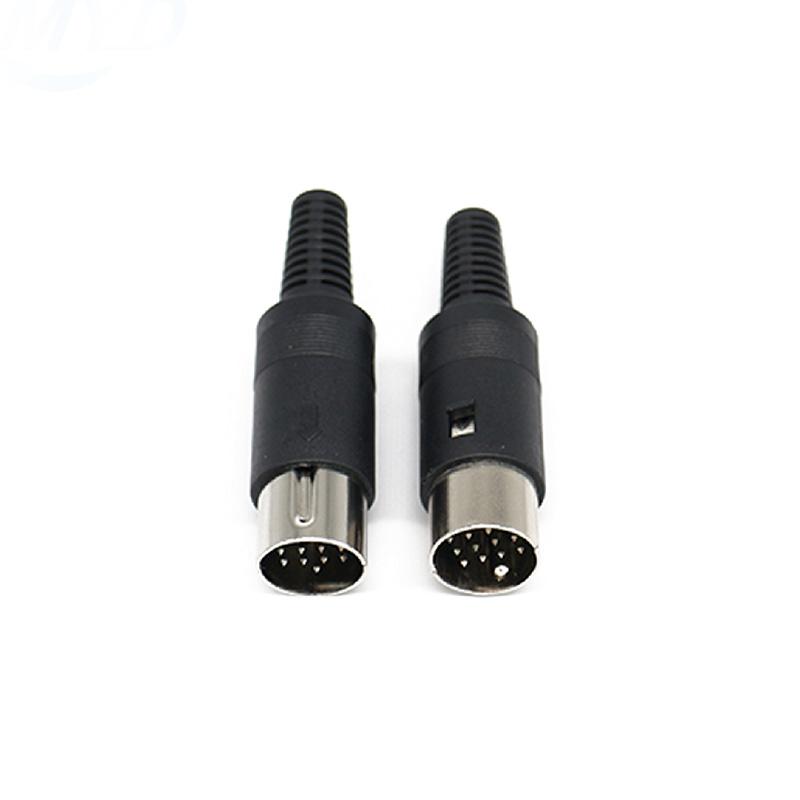

Mini DIN Connector Selection Guide for Compact Signal and Data Interfaces

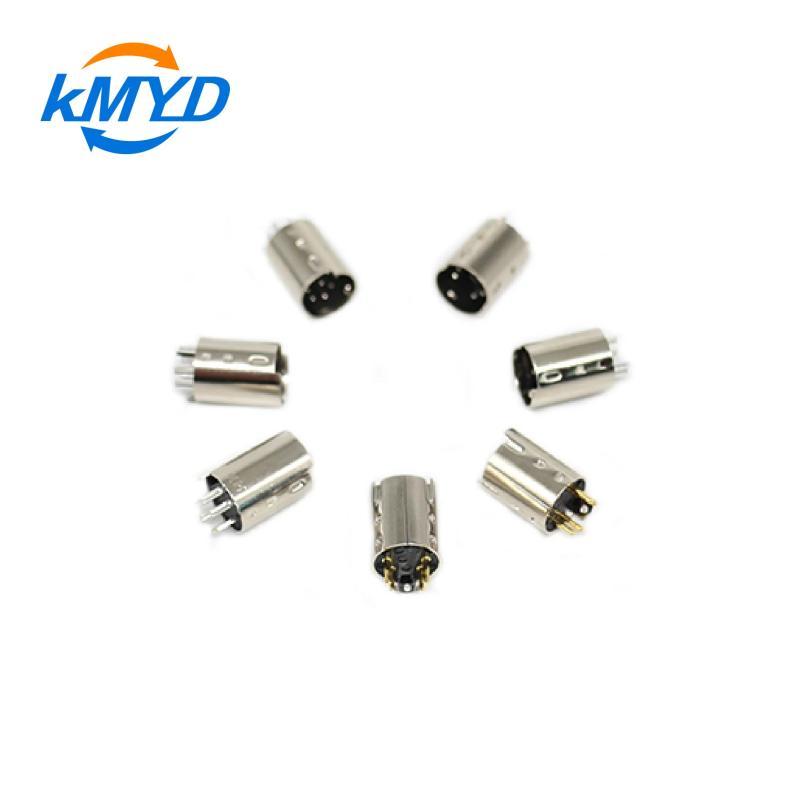

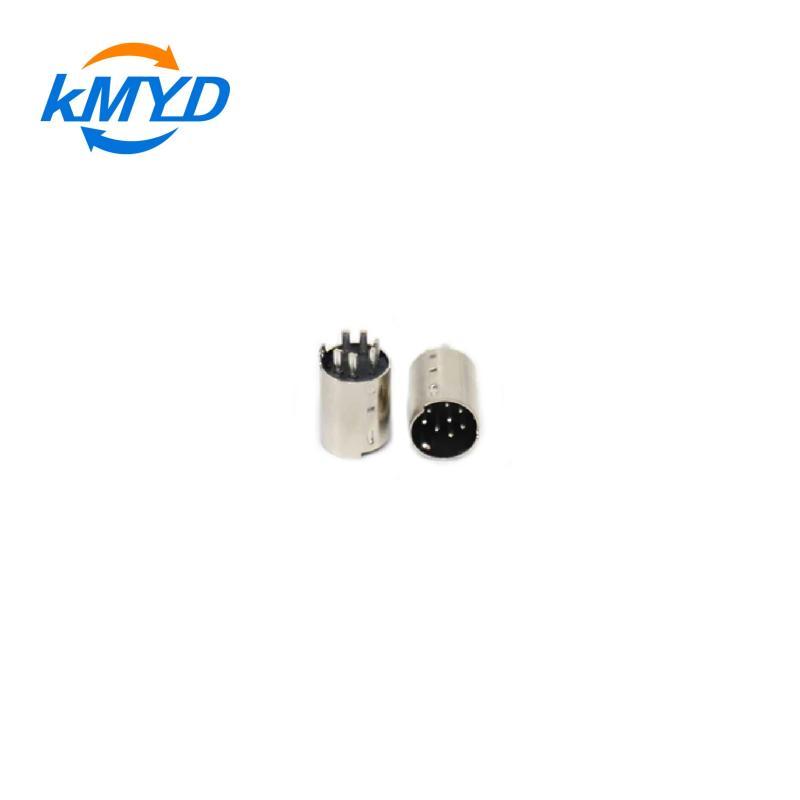

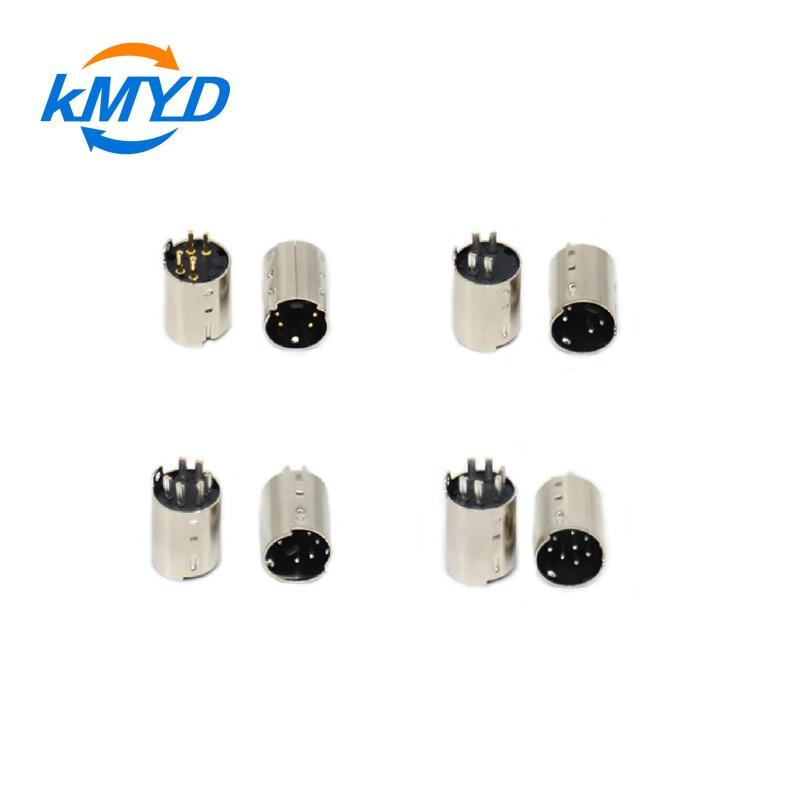

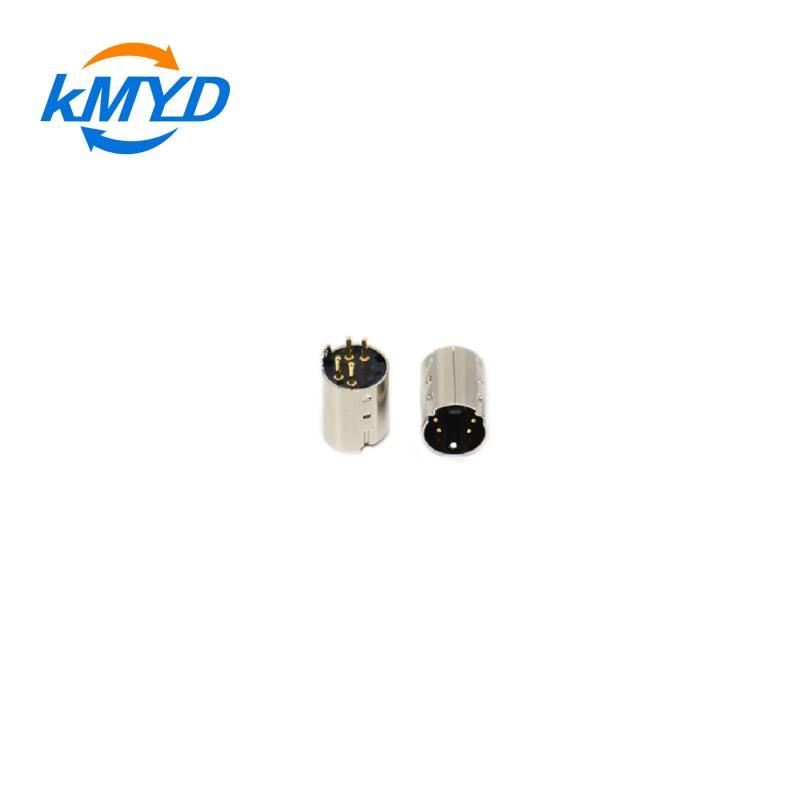

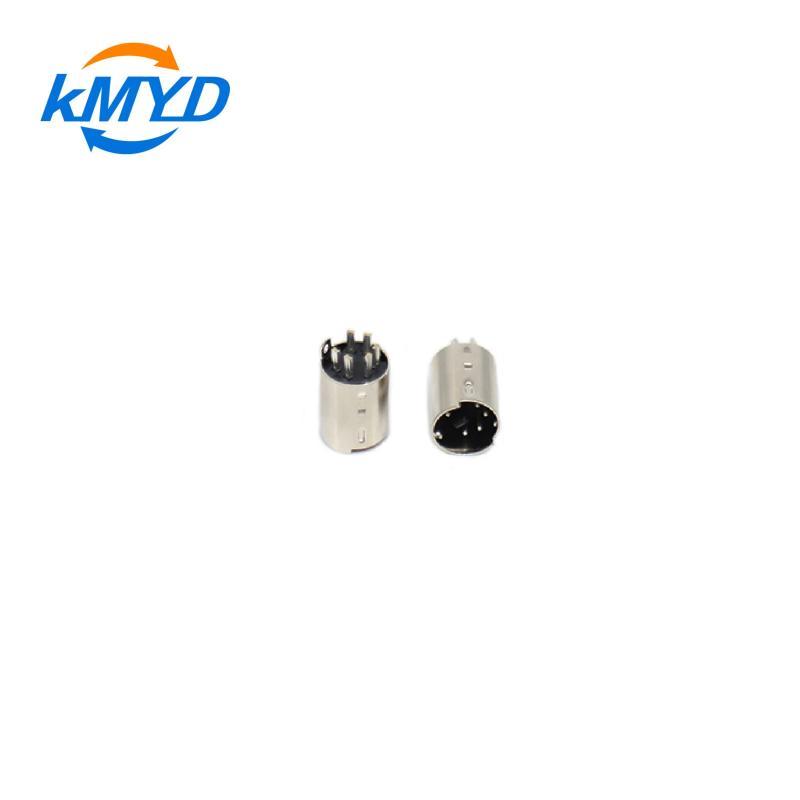

Mini DIN connectors provide a compact circular interface for electronic equipment that needs reliable signal and data connectivity in limited installation space. This guide helps engineers and procurement teams evaluate pin configuration, mechanical construction, electrical performance, and application fit before selecting a Mini DIN connector for their project.

Key Selection Criteria for Mini DIN Connectors

When choosing a Mini DIN connector, consider these decision points to match the interface to your application requirements:

• Pin count and configuration: Available in 2 to 14 pin arrangements to support data, audio, control, and mixed-signal transmission.
• Gender and mating style: Male and female versions with a circular guide structure that helps prevent incorrect insertion during assembly.
• Housing and contact materials: Nickel-plated brass housing and contacts provide mechanical strength and consistent conductivity.
• Application environment: Confirm whether the device operates in vibration-prone, high-density, or commercial-grade environments before finalizing the connector.

Construction and Mechanical Reliability

The metal housing of a Mini DIN connector protects internal contacts from physical damage during repeated plugging and unplugging cycles. This robust structure also provides electromagnetic shielding, which helps minimize signal interference in systems where multiple electronic components operate in close proximity. The circular mating design guides the connector into position, reducing the risk of incorrect mating and supporting stable connections in equipment that experiences vibration or frequent use.

Electrical Performance Considerations

Mini DIN connectors are engineered to maintain consistent conductivity and minimize signal loss across their rated operating range. The internal contact structure supports stable signal transmission for data, audio, and control signals. Key electrical characteristics include stable signal transmission, reliable contact performance, low contact resistance, and consistent electrical connection. For specific current, voltage, and insulation values, refer to the Technical Specifications section.

Suitable and Unsuitable Applications

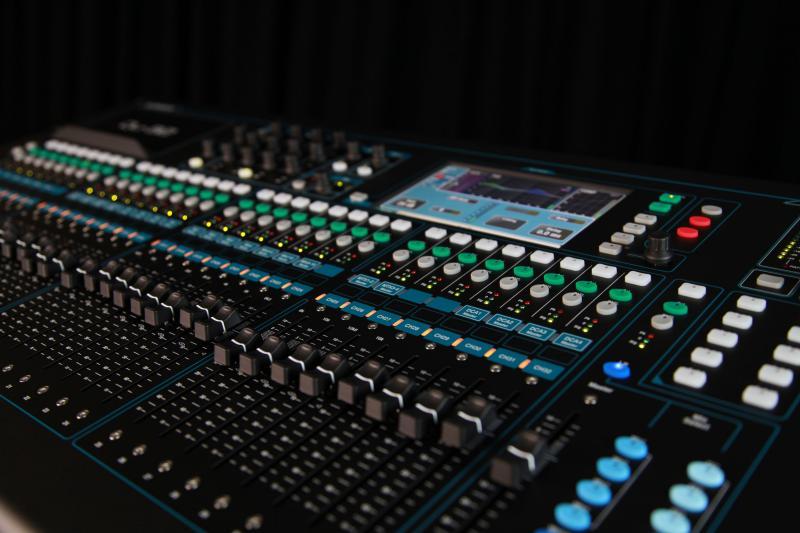

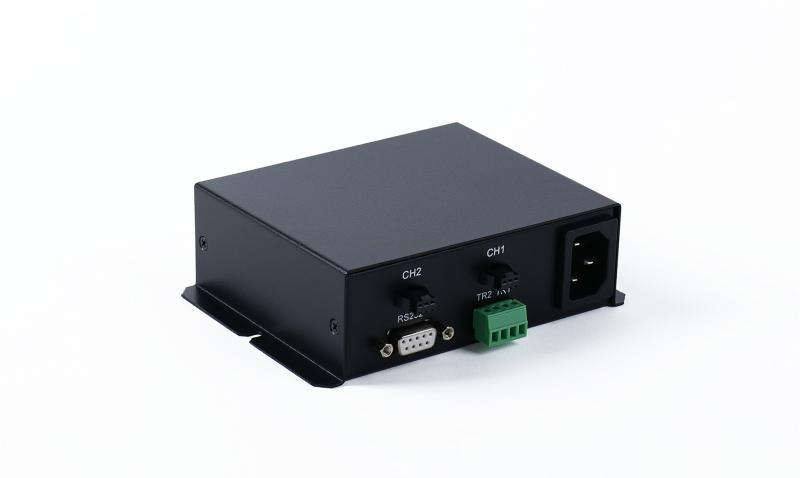

Mini DIN connectors are well suited for industrial control systems, communication devices, audio and video equipment, instrumentation systems, medical electronics, signal transmission equipment, and compact data interface systems. They are not designed for high-power applications, outdoor installations requiring waterproof sealing, or environments with extreme temperature or chemical exposure unless explicitly confirmed with the manufacturer.

Quality Control and Manufacturing Standards

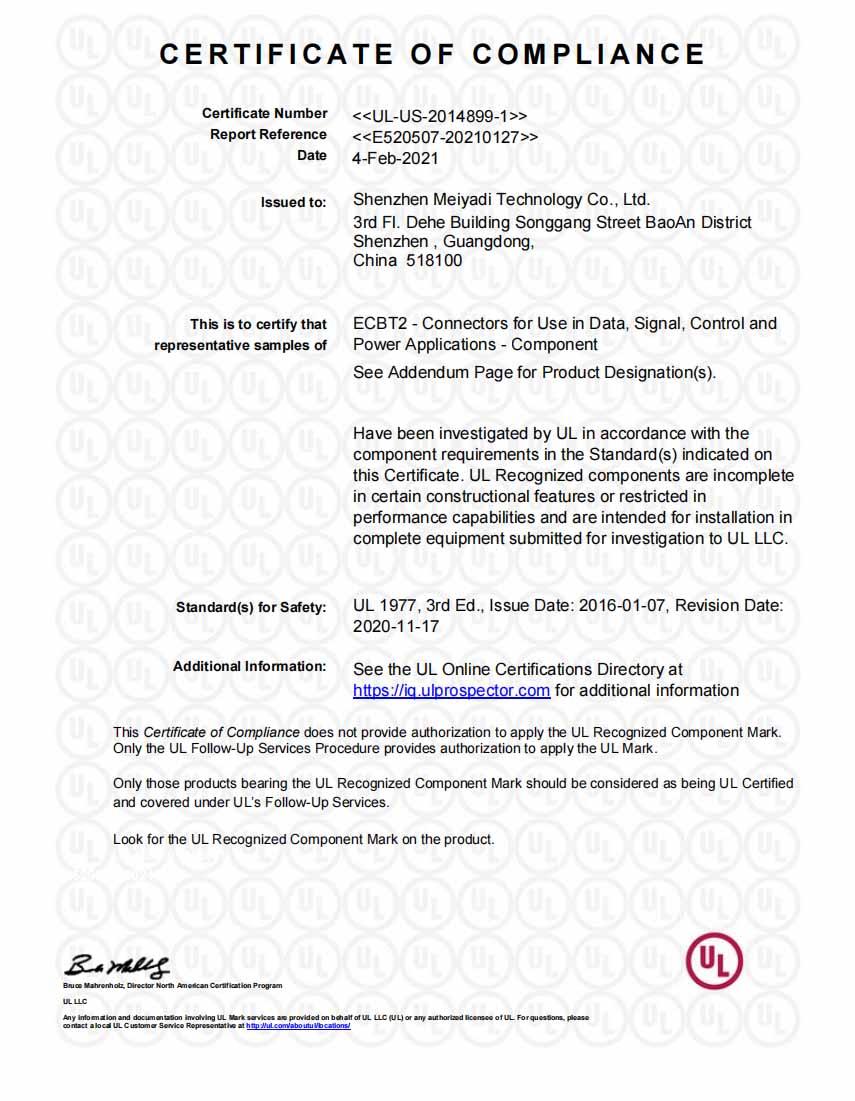

Our Mini DIN connectors are produced under UL-certified manufacturing standards, reflecting stable material quality, reliable insulation performance, and safer electrical design standards. Each connector undergoes multiple inspection procedures, including contact conductivity testing, insulation resistance testing, plugging lifespan testing, dimensional accuracy inspection, and environmental reliability evaluation. These checks help ensure consistent performance across commercial and industrial applications.

OEM and ODM Customization Options

Customized solutions are available for projects that require specific configuration changes. Supported modifications include pin configuration changes, cable assembly integration, connector housing customization, logo printing and branding, and packaging customization. Our engineering team supports projects from prototype development through mass production.

Inquiry Checklist for Mini DIN Connector Orders

To receive an accurate quotation and technical recommendation, please provide the following information when contacting us:

• Required pin count and pinout or wiring diagram
• Male or female connector and mating-side requirement
• Cable outside diameter and conductor size if cable assembly is needed
• Electrical load (current and voltage) and signal type
• Operating environment and any specific compliance requirements
• Estimated order quantity and target delivery timeline

Contact us today for professional Mini DIN connector solutions for your signal and data connectivity applications. For related circular connector options, see the DIN Series Circular Connectors 2-14 Pin Screw Locking Industrial Interface or review the SD20/SP20 Square Flange Connector Design and Installation Guide for alternative mounting configurations.
