SF16 Circular Connectors for Test Equipment in Australia

Din Circular Connector

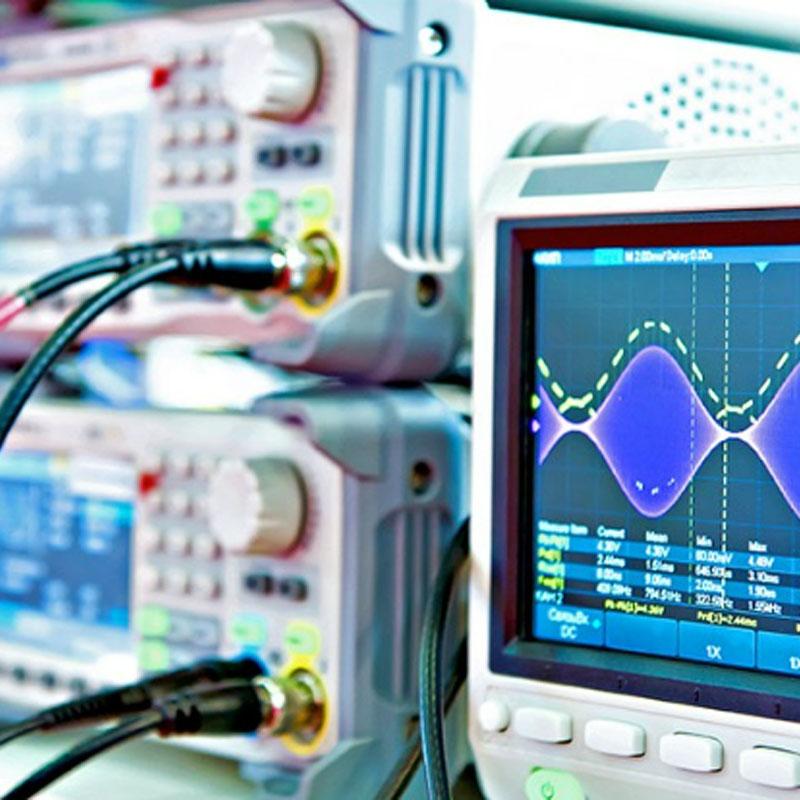

Project Background: Electronic Test Equipment in Australia

An electronics manufacturer in Australia integrated KMYD SF16 circular connectors into their electronic testing and measurement equipment. The connectors were primarily used for power and signal transmission between control modules and measurement devices, where precision and reliability are critical for accurate testing.

Interface and Environmental Requirements

The customer required connectors that could:

• Maintain stable electrical connections during repeated testing cycles
• Withstand mechanical stress from frequent plug/unplug operations
• Ensure reliable signal transmission for sensitive electronic measurements

After evaluating several options, the customer selected SF16 connectors for their robust mechanical design, secure threaded locking, and reliable electrical contacts, making them ideal for industrial test equipment.

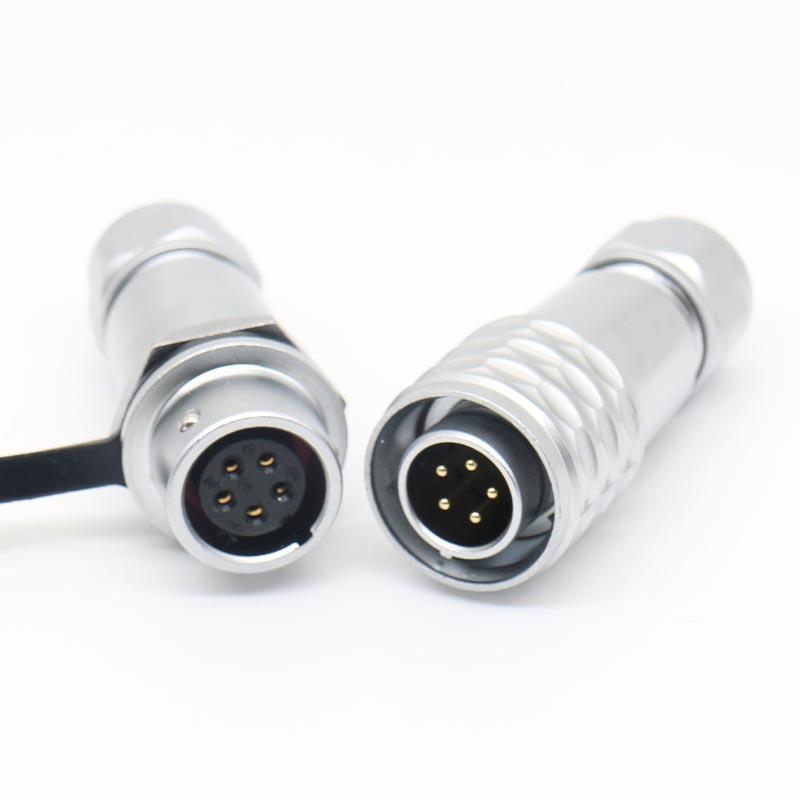

Connector Solution: SF16 Circular Connectors

The SF16 series was chosen for its balanced combination of electrical performance and mechanical durability. Key features that matched the application included:

• Stable power and signal transmission during extended testing
• Threaded locking to prevent accidental disconnection
• Durable construction suitable for high-frequency usage
• Easy assembly and maintenance for laboratory and engineering staff

Commissioning and Delivery Process

The connectors were supplied with standard documentation to support integration into the customer's test equipment assembly line. The straightforward assembly process allowed engineering staff to install and terminate the connectors without specialized tooling, reducing setup time during the commissioning phase.

Verified Results

The customer reported that SF16 connectors enhanced the reliability and accuracy of their test equipment, improving overall productivity and reducing downtime. The secure threaded coupling and consistent contact performance contributed to fewer interruptions during long-duration test sequences.

Why SF16 Was Chosen

• Reliable electrical contacts for precise measurement
• Durable and compact design for industrial test systems
• Secure mechanical locking prevents loosening
• Suitable for both power and signal transmission

For related connector options, see the Aviation Plug Connectors range or review the Din Circular Connector catalog for alternative configurations.
