SF12 Circular Connectors for Laboratory Instruments in Switzerland

Din Circular Connector

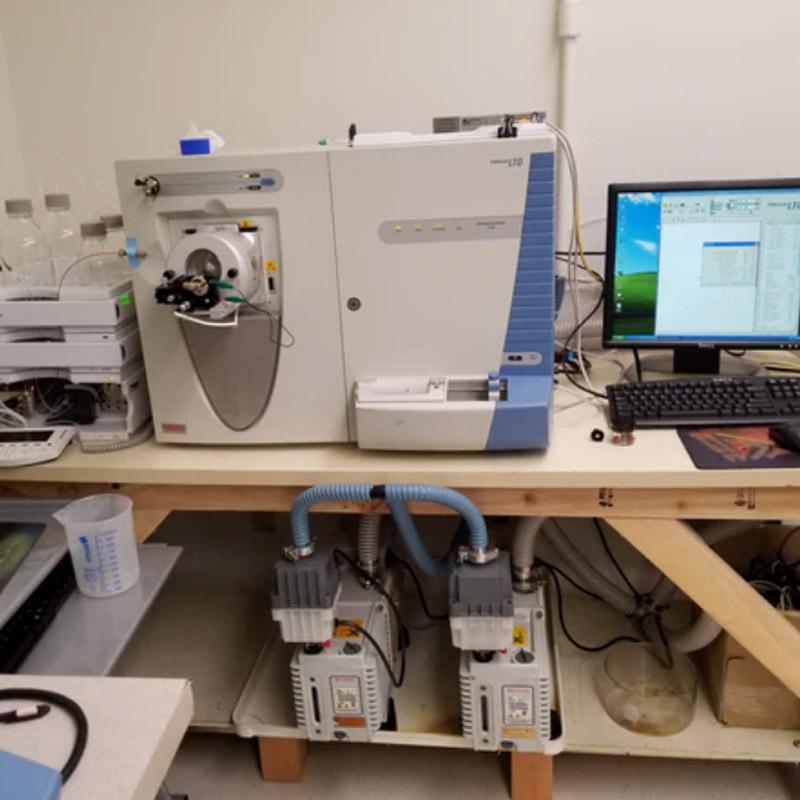

Project Background: SF12 Connectors in Swiss Laboratory Instrumentation

A customer in Switzerland integrated KMYD SF12 circular connectors into their laboratory instrumentation. The connectors were primarily used for power and signal connections between analytical instruments, sensors, and control modules, where precision and reliability are crucial for accurate measurement and data acquisition.

Customer Requirements

The customer required connectors that could meet the following operational demands:

• Maintain stable electrical connections for sensitive measurement devices
• Withstand repeated plug/unplug cycles without signal degradation
• Support reliable data and power transmission in precision laboratory instruments

After evaluating multiple options, the customer selected SF12 connectors for their compact size, robust mechanical design, and secure electrical contacts, which are well suited for high-precision laboratory applications.

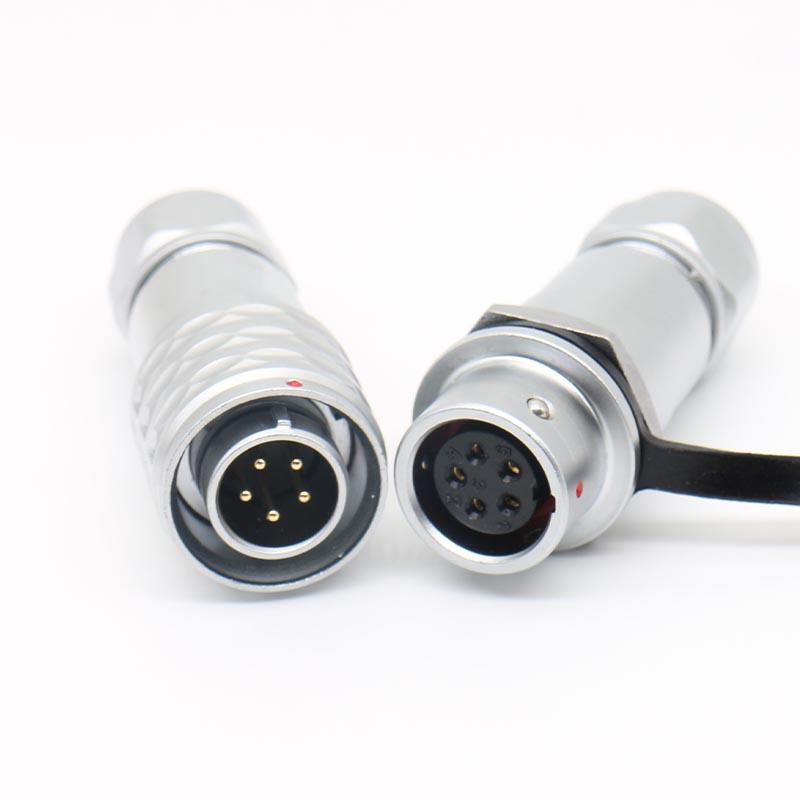

Solution: SF12 Connector Configuration

The SF12 series circular connectors were integrated to provide a secure interface between analytical instruments, sensors, and control modules. The threaded locking mechanism ensures a firm connection that resists accidental disconnection during operation, while the contact design supports consistent power and signal transmission for laboratory equipment.

Installation and Commissioning

During the integration process, the SF12 connectors demonstrated easy installation and maintenance for lab technicians. The compact form factor allowed for efficient routing within the instrument enclosures, and the durable construction supported repeated use without compromising electrical performance.

Results and Performance

The customer reported that SF12 connectors enhanced the reliability and performance of their laboratory instruments, ensuring accurate and uninterrupted data collection. The secure threaded locking and reliable electrical contacts contributed to stable operation in their precision measurement environment.

Why SF12 Was Selected

• Compact and durable design for precision instruments
• Reliable electrical contacts for critical measurements
• Threaded locking prevents accidental disconnection
• Supports both power and signal applications

For engineers evaluating similar circular connector requirements, the SF12 series offers a balanced combination of mechanical security and electrical stability. For related high-density or alternative locking options, review the Aviation Plug Connectors series or consult the 12G Series Circular Connectors catalog for additional configurations.
