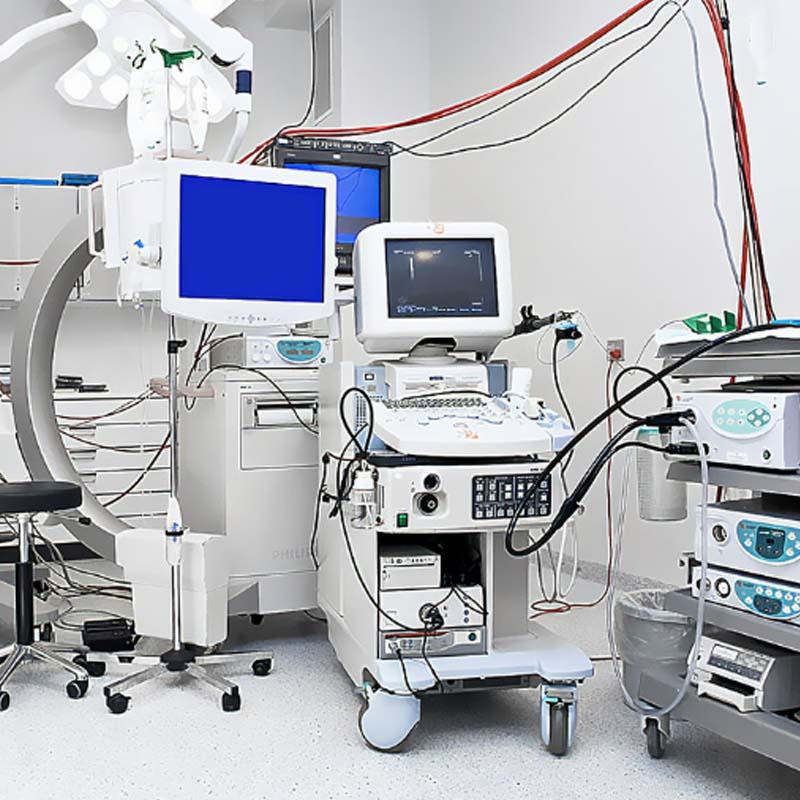

A medical device manufacturer in the United States integrated GX20 circular connectors into their imaging and diagnostic systems. The connectors handle power and signal transmission between control boards, sensors, and imaging modules, where precise and reliable connections are essential for accurate diagnostics.

Project Background

Operating in the U.S. medical device sector, the customer builds imaging and diagnostic systems that require consistent electrical performance within compact, sensitive electronic enclosures. The GX20 series was evaluated as a candidate for internal power and signal distribution across multiple sub-assemblies, with a focus on long-term reliability and serviceability.

Application Requirements

The customer required connectors that could:

• Maintain stable electrical connections for high-precision diagnostic devices
• Withstand repeated assembly and maintenance cycles without degradation
• Ensure reliable signal transmission for critical patient monitoring and imaging systems

After evaluating several options, the customer selected GX20 connectors for their robust mechanical design, secure threaded locking, and consistent electrical contact—all critical factors in medical equipment applications where downtime is not acceptable.

Solution and Installation

The GX20 connectors were installed between control boards, sensors, and imaging modules. The threaded coupling mechanism provides a vibration-resistant connection suitable for equipment that undergoes regular service and re-assembly. The compact shell profile allowed integration into space-constrained electronic bays without interfering with adjacent components, simplifying the overall system layout.

Performance of GX20 Connectors

• Stable power and signal transmission for continuous medical equipment operation
• Threaded locking prevents accidental disconnection during handling or vibration
• Compact and durable design suited for sensitive electronics
• Easy installation and maintenance for medical technicians

Delivery and Results

The customer reported that GX20 connectors provided consistent reliability, improving overall equipment performance and reducing maintenance downtime. The connectors met the expected mating-cycle requirements during bench testing and field service, and no intermittent signal issues were observed in the imaging modules. The threaded locking mechanism also contributed to faster, more secure reconnections during routine servicing.

Why GX20 Was Chosen

• Reliable electrical contacts for precision medical devices
• Strong mechanical design and secure locking mechanism
• Compact size suitable for internal electronics
• Supports both power and signal connections in one interface

For engineers evaluating circular connectors for medical or industrial applications, the GX20 series offers a balanced combination of electrical stability, mechanical retention, and installation convenience. Related selection guidance is available in the 12G Series Circular Connectors and the Din Circular Connector catalog pages.
