MIL-DTL-5015 Connector for UAV Power and Control Systems

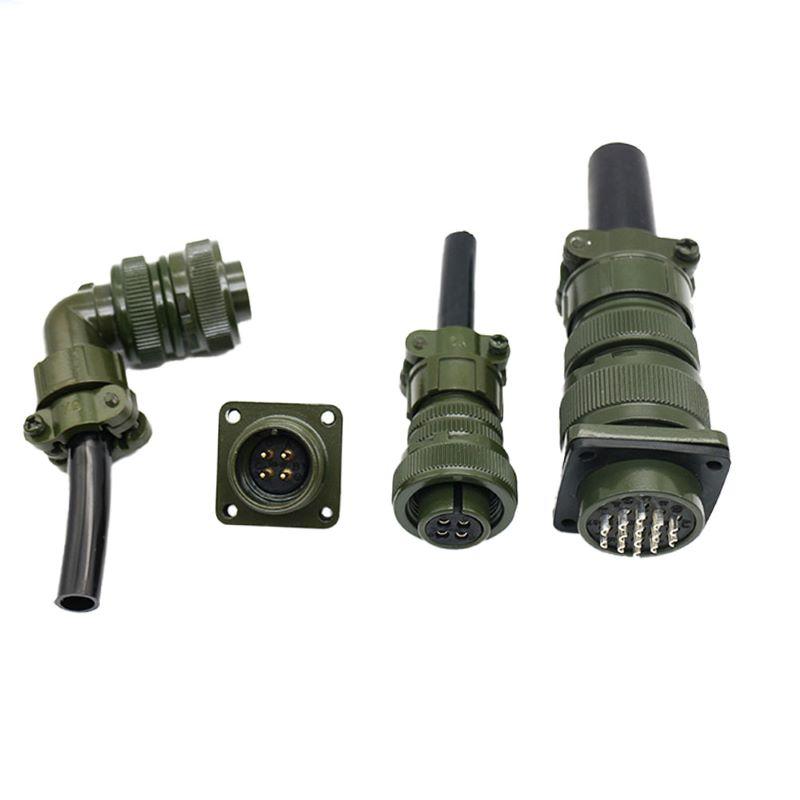

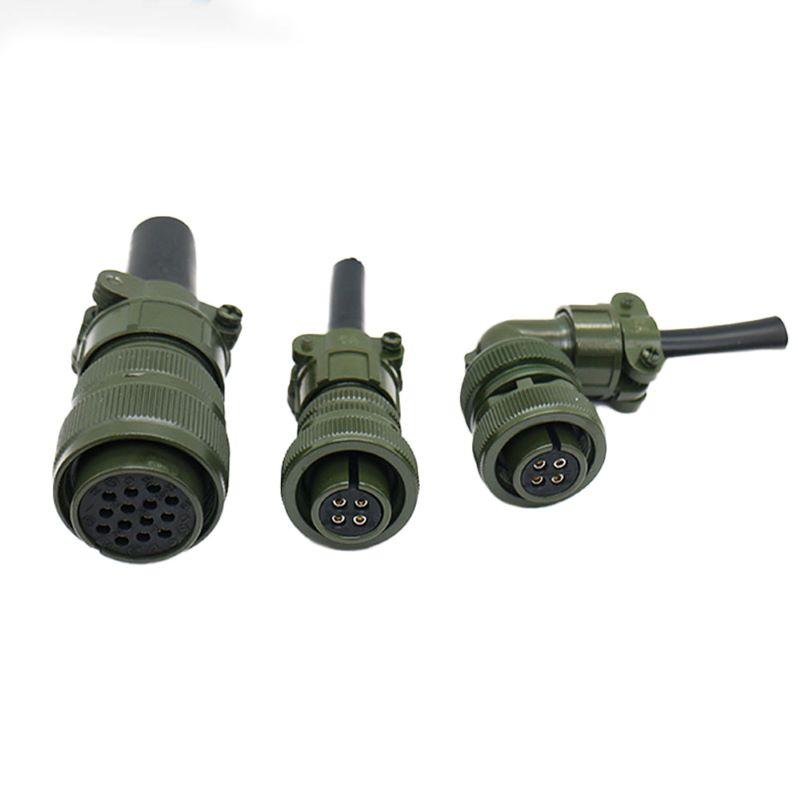

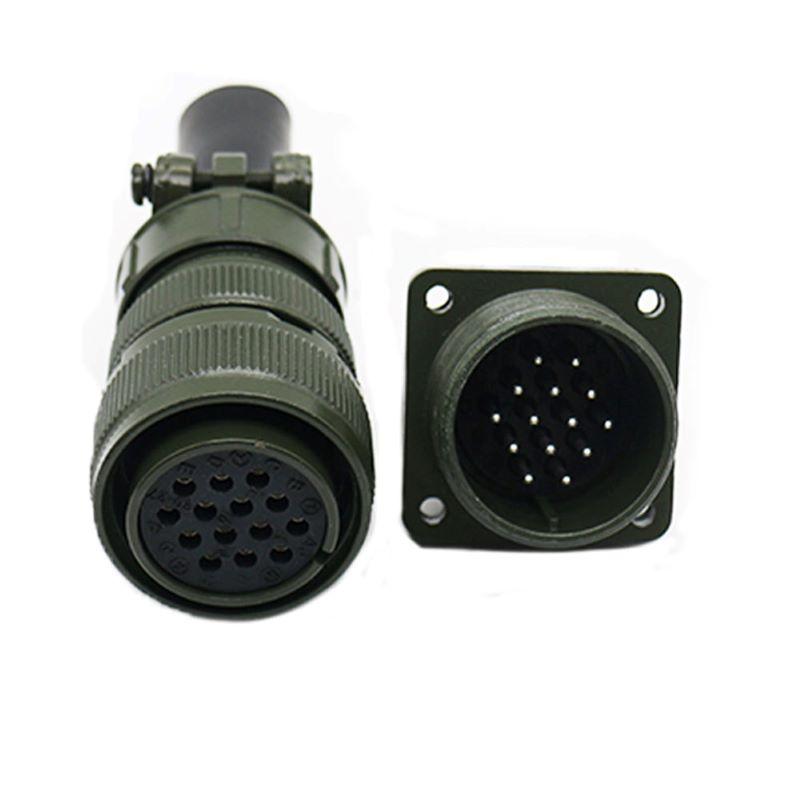

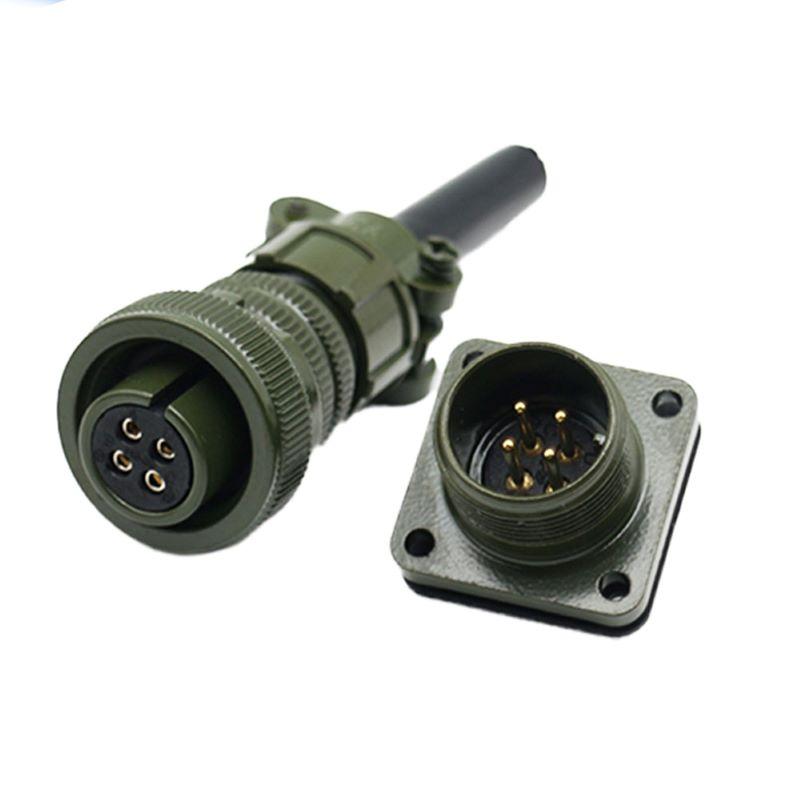

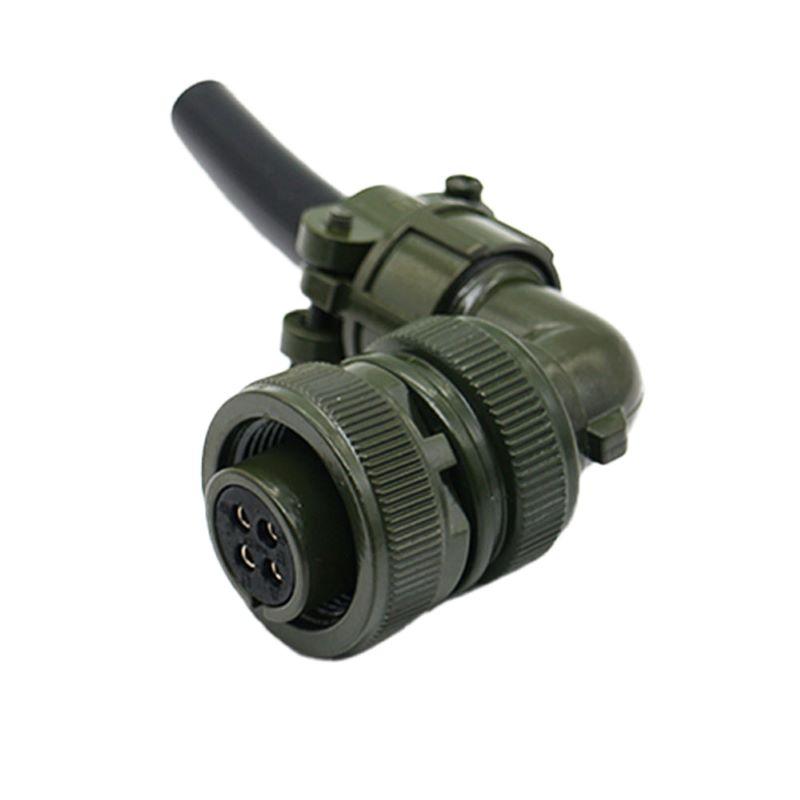

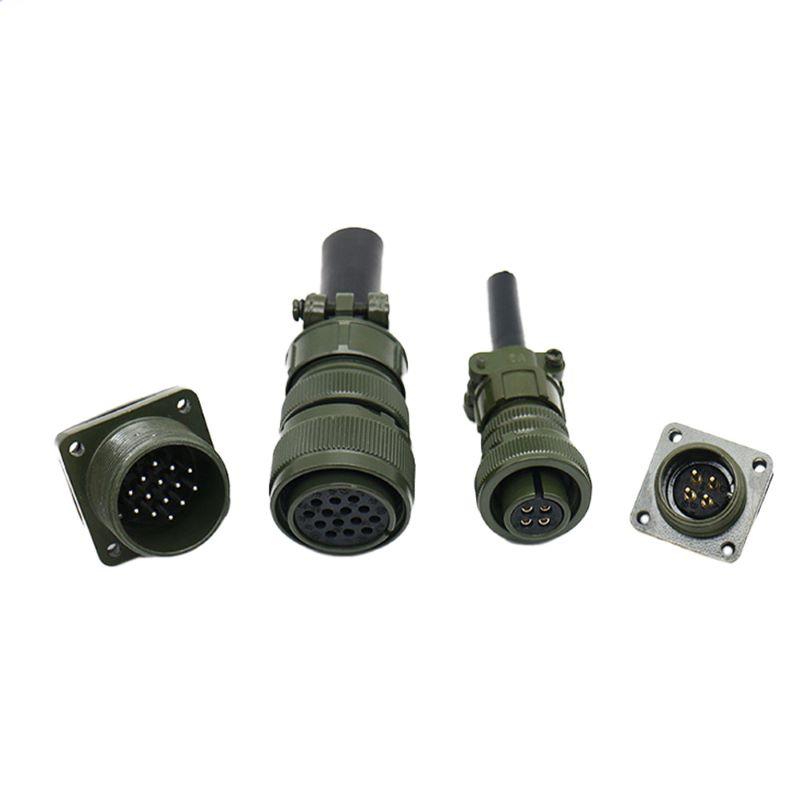

The MIL-DTL-5015 connector is a circular, threaded coupling interface designed for demanding aerospace and defense applications. Its aluminum alloy housing and gold-plated brass contacts support reliable power and control signal transmission in UAVs, satellites, and avionics systems. This page focuses on selection criteria, application fit, and installation considerations for engineers evaluating this connector series.

Key Selection Criteria for Your Application

Choosing the right MIL-DTL-5015 configuration depends on your system's electrical, mechanical, and environmental requirements. Use the following decision points to narrow down your options before requesting a quote.

• Pin count and layout: Available from 2 to 52 pins, the contact arrangement must match your power and control signal routing. Confirm the exact pinout diagram for your system.
• Gender and mounting style: Select male or female contacts, and determine whether you need a cable plug, panel receptacle, or box mount for your UAV or ground support equipment.
• Termination method: Solder and crimp terminations are available. Crimp terminations generally offer faster field installation, while solder provides a permanent, vibration-resistant joint.
• Environmental sealing: Verify the IP rating and temperature range against your operating environment. The connector supports operation from -55°C to +125°C, but unmated connectors are not sealed.

Application Fit and Integration

This connector series is commonly used in UAV power distribution units, flight control interfaces, and satellite communication payloads. Its threaded coupling provides a secure connection under vibration, and the aluminum alloy housing resists corrosion in harsh aerospace environments.

For integration planning, consider the following:

• Confirm the cable outer diameter and conductor gauge fit within the selected contact and backshell range.
• Verify that the connector's mounting flange or jam nut configuration matches your panel thickness and cutout dimensions.
• Plan for proper strain relief and cable support to prevent mechanical stress on the contacts during flight.

Reliability and Environmental Performance

The MIL-DTL-5015 connector is designed to meet stringent military standards for vibration and shock resistance, making it suitable for flight control and satellite electronics. The gold-plated brass contacts ensure stable electrical performance and corrosion resistance over repeated mating cycles.

Note that while the connector is built for rugged environments, its IP rating applies only when mated and properly locked. For applications requiring waterproof performance while unmated, additional protective caps or covers are necessary.

Installation and Maintenance Considerations

Proper installation is critical to achieving the connector's rated performance. Follow these guidelines during assembly:

• Use the recommended crimp tool and die set for the specific contact size to ensure a secure wire termination.
• Apply the correct torque to the coupling nut to achieve full mating without over-tightening.
• Inspect contacts for damage or contamination before each mating cycle.
• For solder terminations, use a controlled-temperature soldering iron and avoid wicking solder into the contact body.

When This Connector Is Suitable – and When It Is Not

Suitable for: UAV power and control systems, satellite communication equipment, avionics modules, and ground support systems requiring a rugged, threaded circular connector with 2-52 pins.

Not suitable for: Applications requiring waterproof performance while unmated, high-density contacts beyond 52 pins, or environments where a lighter-weight composite housing is preferred over aluminum alloy.

Information to Include in Your Inquiry

To receive an accurate quotation and configuration recommendation, please provide the following details:

• Required pin count and contact arrangement (pinout diagram if available).
• Gender (male/female) and mounting style (cable plug, panel mount, etc.).
• Termination preference (solder or crimp).
• Cable outer diameter and conductor gauge.
• Operating temperature range and any specific environmental requirements.
• Quantity and target delivery timeline.

For a broader overview of the MIL-DTL-5015 series, including configuration options and specification details, refer to our MS5015 Connector Types, Configurations & Specifications guide. You may also explore related Aviation Plug Connectors for additional aerospace interconnect solutions.
