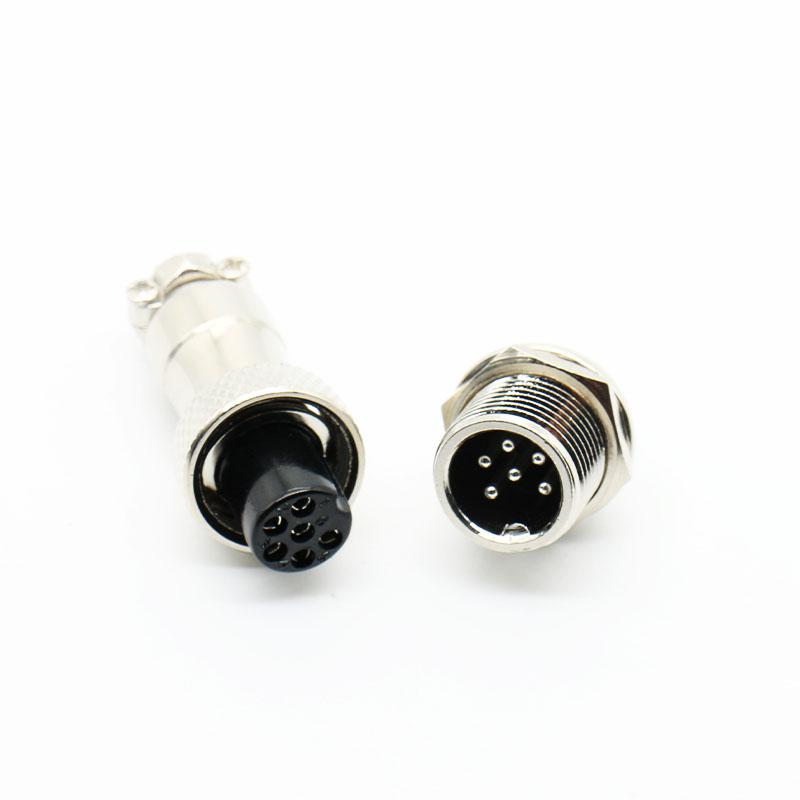

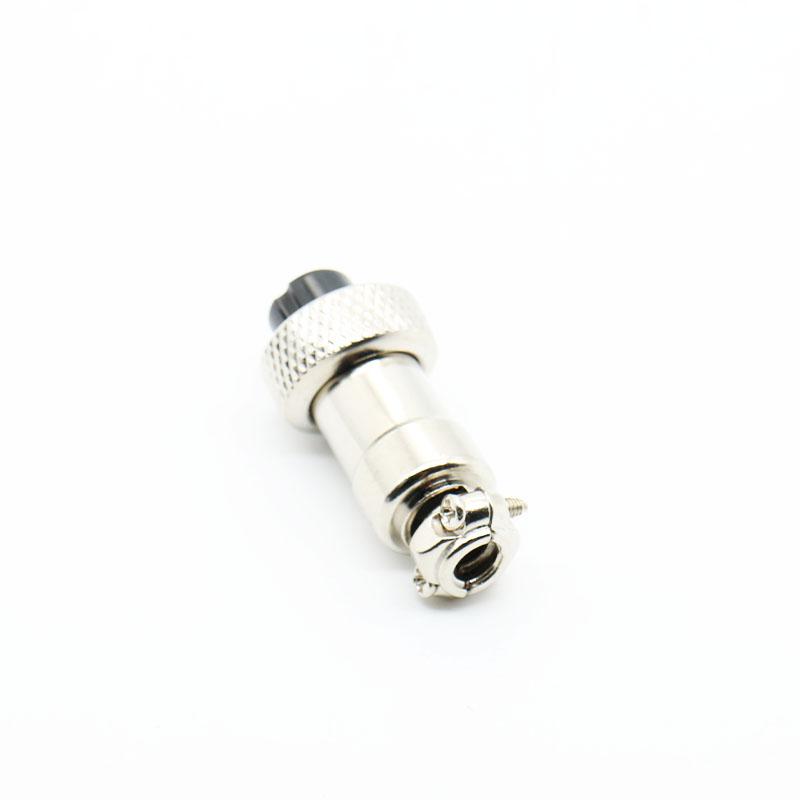

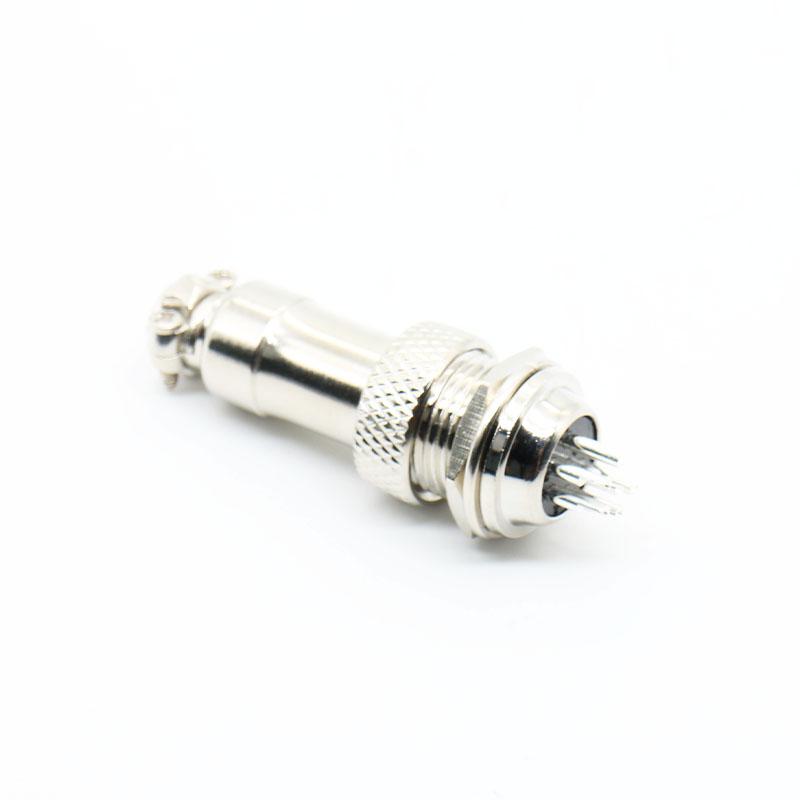

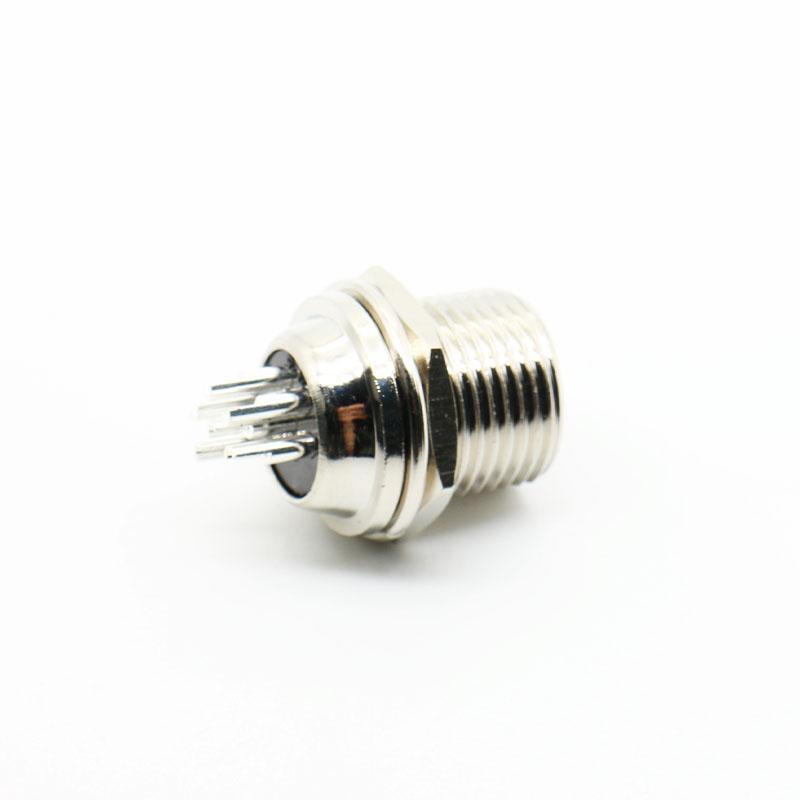

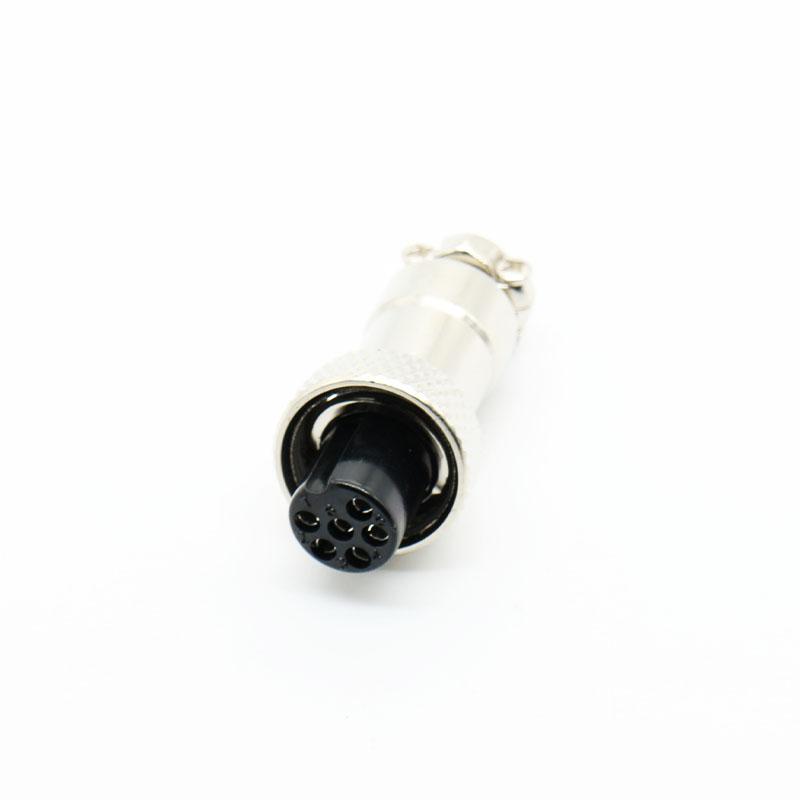

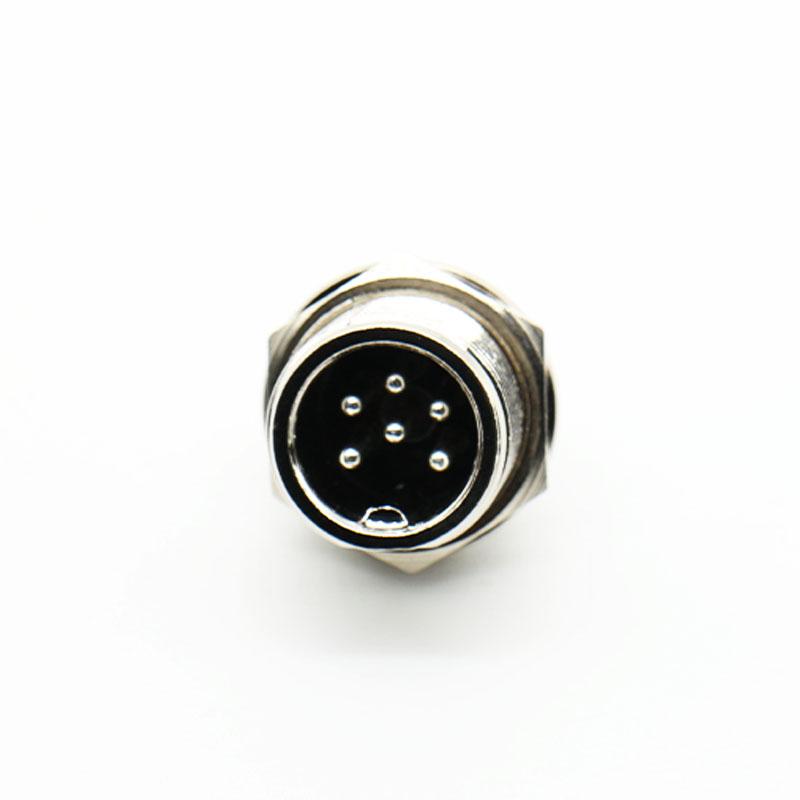

GX12 Connector for Avionics Navigation & Radar Systems

The GX12 connector is engineered for high-reliability connections in aerospace electronics. Ideal for navigation equipment and radar systems, it guarantees stable signal transmission even under vibration and extreme temperatures.

Rugged and Durable Design

Constructed with an aluminum alloy shell, this connector withstands mechanical stress, corrosion, and long-term wear. Its compact design fits perfectly into confined avionics compartments.

Reliable Electrical Performance

Rated for -30°C to +85°C, the GX12 connector ensures consistent current and voltage handling. IP67 protection keeps moisture and dust away, maintaining uninterrupted operation.

Easy Installation

Compatible with soldering or crimp termination, the GX12 connector simplifies assembly and maintenance in avionics systems. Its design supports fast and secure connections, reducing downtime and installation errors.

Selection Considerations for Avionics Integration

When selecting a GX12 connector for your avionics application, consider the following decision points to ensure proper mating and system reliability:

• Core Count and Gender: Available in 2 to 7 pins, with male and female configurations. Verify the pin layout against your device's mating connector to avoid mismatches.
• Environmental Sealing: The IP67 rating protects against dust and temporary immersion, but confirm that both the plug and receptacle are properly mated to maintain the seal.
• Termination Method: Choose between soldering and crimp termination based on your assembly capabilities and maintenance requirements. Crimp connections are generally faster to install, while soldering offers a permanent joint.
• Material Compatibility: The zinc alloy housing with nickel plating and brass contacts with gold or silver plating are suited for standard avionics environments. For highly corrosive or specialized conditions, confirm material suitability with your engineering team.

Application Boundaries and Installation Planning

The GX12 connector is well-suited for navigation, radar, and other avionics systems where a compact, reliable circular interface is required. However, it is not intended for high-power distribution or applications demanding a higher pin count. For installations in areas with extreme mechanical shock beyond standard vibration, verify the locking system's performance with the manufacturer's data.

Before ordering, prepare the following details to ensure correct configuration:

• Required number of cores and gender (male or female).
• Preferred termination method (solder or crimp).
• Cable outer diameter and conductor size for proper cable range compatibility.
• Specific mounting requirements (panel mount, cable mount, or free-hanging).
• Operating temperature range and environmental exposure conditions of your application.

For a broader overview of compatible series and configurations, refer to the Aviation Plug Connectors catalog. For detailed technical data on a related high-reliability series, see the 12G 2-10 Pin Aviation Circular Connector.
