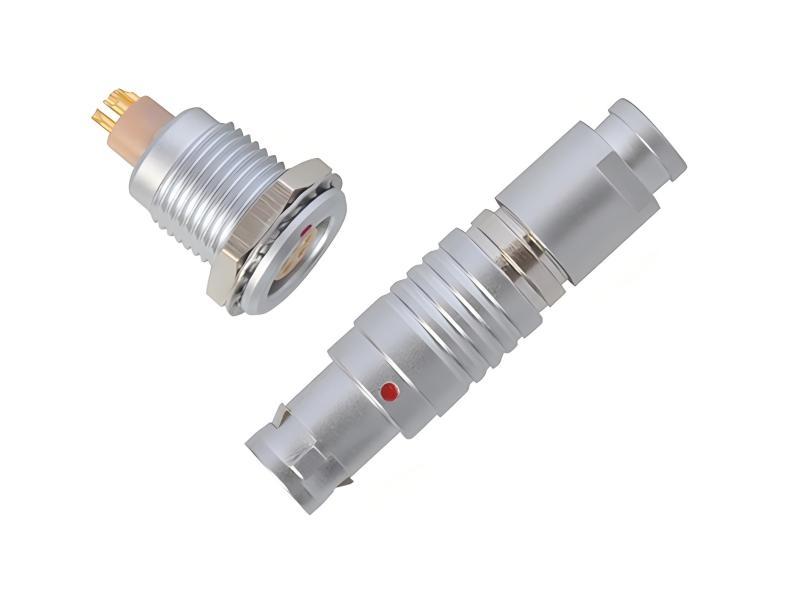

Why Push-Pull Connectors Are Gaining Ground in Medical Device Design

In the medical industry, equipment reliability and ease of use are essential. Push-Pull connectors are increasingly being adopted in medical devices, as they offer a secure, tool-free connection that reduces the risk of user error. Whether in diagnostic machines, wearable health monitors, or surgical equipment, these connectors provide a fast and reliable way to make connections, ensuring that devices function smoothly. Their simple and intuitive design minimizes the risk of incorrect handling, enhancing both patient safety and device uptime.

For engineers and procurement teams, the choice of connector directly affects device assembly time, field serviceability, and long-term dependability. Push-pull technology addresses these concerns by enabling a positive lock with a simple axial pull to release, which helps prevent accidental disconnection during patient transport or routine handling.

Key Benefits for Medical Applications

• Tool-free operation: Reduces assembly time and simplifies cleaning protocols, as no tools are required for mating or unmating.
• Secure locking mechanism: The push-pull design provides a tactile and audible click, confirming a proper connection and reducing the chance of partial engagement.
• Lower risk of user error: The intuitive push-to-lock, pull-to-release action is easy to learn, which is critical in high-stress clinical environments.
• Improved patient safety: A reliable connection helps maintain continuous monitoring and device function, reducing the likelihood of interruptions that could compromise patient care.

Where Push-Pull Connectors Are Used in Medical Equipment

These connectors are suited to a range of medical devices where quick, secure connections are needed. Common applications include patient monitoring systems, diagnostic imaging equipment, and surgical instruments. In each case, the connector must withstand repeated mating cycles and routine cleaning agents without degradation.

For example, in electrosurgical equipment, the connector must maintain signal integrity and power delivery while being exposed to frequent sterilization. The push-pull interface helps ensure that the connection remains stable even when cables are pulled or routed around equipment arms.

Design Considerations for Medical Connector Selection

When evaluating push-pull connectors for a medical device, consider the following factors:

• Mating cycles: Verify the rated number of insertions and withdrawals to match the expected service life of the device.
• Environmental resistance: Check the IP rating and chemical resistance to ensure compatibility with cleaning and disinfection protocols.
• Contact configuration: Confirm the pin count and layout match your signal and power requirements without over-specifying.
• Cable strain relief: Ensure the connector housing and cable exit are designed to withstand bending and pulling forces in daily use.

Next Steps for Your Medical Connector Project

If you are evaluating push-pull connectors for a new or existing medical device, start by defining your electrical, mechanical, and environmental requirements. Then compare connector series that match those parameters, paying attention to mating interface and mounting style.

For a deeper look at how these connectors perform in demanding medical settings, review our case study on push-pull connectors for surgical power equipment. If you have specific questions about connector requirements for patient monitoring or other applications, our team can help you verify the right interface and configuration for your device.

Contact us with your application details, including pin count, current rating, and environmental conditions, to receive a recommendation tailored to your project.
