PT Circular Connector
< >

MIL-DTL-26482 PT Series Circular Connectors

>Number Of CoresNumber Of Cores 2-24Pin
Contact DiameterContact Diameter(mm) 1.0mm-2.5mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -55℃ ~ +125℃
TerminationTermination Solder/Crimp
Rated CurrentRated Current(A) 5A/10A/15A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) ≥1000MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

PT Series Connectors: MIL-DTL-26482 US-Standard Circular Connectors

We offer the full range of PT series connectors with multiple pin count options (2–24 pins), fully compliant with MIL-DTL-26482 (US military standard). Designed for reliable connection in industrial, defense, and outdoor scenarios, this series pairs high durability with flexible compatibility, making it ideal for global systems.

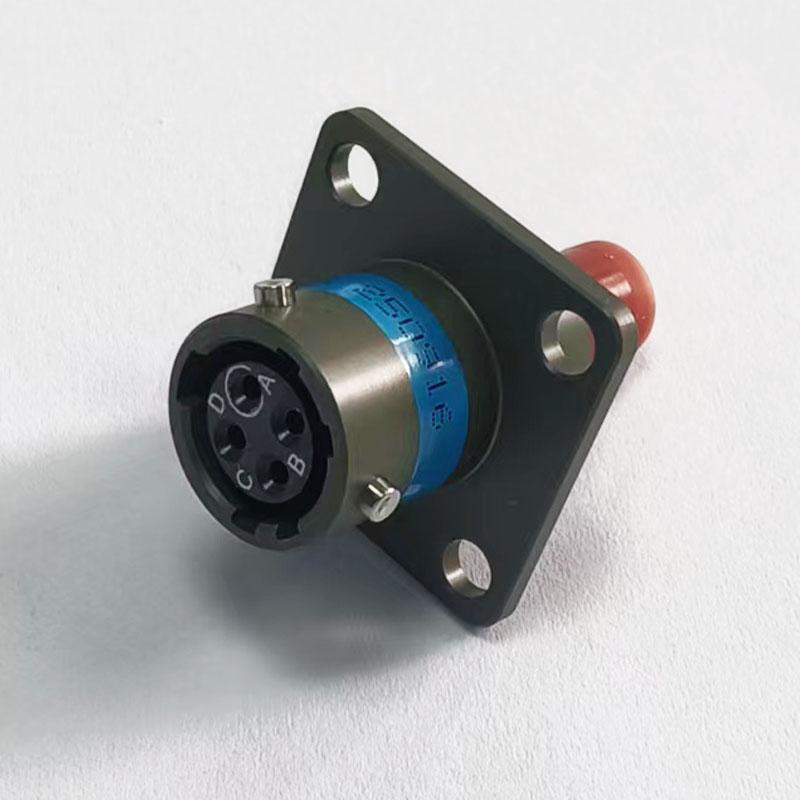

PT02E-2-2S Connector


Full PT Series Models (Multi-Pin Options)
We cover the complete PT series with flexible pin count options from 2 to 24 pins, including the following hot-selling models with clear application positioning:
PT02E-2-2S: Specialized for small sensor signal transmission, ideal for outdoor environmental monitoring devices and portable detection equipment
PT06A-6-6S: Optimized for industrial automation panel control signal connection, matching PLC and servo system wiring needs
PT12F-12-10S: Designed for marine offshore equipment, supporting mixed transmission of power and control signals in salt-spray environments
PT16B-16-14S: Tailored for military communication gear, ensuring stable multi-channel signal transmission under high-vibration conditions

PT24C-24-22S: High-density configuration for complex industrial control systems, integrating multiple groups of power and signal circuits

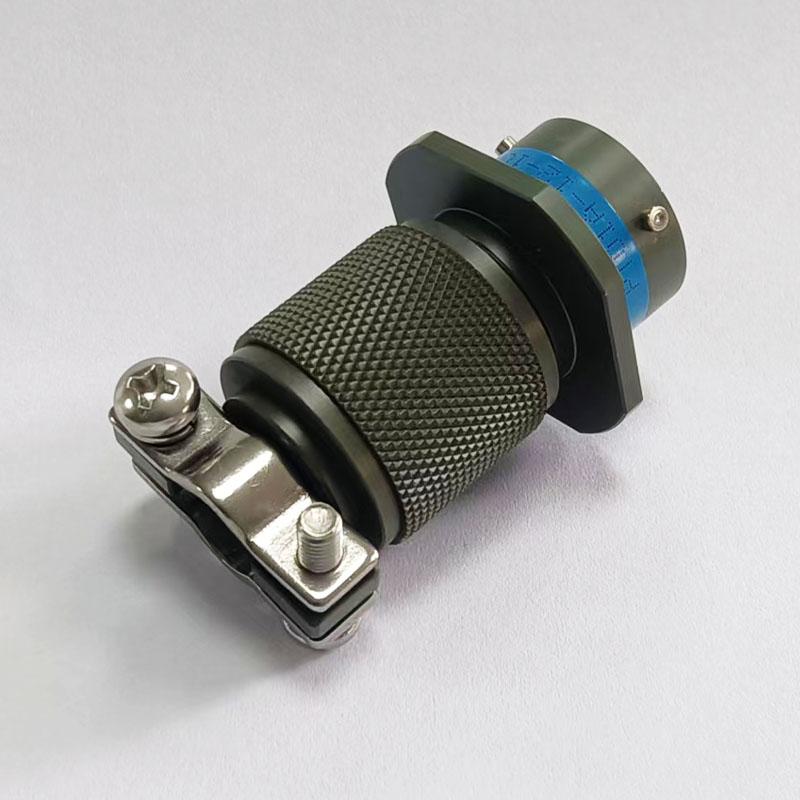

PT06A-6-6S Connector


Core Advantages
US-MIL Spec Compliance & Interchangeability

Fully aligned with MIL-DTL-26482 (US standard), PT connectors are interchangeable with other US-spec models, ensuring seamless integration with North American industrial/defense equipment.

PT12F-12-10S Connector


Rugged Build for Harsh Environments

Crafted with aluminum (or lightweight plastic) housing, IP67sealing, and phenolic resin/polyimide insulation, it withstands -55℃~+125℃ temperatures, vibration, and salt spray.

PT16B-16-14S Connector


1/4-Turn Bayonet Locking
The classic 1/4-turn three-point bayonet lock enables quick, secure mating—resisting loosening in high-vibration scenarios like machinery or military gear.

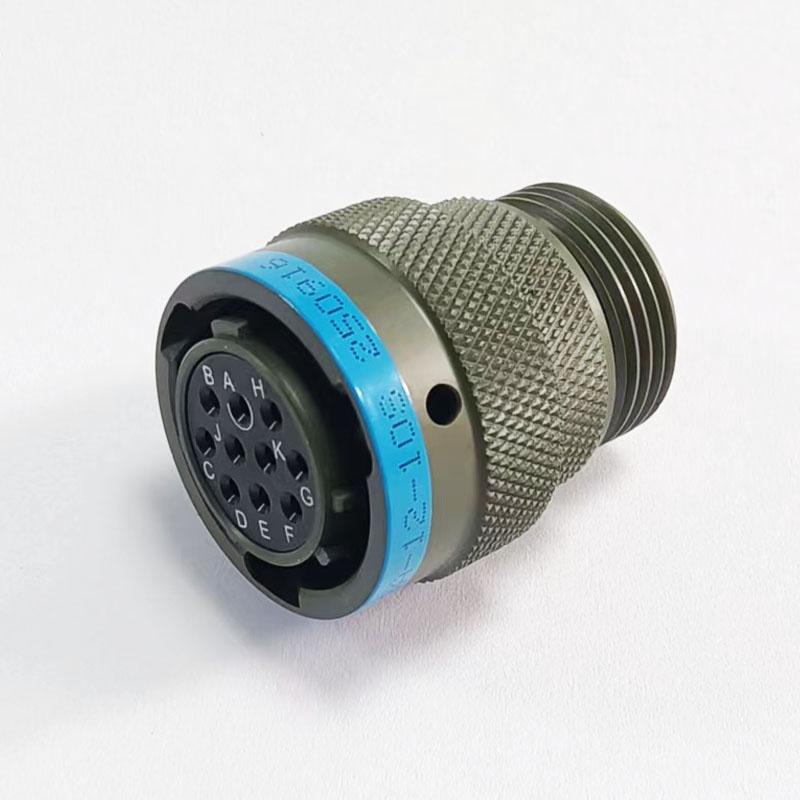

Circular Connector


Ideal Applications
Marine offshore monitoring platforms
Industrial automation control panels
Military communication equipment enclosures
Outdoor environmental sensing systems

Heavy machinery electrical connections


Custom Solutions and Support
We provide tailored PT configurations to match your needs. Our team offers one-on-one model selection, technical guidance, and fast global shipping.
Contact us now to request a free quote, sample, or detailed datasheet—keep your projects on track with reliable PT series connectors.

Item

Parameters

Number of Cores

2-24Pin

Gender

Male/Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

Phenolic Resin/Polyimide

Locking System

Bayonet Locking

Temperature Range

-55℃, +125℃

Rated Current (A)

5A/10A/15A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1000V

Insulation Resistance (㏁)

≥1000㏁

Insulation Resistance (㏁)

≤10㏁

Termination

Solder/Crimp


Related Products

More》

Related Resource


PT Series Circular Connector
MIL-DTL-26482 PT Series Circular ConnectorsManufacturer Advantage
Customized Solutions Tailored to Specific Scenarios
Customized Solutions Tailored to Specific Scenarios
Customized Solutions Tailored to Specific Scenarios: In addition to standardized products, we specialize in developing customized connector solutions for unique requirements such as high temperatures, high frequencies, and miniaturization. Whether it's for niche sectors like new energy equipm

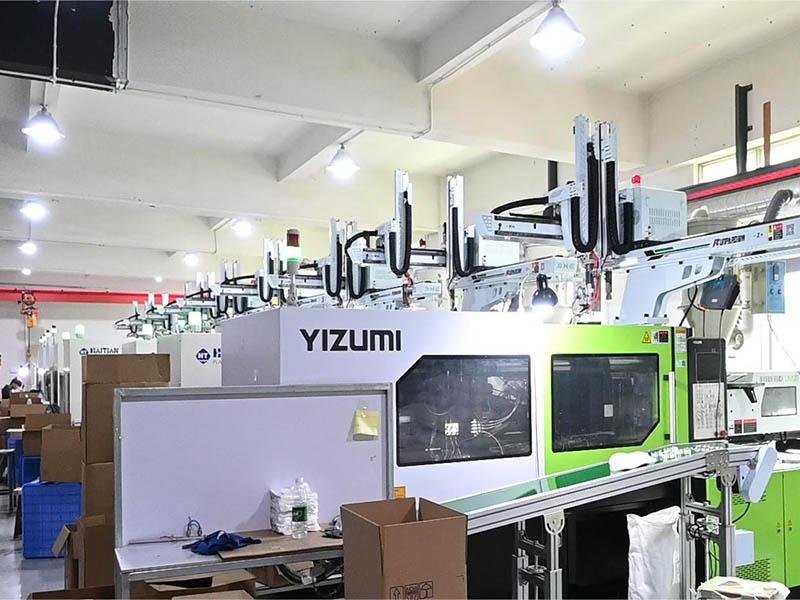

Stable Delivery with No Risk of Supply Interruption
