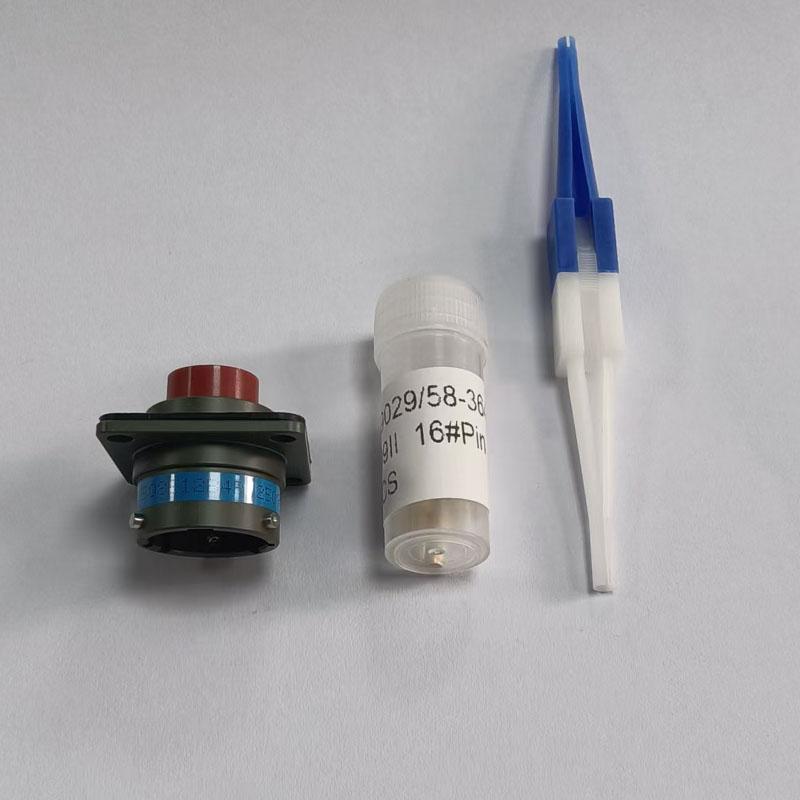

MS27508E12B4P Connectors
< >

MS27508E12B4P Connectors for Radar Modules, Deck Equipment and PLC Panels

>Number Of CoresNumber Of Cores 4Pins
Contact DiameterContact Diameter(mm) 2.3 mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range −65°C to +200°C
TerminationTermination Crimp
Rated CurrentRated Current(A) 13A
Rated VoltageRated Voltage(Ac.V) 600V
Test VoltageTest Voltage(Ac.V)1Min 1800V
Insulation ResistanceInsulation Resistance (MΩ) ≥5000MΩ
Contact ResistanceContact Resistance (MΩ) ≤3MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

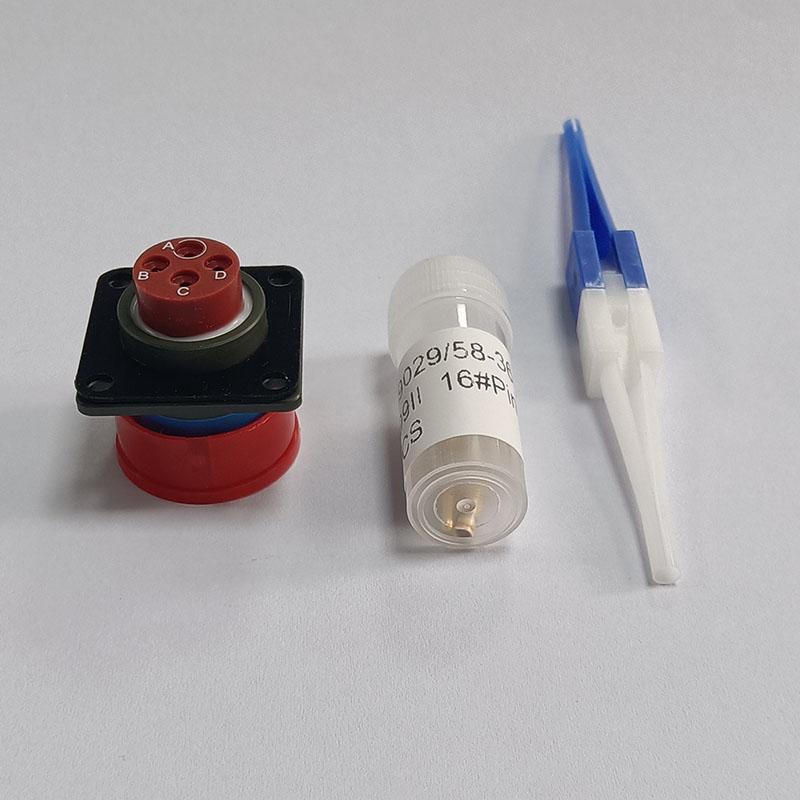

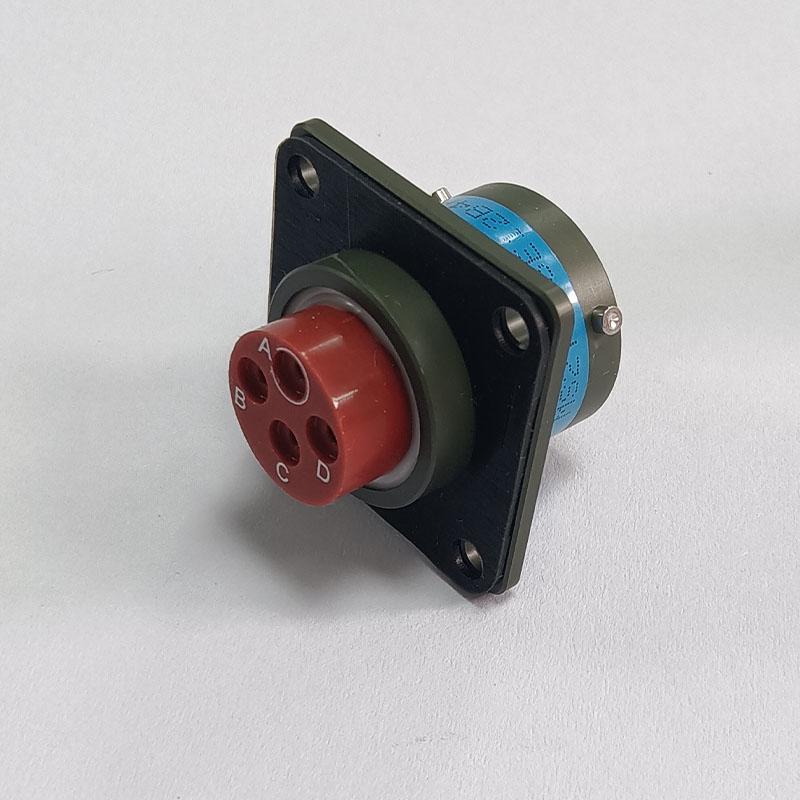

The MS27508E12B4P is a 4-pin MIL-DTL-38999 Series III circular plug connector specifically engineered for marine and shipboard electrical systems where reliability, durability, and compact design are critical.

Built with a rugged aluminum alloy shell and IP67-rated sealing, it offers protection against salt spray, water ingress, and dust, making it ideal for harsh onboard environments. The connector’s bayonet quick-lock coupling ensures secure mating even under constant vibration and mechanical stress typical of engine rooms, deck machinery, and automation panels.

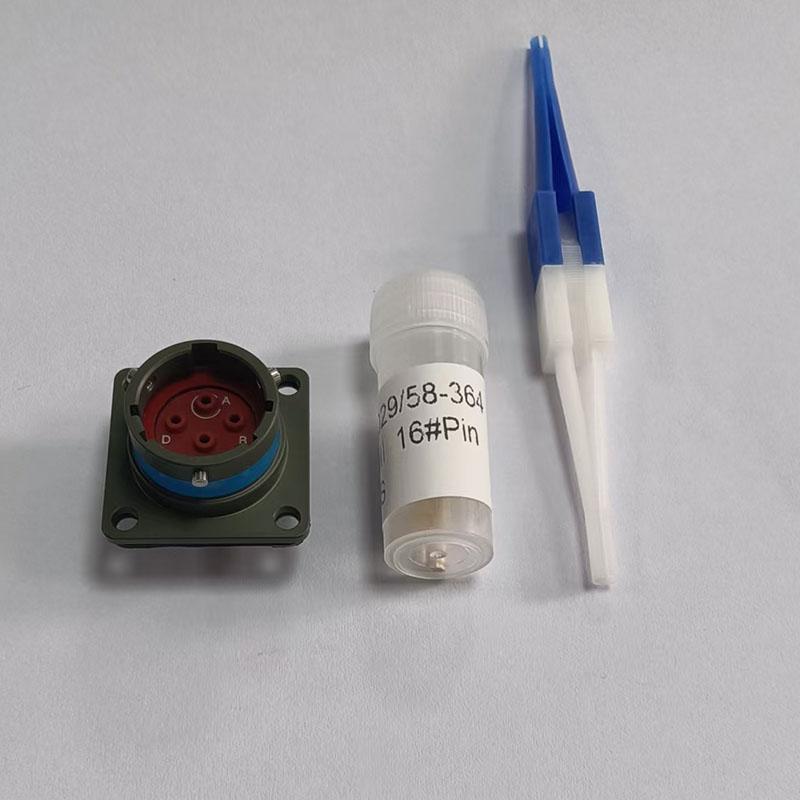

Connectors
Ideal for Critical Marine Applications

Bridge & Navigation Systems: Reliable signal paths for radar modules, GPS units, and electronic chart display systems.

Engine Room Monitoring: Secure connections for temperature sensors, oil pressure modules, and generator feedback circuits.

Deck Machinery Controls: Robust interface for winch, crane, and hatch control wiring exposed to saltwater and mechanical stress.

Automation & Control Panels: Compact solution for PLCs, distributed I/O systems, and sensor networks on ships.

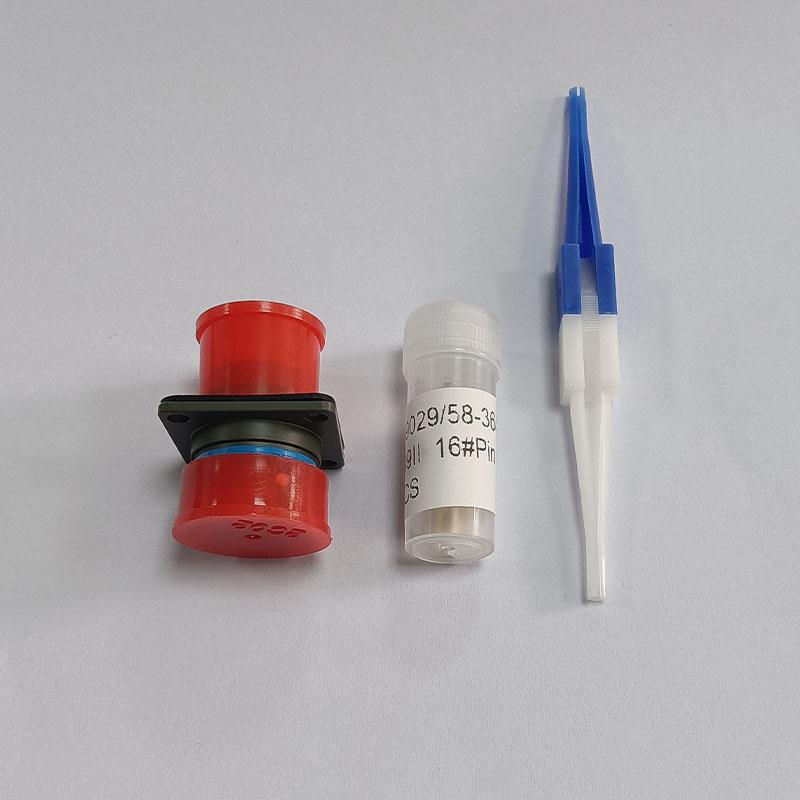

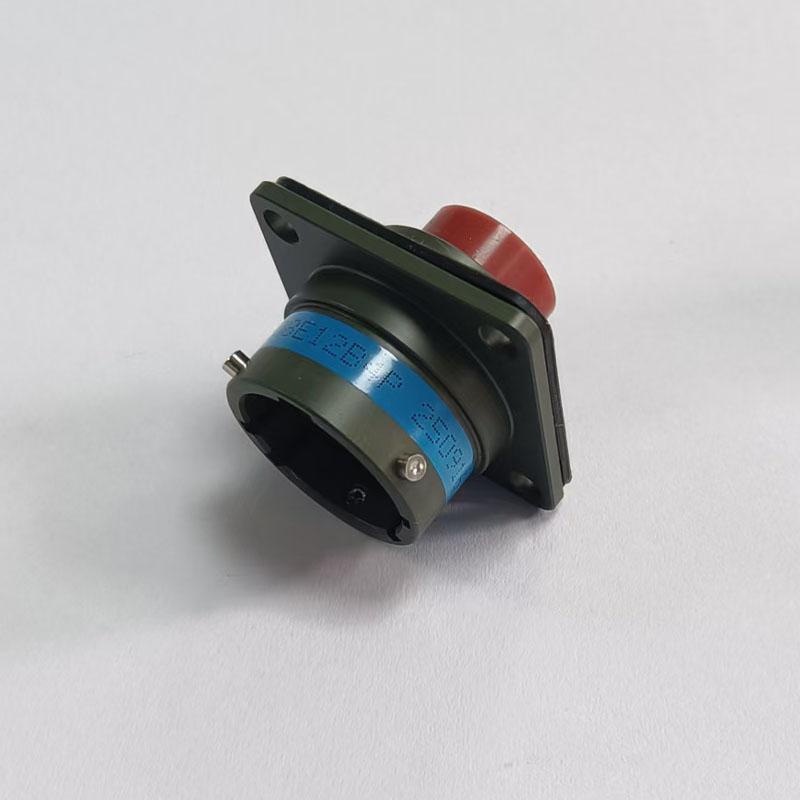

Circular Connectors


Electrical and Mechanical Reliability

4-pin configuration supports low-current power and signal circuits.

Crimp termination provides consistent electrical contact and minimal resistance.

Wide temperature operation from −65°C to +200°C ensures performance in extreme conditions.

Vibration and shock-resistant design keeps connections stable in high-stress marine environments.

The MS27508E12B4P is a compact, high-performance connector that combines marine-grade corrosion resistance, precise electrical integrity, and mechanical robustness, making it an essential component for shipboard, offshore, and industrial control systems where failure is not an option.

Item

Parameters

Number of Cores

4Pins

Gender

Male/Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

PEFT

Locking System

Bayonet Coupling

Temperature Range

-65°C to +200°C

Rated Current (A)

13A

Rated Voltage (AC.V)

600V

Test Voltage (AV.C)1Min

1800V

Insulation Resistance (㏁)

5000㏁

Contact Resistance (㏁)

≤3㏁

Termination

Crimp
