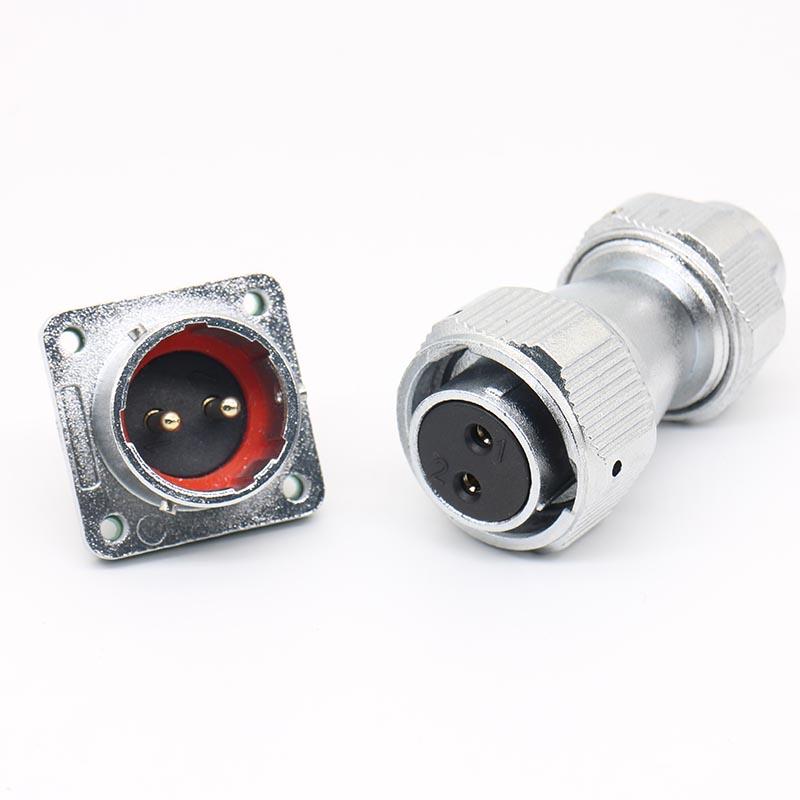

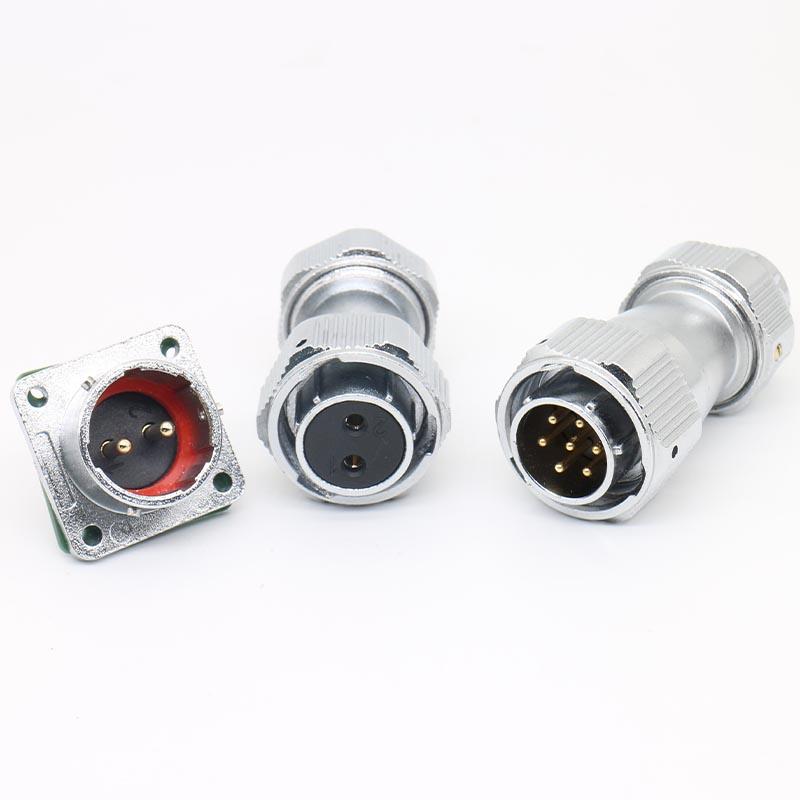

WY20 Circular Connector for Agricultural Machinery

The WY20 circular connector is designed for durable and reliable connections in agricultural machinery. Suited for tractors, harvesters, sprayers, seeders, and other farm equipment, this connector supports stable power and signal transmission in demanding outdoor environments.

Key Selection Considerations

When selecting a WY20 connector for your equipment, evaluate the following factors to ensure proper fit and performance:

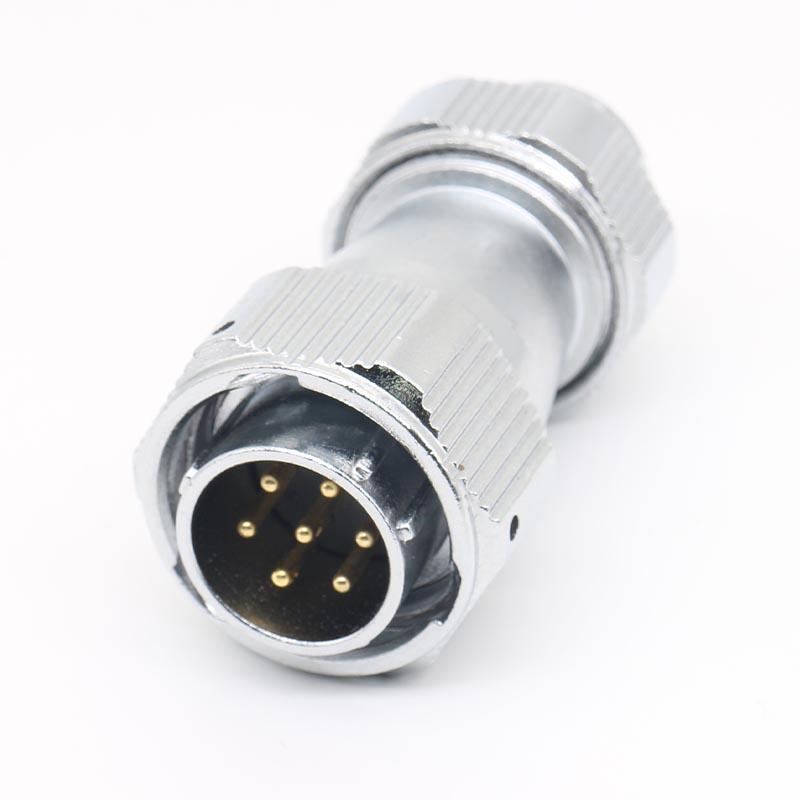

• Core count: Available with 2 to 15 pins, matching both power and signal line requirements across various implements.
• Environmental protection: IP65 to IP67 ratings keep connections sealed against water, dust, and mud during field operations.
• Temperature range: Reliable operation from -40°C to +85°C supports year-round use across seasonal conditions.
• Termination method: Solder, crimp, and screw terminal options allow flexible installation and simplified maintenance.

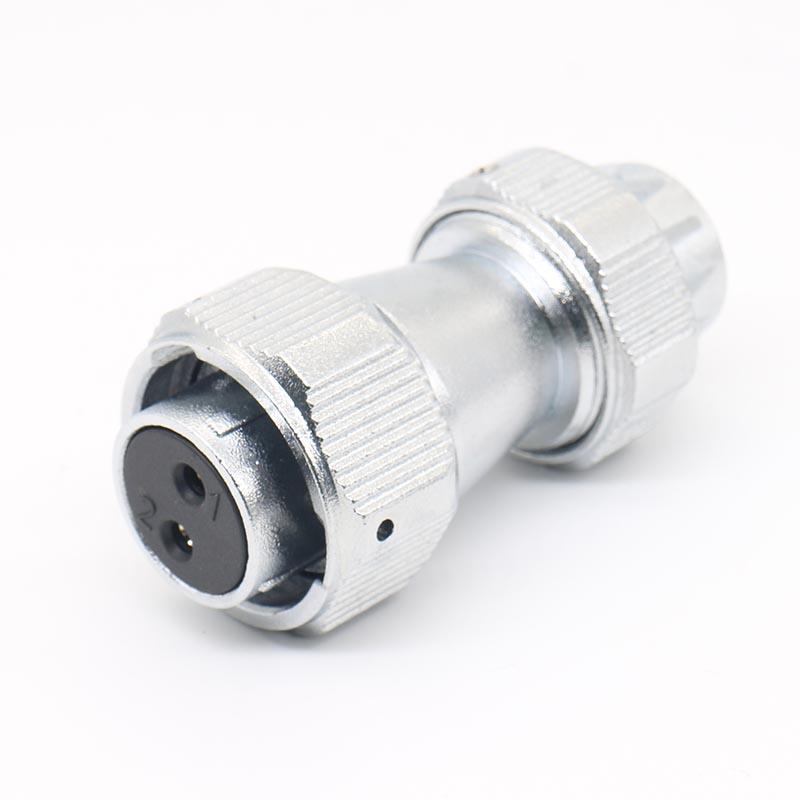

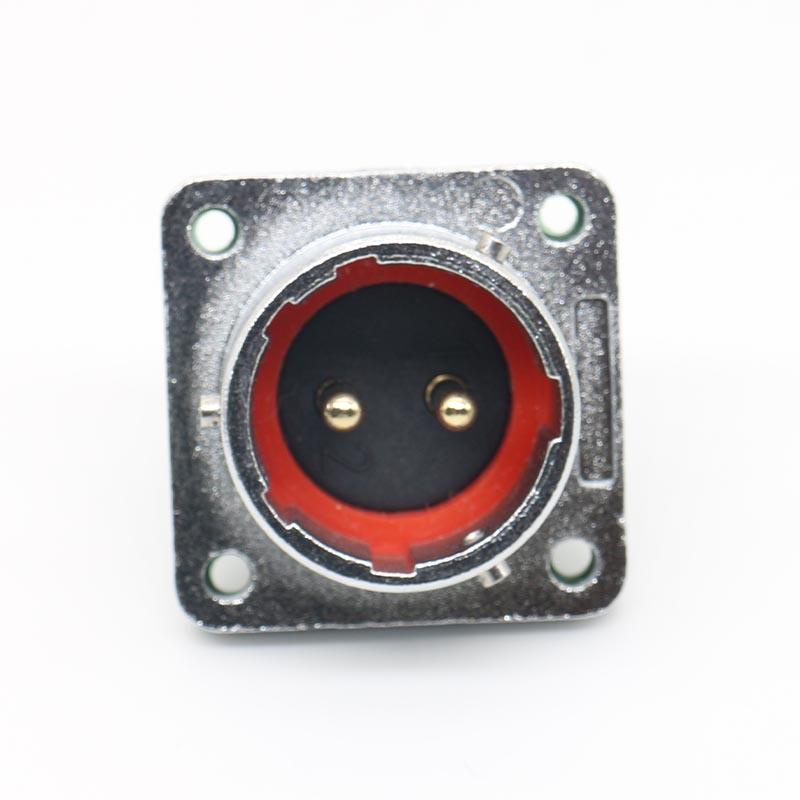

• Gender configuration: Male and female variants accommodate your specific wiring and panel layout needs.

Construction and Materials

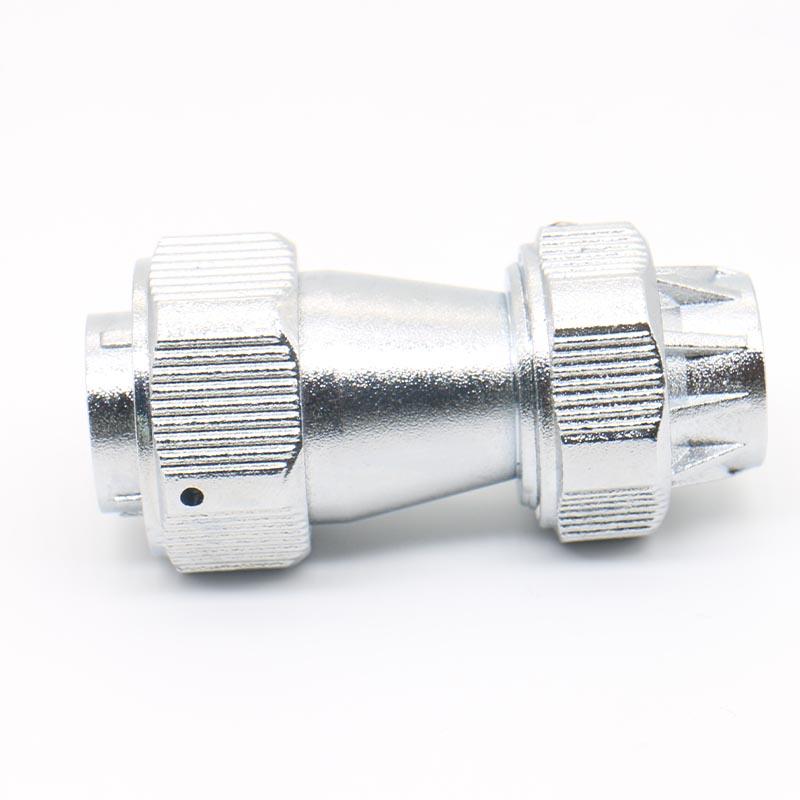

The WY20 connector combines a rugged zinc alloy shell with precision-machined contacts to withstand vibration and impact common in agricultural applications. The insulator is manufactured from PA66 nylon, providing heat resistance, dimensional stability, and dependable signal integrity over extended service life.

Application Fit and Boundaries

This connector is appropriate for tractor cabling, seeder monitoring lines, harvester sensor connections, and sprayer control circuits where moisture and particulate exposure are expected. It is not intended for submersion applications beyond the stated IP rating, nor for use where continuous operating temperatures exceed the specified range. Verify your cable diameter and pin configuration against the Technical Specifications before ordering.

Installation and Maintenance Guidance

Confirm the mating gender, pin count, and termination style required for your harness before purchase. For field-wireable versions, follow the recommended stripping and crimping procedures to maintain contact integrity. Periodically inspect the sealing surfaces and locking mechanism to preserve the IP rating over time.

Inquiry Checklist

To receive an accurate quotation and matching recommendation, please provide the following details:

• Required pin count (2–15) and gender (male/female)
• Termination preference: solder, crimp, or screw
• Cable outer diameter and conductor gauge

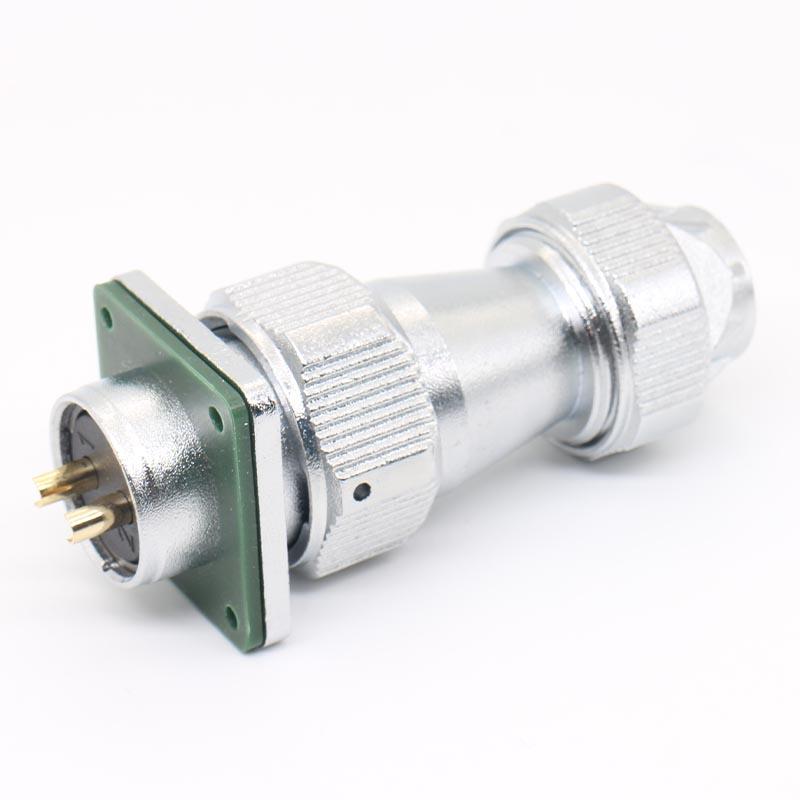

• Mounting style: cable-to-cable, panel mount, or other
• Operating environment specifics, including temperature and exposure conditions
