FQ14 Connectors
< >

GOST FQ14 Circular Connector for Agricultural Machinery

>Number Of CoresNumber Of Cores 2-7Pins
Contact DiameterContact Diameter(mm) 0.8-1.5mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -55 °C ~ +85 °C
TerminationTermination Solder
Rated CurrentRated Current(A) 5A/13A
Rated VoltageRated Voltage(Ac.V) 125V/250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥ 1500 MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 2.5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

The FQ14 Circular Connector is designed for reliable electrical connections in harsh agricultural environments. Featuring IP67 waterproof and dustproof protection, this connector ensures stable performance even in outdoor conditions. Its threaded coupling lock provides a secure and vibration-resistant connection, ideal for tractors, combine harvesters, seeders, sprayers, and irrigation control systems.

Made with high-quality nylon 66 insulation, FQ14 connectors offer excellent temperature resistance (-55°C to +85°C), high insulation resistance, and low contact resistance, guaranteeing signal integrity and safety. The flexible termination options (solder or crimp) make it easy to integrate into existing agricultural machinery wiring.

Connectors


Key Features:

IP67 Rated – Waterproof and dustproof for outdoor use

Threaded Locking Mechanism – Prevents accidental disconnection

High-Quality Insulation (PA66) – Reliable performance under temperature extremes

Stable Signal & Power Transmission – Suitable for agricultural equipment electronics

Flexible Termination – Solder or crimp for easy integration

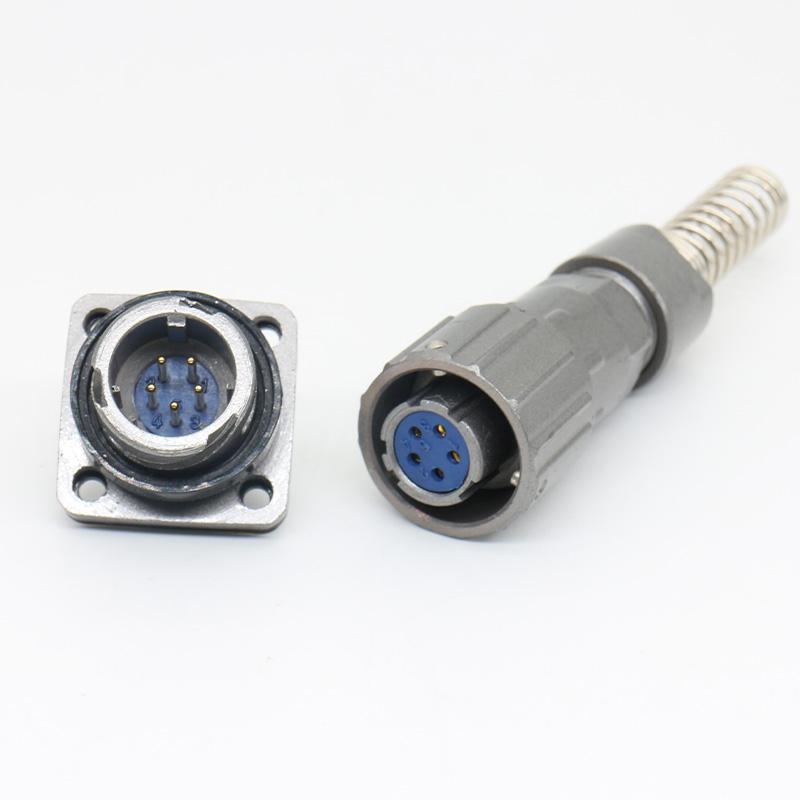

FQ14 Connectors


This connector is the perfect choice for enhancing the reliability and durability of agricultural machinery, ensuring consistent performance in challenging field conditions.

Item

Parameters

Number of Cores

2-7Pin

Gender

Male/Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

PA/Nylon 66

Locking System

Threaded Coupling

Temperature Range

-55℃, +85℃

Rated Current (A)

5A/13A

Rated Voltage (AC.V)

125V/250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

1500㏁

Contact Resistance (㏁)

≤2.5㏁

Termination

Solder
