VG95234 Connector
< >

VG95234 Agricultural Machinery Circular Connector, 2-61 Pin

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-61Pin
Contact DiameterContact Diameter(mm) 1.0-3.5mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -55°C to +125°C
TerminationTermination Solder / Crimp (optional)
Rated CurrentRated Current(A) 5A-46A
Rated VoltageRated Voltage(Ac.V) 500V-1000V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥ 5000 MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

Din Circular Connector

The VG95234 connector is a durable and reliable circular connector designed for agricultural machinery. Built to withstand harsh outdoor environments, it ensures stable power and signal transmission, keeping your equipment running smoothly.

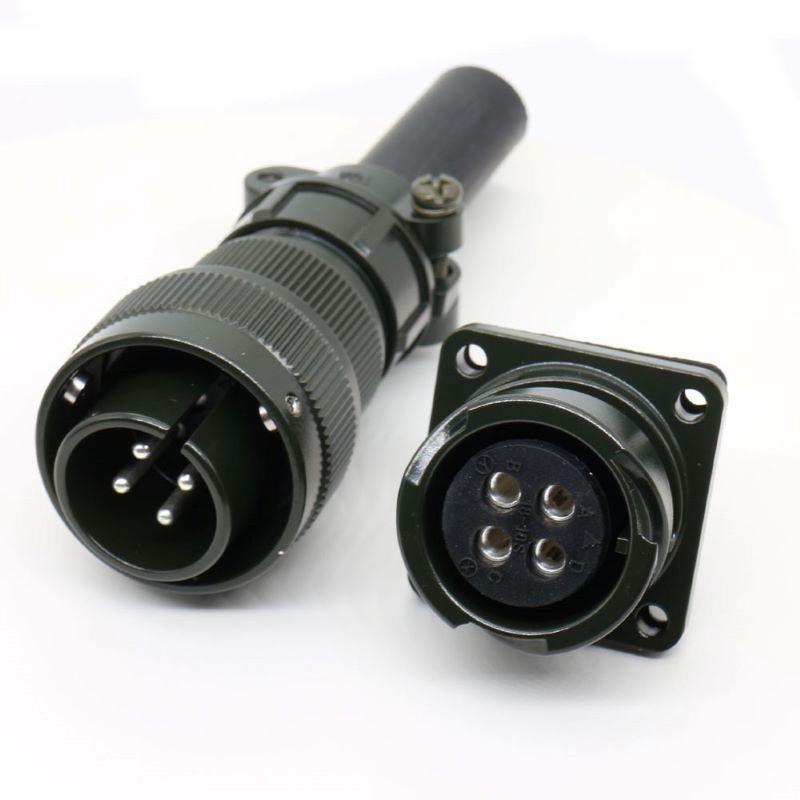

VG95234 circular connector for agricultural machinery

Why Choose the VG95234 Connector for Farm Equipment

Ideal for tractors, harvesters, irrigation systems, and other farm machinery, this connector combines robust construction with easy installation and maintenance, reducing downtime and improving operational efficiency. Its aluminum alloy housing and bayonet coupling provide a secure, vibration-resistant connection suited to field conditions.

Key Selection Considerations

  • Pin count and layout: Available from 2 to 61 pins, allowing you to match the connector to your machine's power and signal requirements.
  • Contact plating: Brass contacts plated with gold support reliable conductivity and corrosion resistance in humid or dusty environments.
  • Coupling style: The bayonet locking system enables quick, secure mating and unmating, which is practical for routine maintenance.
  • Temperature range: Rated for -55°C to +125°C, suitable for seasonal outdoor operation and engine-adjacent mounting.

Application Fit and Boundaries

This connector is well suited for power and signal links in tractors, seeders, harvesters, and irrigation control systems where a rugged circular interface is required. It is not intended for submersible or high-pressure washdown zones unless additional protection is provided; confirm the mating and mounting configuration with your application drawings.

What to Provide for Accurate Matching

To confirm the correct VG95234 configuration, please send your wiring diagram, required pin count, cable diameter, and mounting style (panel or cable). This helps us verify the housing, contact arrangement, and accessory options before supply.

Related Resources

For more agricultural connector options, see the VG95234 Circular Connector for Tractors and Seeders. For a broader range of circular interfaces, review the Din Circular Connector catalog.

For pricing, availability, or a custom configuration, please use the inquiry form or contact us via WhatsApp with your specifications.

VG95234 Military Connectors

Item

Parameters

Number of Cores

2-61Pin

Gender

Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

PEFT

Locking System

Bayonet Coupling

Temperature Range

-55°C to +125°C

Rated Current (A)

5A-46A

Rated Voltage (AC.V)

500V-1000V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (MΩ)

5000 MΩ

Contact Resistance (MΩ)

≤5 MΩ

Termination

Solder/Crimp
