Recommended Connector for Robot End Effectors with Frequent Tool Changes

For robot end effectors such as grippers that require frequent tool changes and quick plugging, the push-pull Series K quick connectors are the recommended solution. These connectors are engineered to support rapid tool changes while maintaining reliable power, signal, and pneumatic transmission in a single interface.

Key Selection Criteria for End Effector Connectors

When evaluating connectors for robotic end effectors, consider the following core decision points:

• Mating Speed: The Series K connectors enable plugging and unplugging in under 10 seconds, with tool-free, one-handed operation that minimizes downtime during tool changes.
• Durability: With a plugging life of ≥10,000 cycles, these connectors are designed for high-frequency mating applications typical of automated production lines.
• Multi-Function Transmission: The connector simultaneously transmits power (10A), signals (100Mbps), and compressed air, making it suitable for pneumatic grippers and other multi-function end effectors.
• Misplug Protection: Different tool heads correspond to different key positions, preventing actuator damage caused by incorrect connections during tool changes.

Application Fit and Boundaries

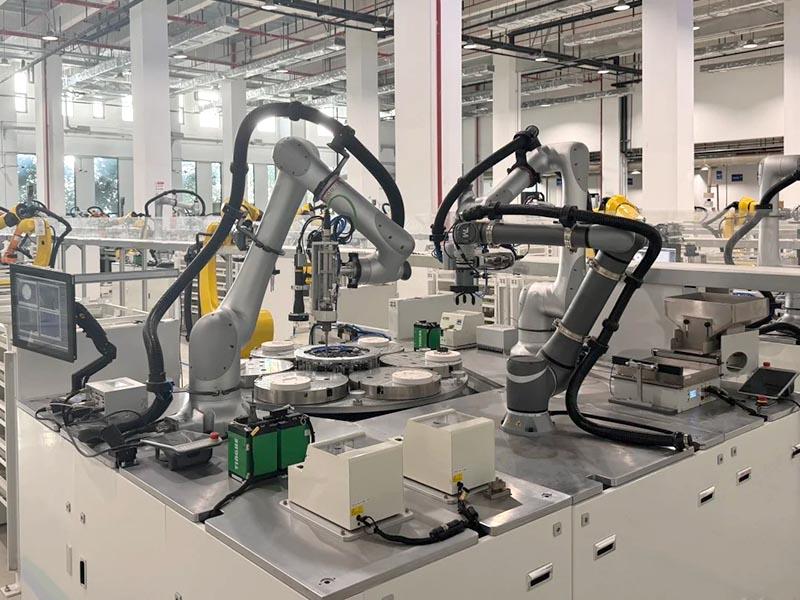

The Series K push-pull connectors are well-suited for robotic arms, automated tool changers, and pneumatic grippers where quick disconnection and reconnection are required. However, they are not intended for applications requiring high-voltage power transmission or environments where unmated waterproof performance is critical. For such requirements, consult the connector's environmental rating and electrical limits before selection.

Understanding the Electrical and Mechanical Parameters

The rated values for the Series K connectors—10A current, 100Mbps signal speed, and 10,000 mating cycles—are based on standard testing conditions. Actual performance may vary depending on cable type, installation method, and operating environment. Always verify derating factors for temperature, altitude, or continuous high-current operation with the manufacturer's data.

Installation and Maintenance Considerations

For optimal performance, ensure that the connector is properly seated and locked after each tool change. The tool-free design simplifies maintenance, but periodic inspection of contacts and seals is recommended to maintain signal integrity and environmental protection over the connector's service life.

Inquiry Checklist for Your Application

Before specifying a connector, prepare the following details to ensure the correct selection:

• Number of power, signal, and pneumatic lines required
• Operating voltage and current per contact
• Required mating cycles per day and total service life
• Environmental conditions (temperature, humidity, exposure to chemicals)
• Cable diameter and termination method (solder, crimp, or PCB)

For further guidance on connector selection for robotic applications, refer to our FAQ on AGV robot charging connectors or explore the 12G Series circular connectors for alternative configurations.
