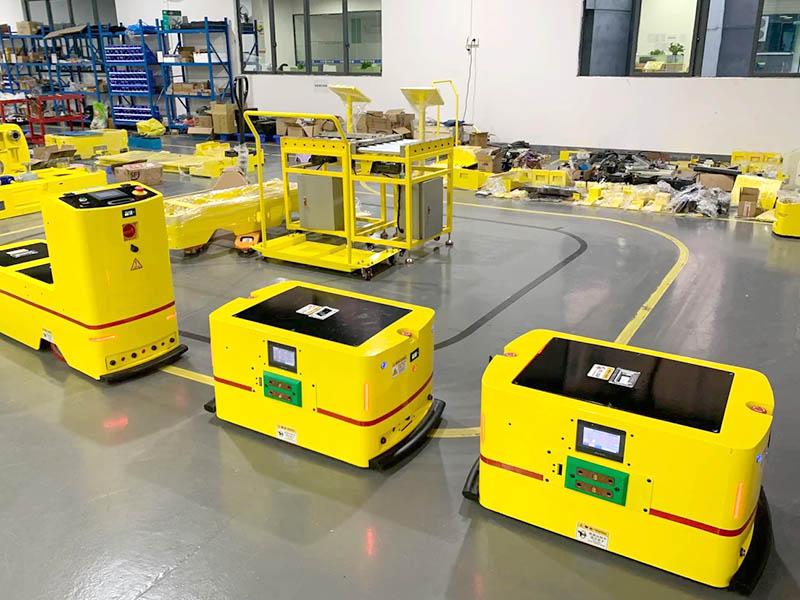

Selecting a Charging Connector for AGV Robots with 20 Daily Plugging Cycles

For an AGV robot charging port subjected to 20 plugging cycles per day, the primary selection criteria are mechanical endurance, electrical performance, and environmental sealing. The Series XT60 high-current connector is a suitable option, rated at 30A with a plugging life of ≥5,000 cycles, which supports over 6 years of operation at the specified daily usage rate.

Key Decision Points for AGV Charging Connectors

• Mechanical Life: With 20 cycles per day, a connector rated for ≥5,000 mating cycles ensures long-term reliability without frequent replacement.
• Electrical Rating: The 30A current rating meets typical AGV fast-charging requirements, enabling a full charge in approximately 1 hour.
• Contact Resistance: A contact resistance of
• Polarity Protection: The anti-reverse insertion design prevents polarity reversal, reducing the risk of damage to the robot's battery system.
• Environmental Protection: An IP67 rating protects against ground dust and water stains, which are common in industrial floor environments.

Application Fit and Boundaries

This connector is well-suited for indoor AGV applications where the charging port is exposed to dust and occasional moisture. However, it is not intended for submersion or high-pressure washdown environments. For applications requiring higher current or more frequent mating cycles, consider connectors with a higher ampacity or a more robust mating mechanism.

Interpreting the Specifications

The plugging life of ≥5,000 cycles is a rated value; actual lifespan may vary based on alignment, insertion force, and maintenance practices. The IP67 rating applies when the connector is properly mated; unmated connectors do not retain this protection. Always verify that the connector's voltage and current ratings exceed your AGV's charging system requirements.

Inquiry Input Checklist

Before finalizing your selection, confirm the following with your supplier:

• What is the exact charging current and voltage of your AGV system?
• What is the expected daily plugging frequency and required service life?
• Will the connector be exposed to chemicals, oils, or extreme temperatures?
• Is a cable assembly or panel-mount version required for your robot's design?

For related guidance on connector selection for robotic applications, see our article on connector selection for industrial robot joints.
