MS27467E13B35SB Military-Grade 22-Pin Bayonet Quick-Lock Connector

Din Circular Connector

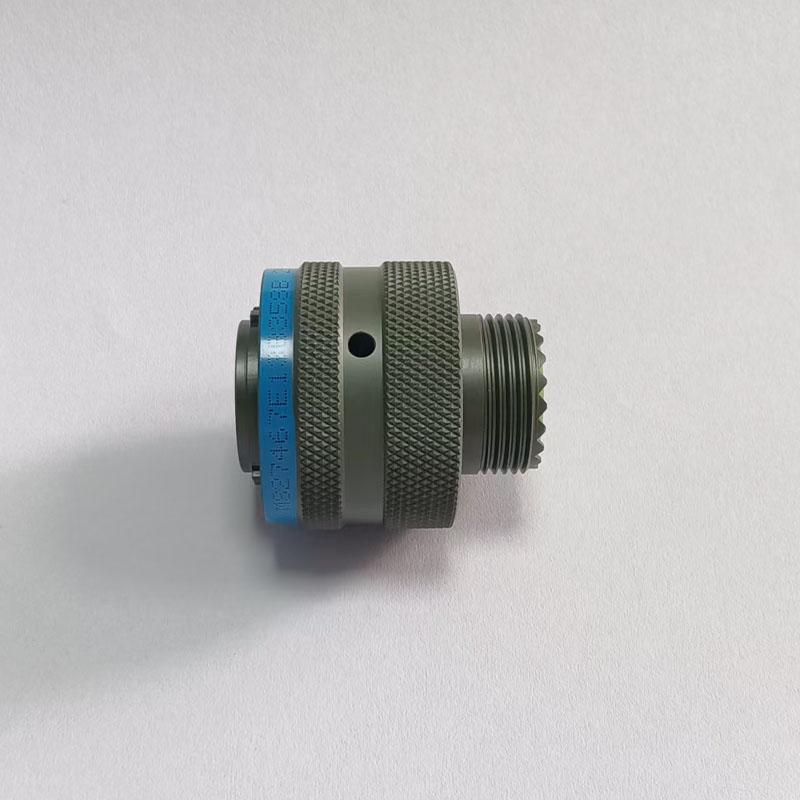

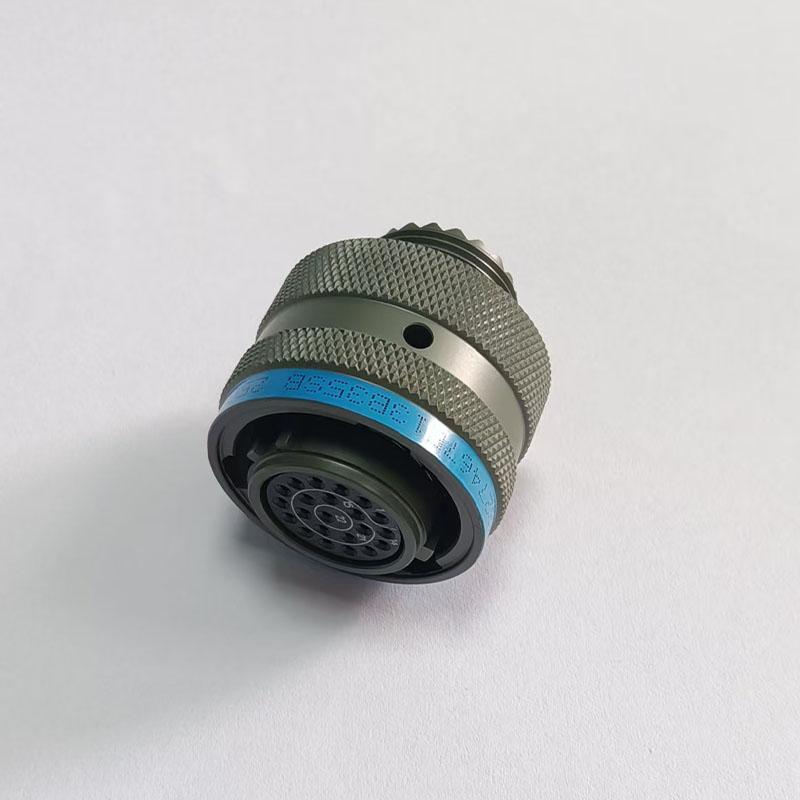

MS27467E13B35SB Military-Grade Connector Overview

The MS27467E13B35SB is a high-reliability, military-grade circular connector engineered for demanding applications where connection integrity is critical. Its rugged construction supports long-term stable electrical performance in extreme temperatures, vibration, and dusty environments, making it a dependable choice for professional systems.

Key Selection Considerations

When evaluating this connector for your project, focus on the following decision points:

• Configuration and Gender: This model is available in male or female variants with a 22-pin layout. Confirm the mating-side requirement to ensure correct pairing.
• Environmental Fit: The aluminum alloy housing and PTFE insulator are selected for shock, dust, and corrosion resistance. Verify that your operating temperature range aligns with the rated -55°C to +200°C.
• Locking Mechanism: The bayonet quick-lock system provides a secure, rapid mating action. Assess whether this coupling style suits your installation and maintenance workflow.
• Contact Performance: Brass contacts plated with gold support reliable signal transmission. Confirm your current and voltage requirements against the rated values in the Technical Specifications.

Application Scope and Boundaries

This connector is suited for military communications, industrial automation, aerospace, and other fields requiring high-reliability electrical connections. It is not intended for applications that exceed its rated electrical limits or temperature range, nor for environments where the specified IP protection is insufficient. Always verify compatibility with your specific cable diameter and conductor size before installation.

Installation and Mating Preparation

Proper installation is essential for achieving the connector's rated performance. Prepare the cable according to the recommended stripping dimensions and ensure the contacts are correctly crimped or terminated. During mating, align the keying features and rotate the bayonet coupling until fully locked. For detailed dimensional and wiring guidance, refer to the product drawing and pinout information.

Inquiry Input Checklist

To receive an accurate quotation and configuration match, please provide the following details when contacting us:

• Required gender (male or female) and mating-side connector model
• Pinout or wiring diagram for your application
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and temperature conditions
• Order quantity and target delivery schedule

For related high-density circular interconnect options, review the 12G Series Circular Connectors. To understand how this series compares with other circular interfaces, see the Din Circular Connector catalog entry.
