6Pin Connector
< >

SP13 Waterproof Circular Connector for Infusion Pump

>Number Of CoresNumber Of Cores 2-9Pin
Contact DiameterContact Diameter(mm) 0.7mm/1.0mm/1.6mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A-13A
Rated VoltageRated Voltage(Ac.V) 125V-180V
Test VoltageTest Voltage(Ac.V)1Min 1000V-1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

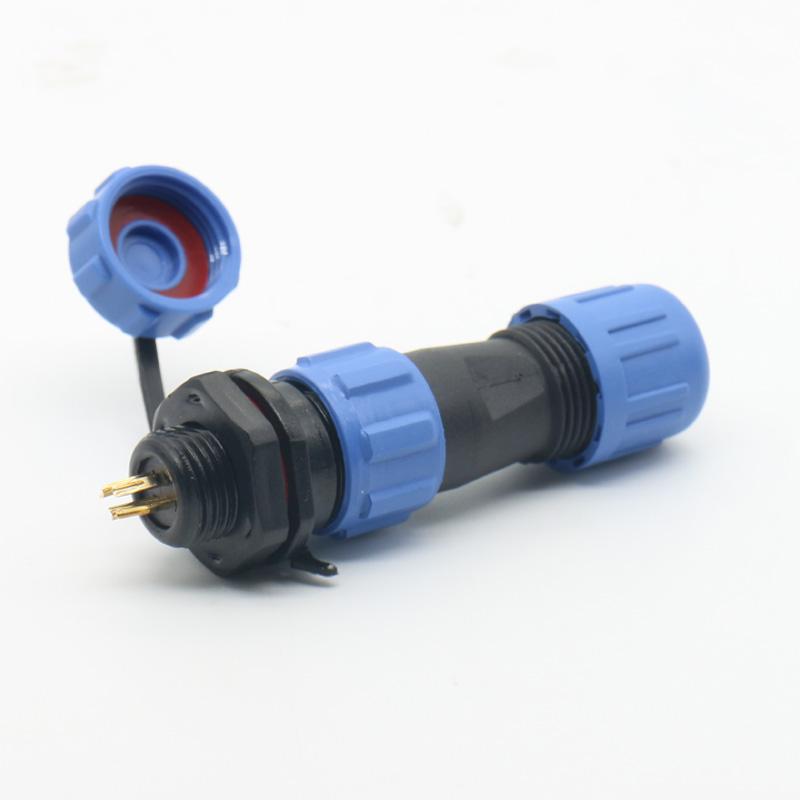

SP13 Medical Waterproof Circular Connector

The SP13 circular connector is specially designed for medical equipment requiring compact size, reliable connection and waterproof protection. With IP67 sealing performance, it ensures safe and stable operation in hospital and laboratory environments.

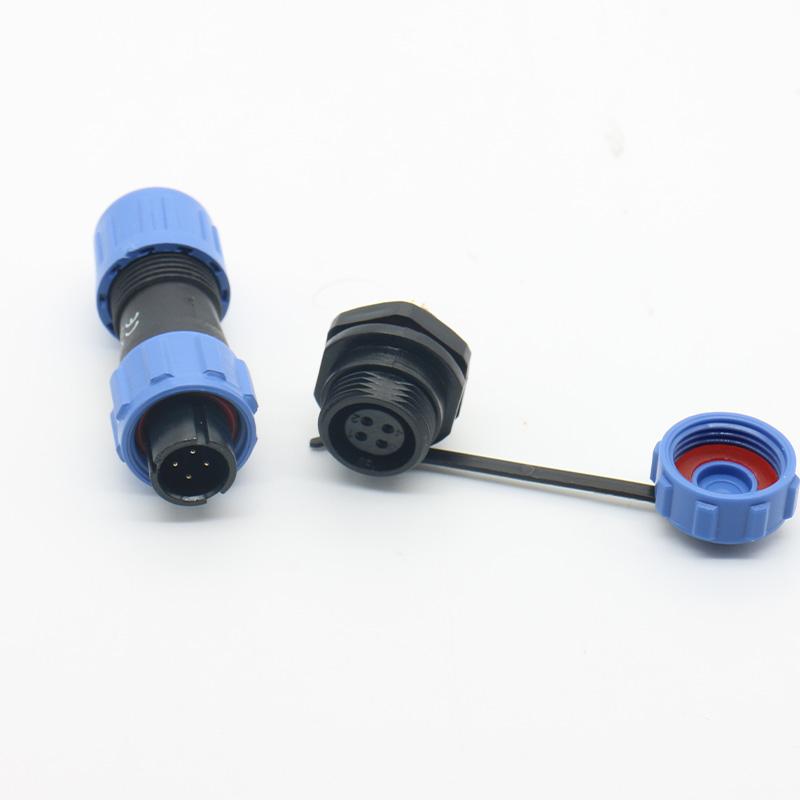

6Pin Connector


Designed for Professional Medical Devices

This connector is widely used in:

Patient monitoring systems

Infusion and syringe pumps

ECG / EKG diagnostic equipment

Portable ultrasound devices

Rehabilitation therapy instruments

Medical testing and laboratory devices

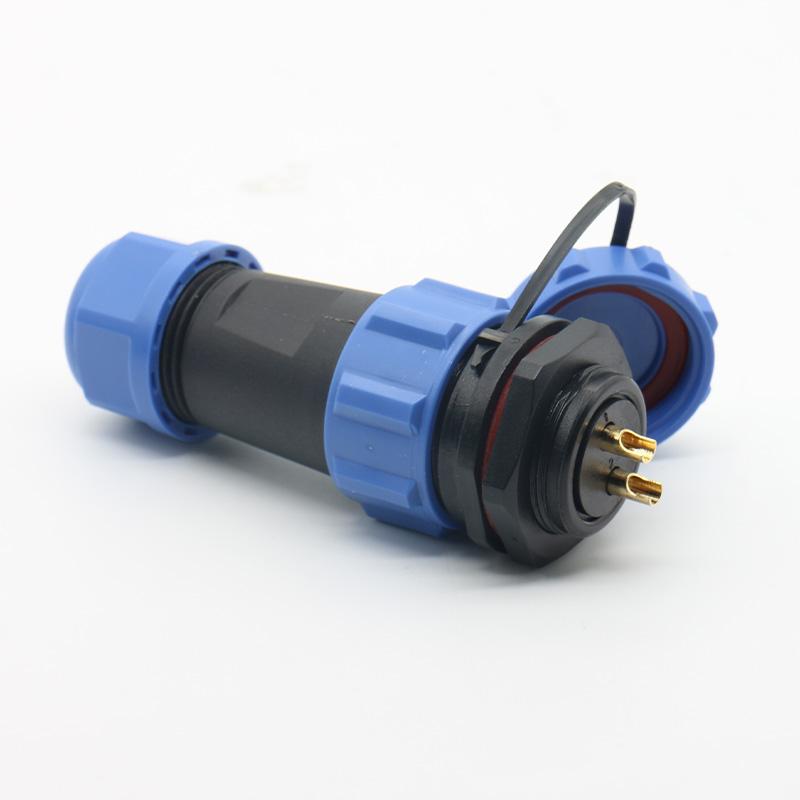

Circular Connector


Reliable Performance in Critical Applications

The SP13 connector provides stable signal and power transmission, ensuring uninterrupted performance for precision medical instruments. Its lightweight plastic housing offers excellent insulation and corrosion resistance, making it ideal for frequent sterilization environments.

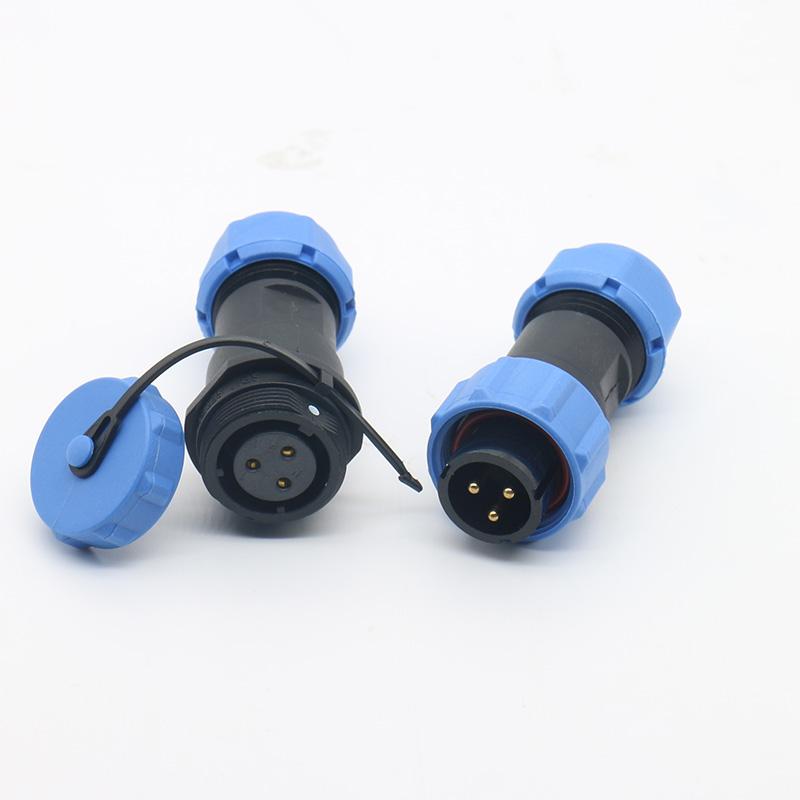

SP13 Socket


Flexible Pin Configurations

Available in multiple pin arrangements to meet various medical signal and power requirements, supporting customized solutions for OEM medical equipment manufacturers.

Number of Cores

2-9Pin

Gender

Male/Female

Housing Material

PC/PA66

Cores Material

Brass Plated with Gold

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

3A - 13A

Rated Voltage (AC.V)

125V - 250V

Test Voltage (AV.C)1Min

1000V - 1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤10㏁

Termination

Solder
