Circular Connector
< >

MS27497T8B35SA Circular Connector for GPS Modules

>Number Of CoresNumber Of Cores 6Pins
Contact DiameterContact Diameter(mm) 1.02 mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -65°C to +175°C
TerminationTermination Crimp
Rated CurrentRated Current(A) 7.5A
Rated VoltageRated Voltage(Ac.V) 600V
Test VoltageTest Voltage(Ac.V)1Min 1800V
Insulation ResistanceInsulation Resistance (MΩ) ≥ 5000 MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 3 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

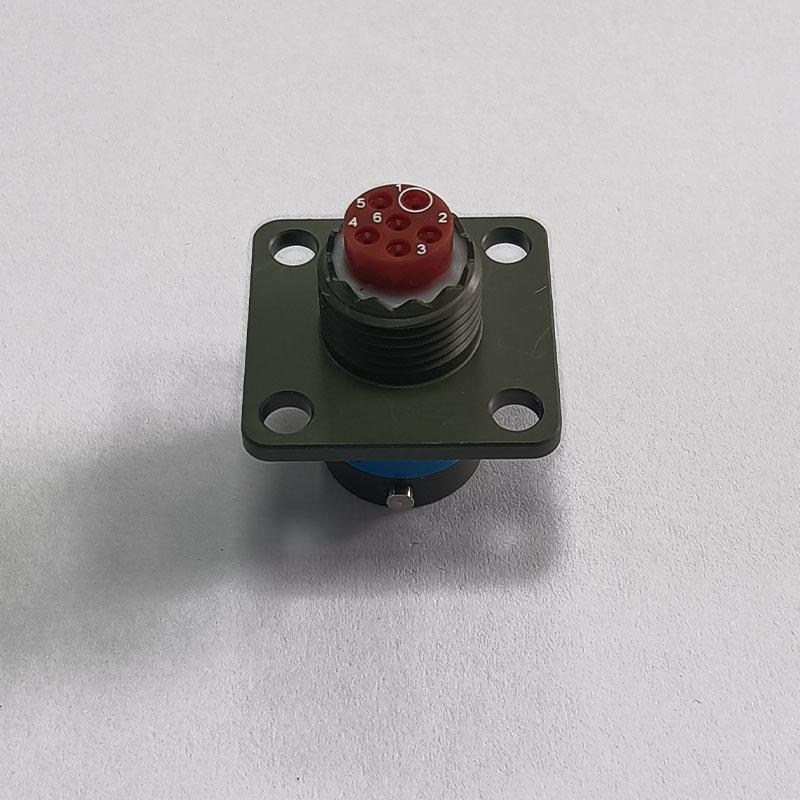

The MS27497T8B35SA is a high-reliability 6-pin circular socket connector engineered for demanding marine and shipboard electrical systems. As part of the MIL-DTL-38999 Series II family, it is specifically suited for applications where compact size, environmental resistance, and mechanical stability are essential.

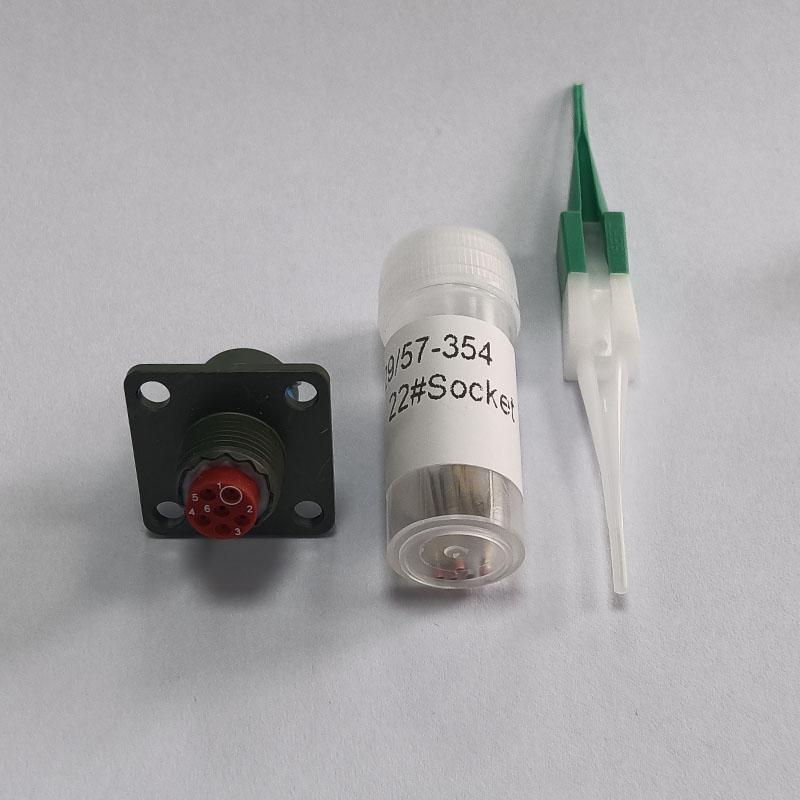

Connectors


Designed for Real Marine Operating Conditions

Unlike general industrial connectors, this model is built to perform in environments exposed to:

Continuous engine vibration

Salt-laden air and sea spray

High humidity and condensation

Rapid temperature fluctuations

Limited service access areas

Its Shell Size 8 configuration allows installation in confined equipment housings such as bridge control modules, navigation panels, engine monitoring units, and marine PLC cabinets.

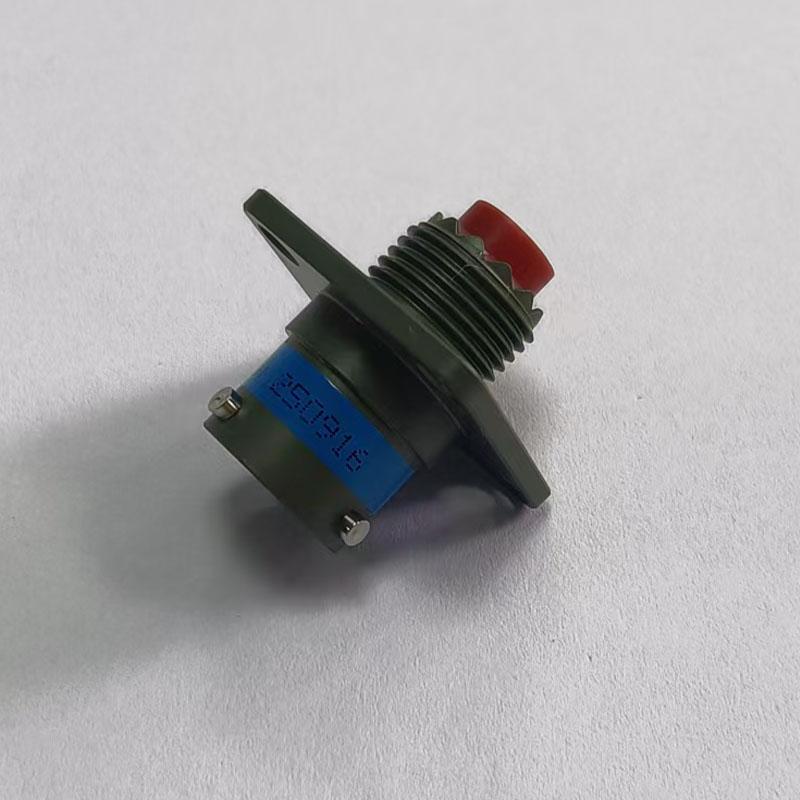

D38999 Connectors


Mechanical Security at Sea

The bayonet coupling system ensures fast, positive locking while preventing accidental disengagement caused by vessel movement or mechanical shock. This makes it particularly suitable for:

Radar interface modules

Generator monitoring circuits

Deck crane control wiring

Sensor distribution networks

Onboard communication systems

Connectors


Environmental Durability

The corrosion-resistant aluminum shell protects against offshore exposure, while IP67 sealing (when mated) safeguards internal contacts from dust and water ingress. The wide operating temperature range supports reliable performance from cold-weather operations to high-heat engine room conditions.

Electrical Reliability

Crimp termination ensures consistent contact integrity and low contact resistance, maintaining stable signal transmission in multi-core control circuits and low-current applications.

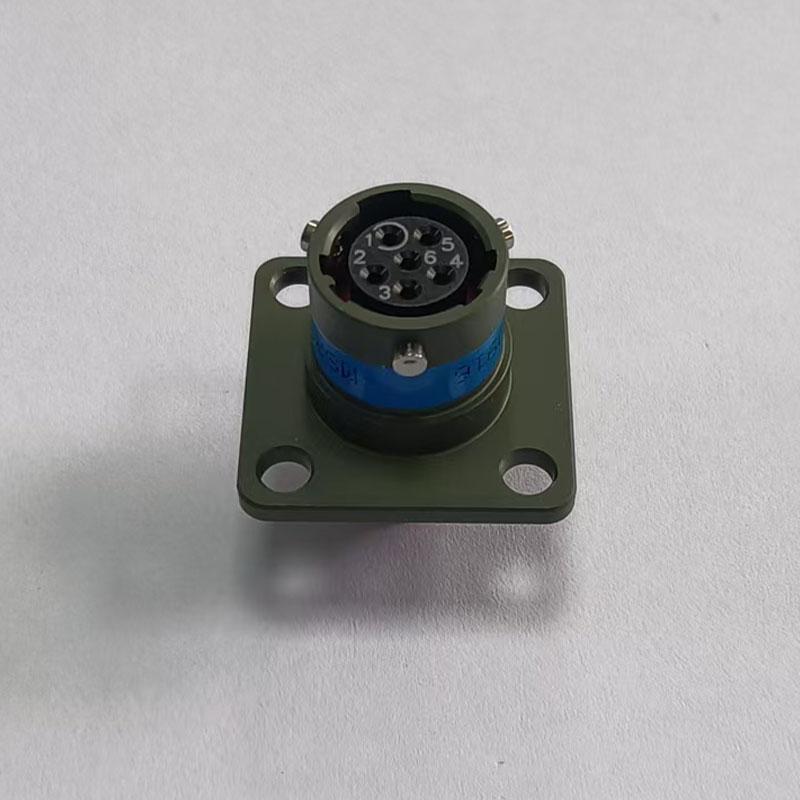

Circular Connectors


Why Choose MS27497T8B35SA for Marine Systems?

Compact 6-pin configuration for multi-signal integration

Secure vibration-resistant locking mechanism

Salt-spray resistant metal housing

Waterproof and dustproof sealing

Designed for long service life in shipboard systems

Item

Parameters

Number of Cores

6Pins

Gender

Male/Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

PEFT

Locking System

Bayonet Coupling

Temperature Range

-65°C to +175°C

Rated Current (A)

7.5A

Rated Voltage (AC.V)

600V

Test Voltage (AV.C)1Min

1800V

Insulation Resistance (㏁)

5000㏁

Contact Resistance (㏁)

≤3㏁

Termination

Crimp
