Selecting a Connector for PLC Expansion Modules with a 15mm Mounting Pitch

For PLC expansion modules with limited installation space and a 15mm mounting pitch, the M8 miniature series connector is the recommended choice. Its compact design is specifically suited for dense, space-constrained control cabinets and stacked module configurations.

Key Selection Criteria for Space-Constrained PLC Modules

• Compact Dimensions: The M8 connector has a width of less than 10mm, making it approximately 60% the size of a standard M12 connector. This allows for dense installation on a 15mm pitch without interfering with adjacent ports.
• Signal Versatility: Available with 4 to 8 pins, the M8 series supports both digital and analog signal transmission, covering common I/O requirements for expansion modules.
• Low Mating Force: With a plugging force of less than 10N, the connector facilitates easy and repeated mating, which is critical for stacked or side-by-side module expansion where access may be limited.
• Environmental Protection: The IP65 protection rating provides resistance to workshop dust, ensuring reliable performance in typical industrial environments.

Application Fit and Installation Notes

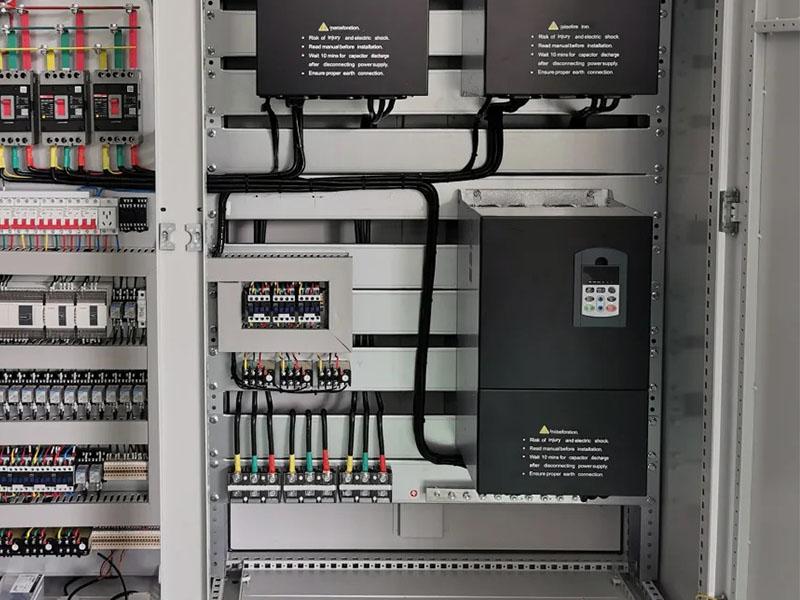

This connector is suitable for control cabinets and machinery where space is at a premium. The M8's small footprint and low mating force are particularly beneficial for modular PLC systems that require frequent reconfiguration or maintenance. For applications involving high humidity, consider reviewing additional protection requirements.

For related guidance on connector selection in control systems, you may find this resource on connector requirements for remote I/O modules useful.

Verifying Your Selection

Before finalizing, confirm the following parameters against your specific module's specifications:

• Pin count (4, 5, 6, or 8) matches the signal types (digital, analog, or power) you need to transmit.
• The connector's rated current and voltage meet your module's electrical requirements.
• The cable diameter range is compatible with your chosen cable assembly.
• The mounting style (e.g., panel mount, field-wireable) fits your module's enclosure design.

If your application involves encoder signals, also check the appropriate coding type to avoid mismatches. For further guidance on M12 coding for servo encoder signals, refer to this selection note.
