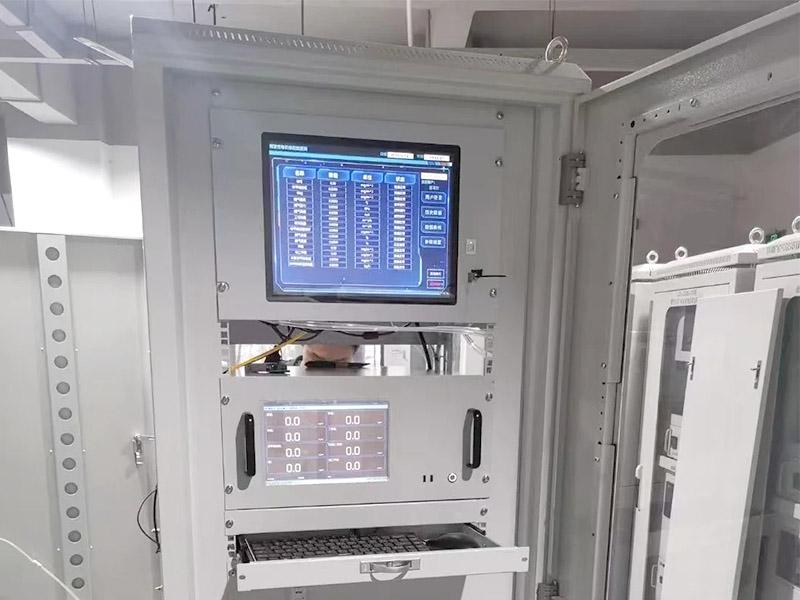

Connector Requirements for DCS Remote I/O Modules

When selecting connectors for remote I/O modules in Distributed Control Systems (DCS), the primary decision factors are protocol compatibility, signal density, environmental protection, and electromagnetic immunity. The connector must reliably aggregate signals from multiple field sensors while withstanding the electrical noise typical of industrial workshops.

Protocol and Signal Compatibility

The connector assembly must support Profinet or Modbus bus protocols to ensure seamless communication with the DCS. For signal aggregation from multiple sensors—such as temperature, pressure, and flow transmitters—a connector with 10 to 40 pins is typically required. This pin range accommodates the varied signal counts of distributed field devices without requiring multiple separate connections.

Mechanical and Environmental Specifications

For installation flexibility, DIN rail mounting is recommended to conserve cabinet space and simplify field wiring. The XS series (IP65-rated) is a suitable choice for this application, providing protection against dust and water ingress in industrial environments. The transmission distance is rated at ≤1,000 meters, extendable to 10 kilometers with the use of repeaters, which is a key consideration for large plant layouts.

Electromagnetic Interference Resistance

Industrial workshops often contain motors, drives, and switching equipment that generate significant electromagnetic interference. The connector should provide shielding effectiveness of ≥70 dB to maintain signal integrity and prevent data corruption. This level of shielding is essential for reliable DCS operation in harsh electrical environments.

Selection Notes

• Verify that the connector's pin count matches your sensor signal count, including spare pins for future expansion.
• Confirm the IP rating meets your specific installation environment; IP65 is suitable for most indoor industrial settings but may not be sufficient for washdown areas.
• Check the shielding effectiveness specification against your plant's known EMI levels; if uncertain, request test data from the manufacturer.
• Consider the cable length and repeater requirements early in the design phase to avoid signal degradation.
