Why M12 X-code Connectors Suit New Energy Vehicle BMS Applications

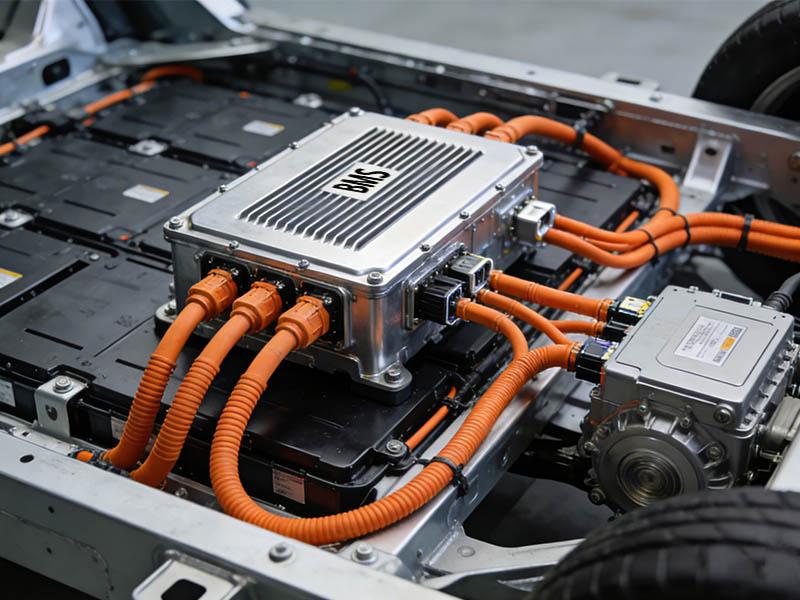

M12 X-code connectors are increasingly specified in battery management systems (BMS) for new energy vehicles because they combine high-voltage and high-current capability with precise signal transmission in a compact, keyed interface. This page explains the electrical, environmental, and installation factors that make them a preferred choice for engineers evaluating BMS connectivity.

Electrical Performance for BMS Monitoring

The M12 X-code connector supports a rated voltage of 800V and a rated current of 60A, enabling it to handle the power distribution demands of modern EV battery packs. For monitoring functions, it transmits cell voltage and temperature data in real time with a sampling accuracy of ±0.01V, which supports the high-precision measurement required for battery state estimation and safety management.

Environmental and Thermal Range

These connectors are designed to operate across a temperature range of -40°C to 125°C, covering the thermal extremes found in under-hood and battery-pack environments. This wide operating window helps maintain signal integrity and mechanical stability during both cold starts and high-load charging cycles.

Anti-Reverse Insertion Design

A key safety feature of the M12 X-code is its key misalignment design, which prevents incorrect mating. This anti-reverse insertion mechanism reduces the risk of battery short circuits caused by installation errors, a critical consideration in high-voltage BMS assemblies where miswiring can lead to catastrophic failure.

Application Fit and Selection Notes

When selecting an M12 X-code connector for a BMS, verify the following parameters against your system requirements:

• Confirm the system voltage and current do not exceed the 800V/60A rated limits, and account for any derating at elevated ambient temperatures.
• Check that the cable diameter and termination method match your harness construction, whether field-wireable or factory-molded.
• Validate the connector's IP rating and vibration resistance against the specific mounting location within the vehicle.
• Ensure the keying orientation is compatible with your panel or cable assembly layout to avoid installation errors.

For applications requiring similar high-reliability connections, review the M12 X-code 8Pin 1Gbps connector for vehicle lidar or consult the waterproof BMS connector case study for EV battery management for practical integration examples.

Inquiry Checklist

To receive an accurate connector recommendation, prepare the following details before contacting our engineering team:

• Operating voltage and continuous current, including peak transient values.
• Ambient temperature range and exposure to moisture, dust, or vibration.
• Required pin count and whether you need shielded or unshielded construction.
• Cable type, conductor size, and preferred termination (solder, crimp, or PCB).
• Mating cycle expectations and any specific standards or test requirements.
