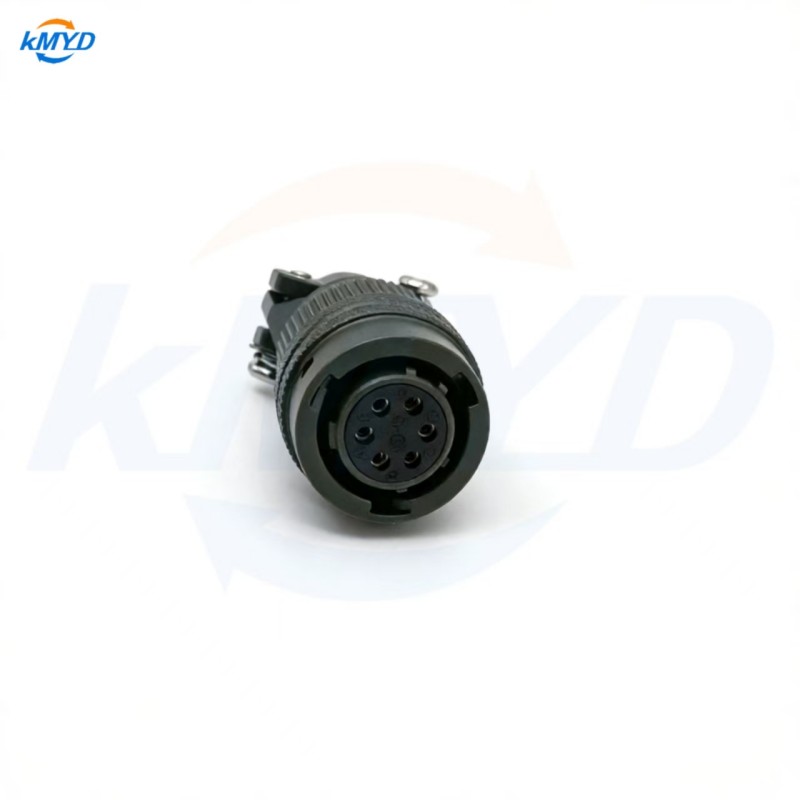

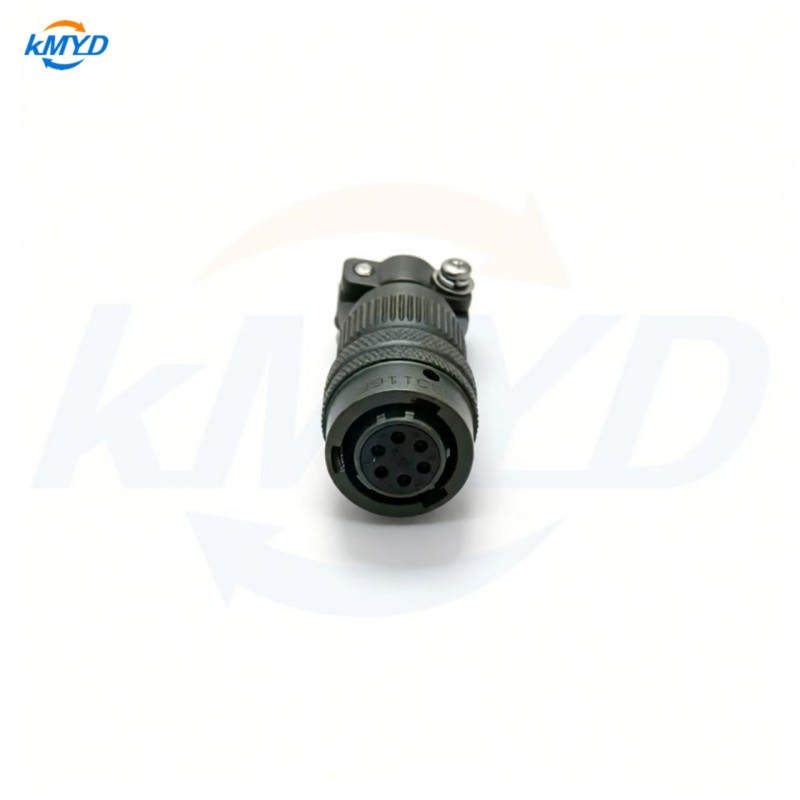

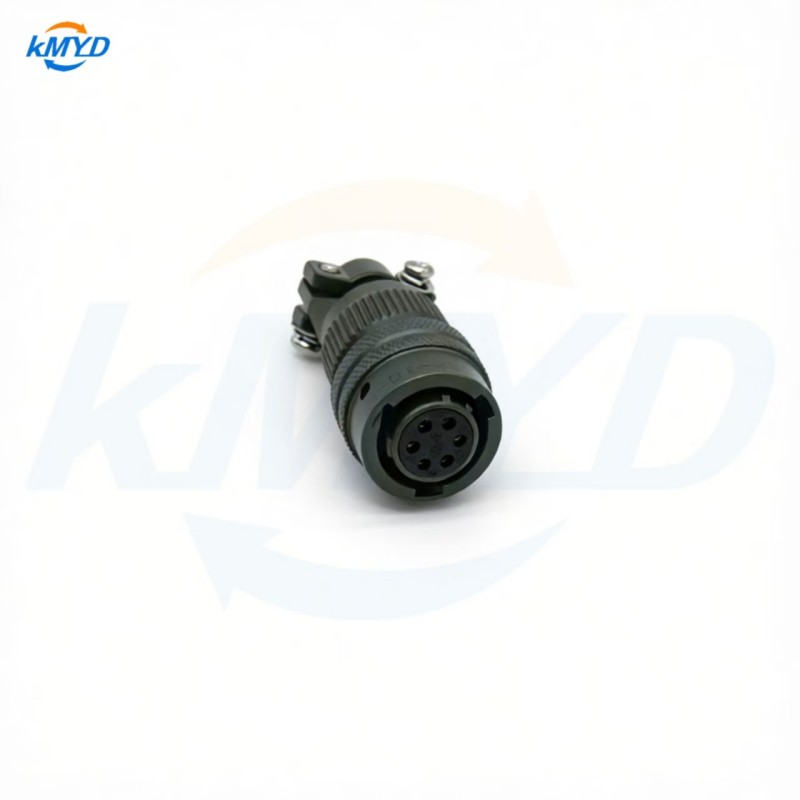

MS3116F-10-6S/PT06E106SSR 6 Pin MIL-DTL-26482 Military Circular Connector

MS3116F-10-6S/PT06E106SSR 6 Pin MIL-DTL-26482 Military Circular Connector

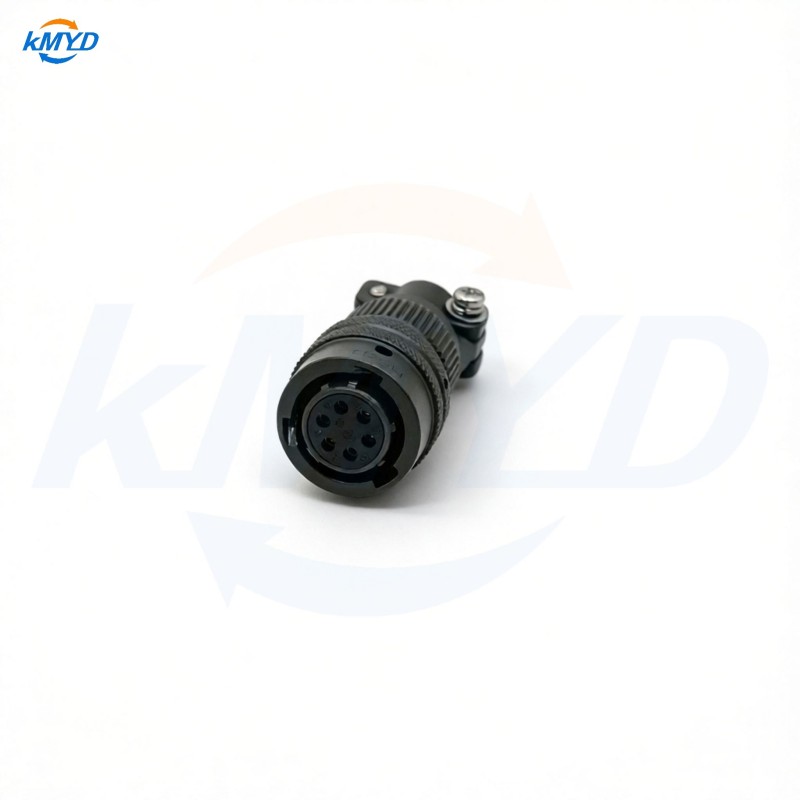

The MS3116F-10-6S/PT06E106SSR is a 6-socket, bayonet-coupling circular connector built to the MIL-DTL-26482 Series I specification. It is intended for engineers and procurement teams who need a compact, vibration-resistant interconnect for aerospace, defense, and industrial control systems where accidental disconnection is not acceptable.

Why Choose This 6-Pin Military Connector

This connector is selected when the application demands a proven military-standard interface, a compact shell size, and a locking mechanism that holds under shock and vibration. The 6-socket layout supports mixed power and signal circuits in one circular body.

• MIL-DTL-26482 Series I compliance – Suitable for defense and industrial programs that require a controlled, documented interface.

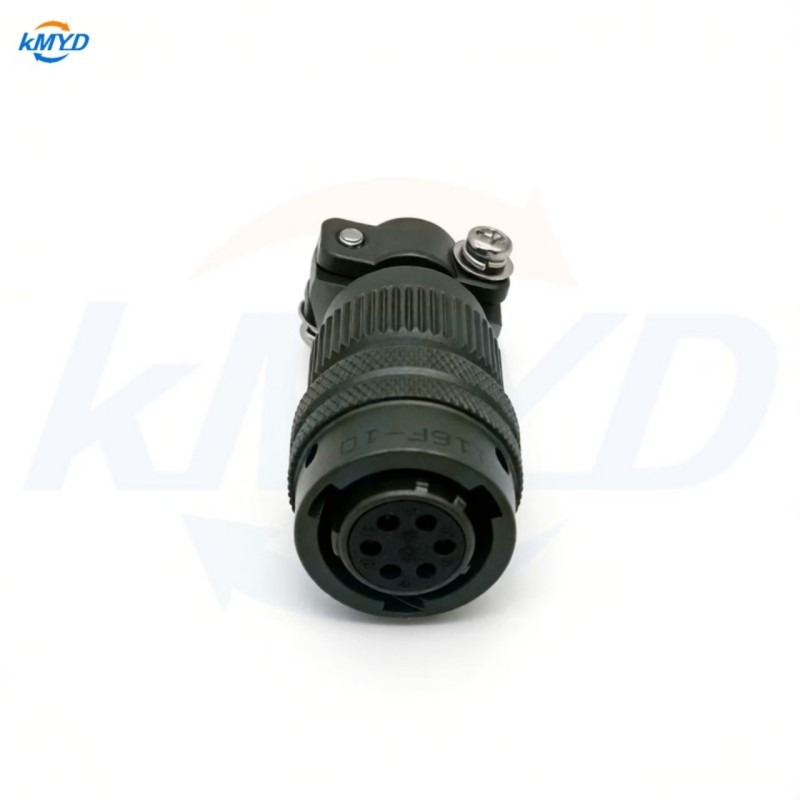

• 6 socket contacts – Provides a balanced pin count for power plus signal in a single circular shell.

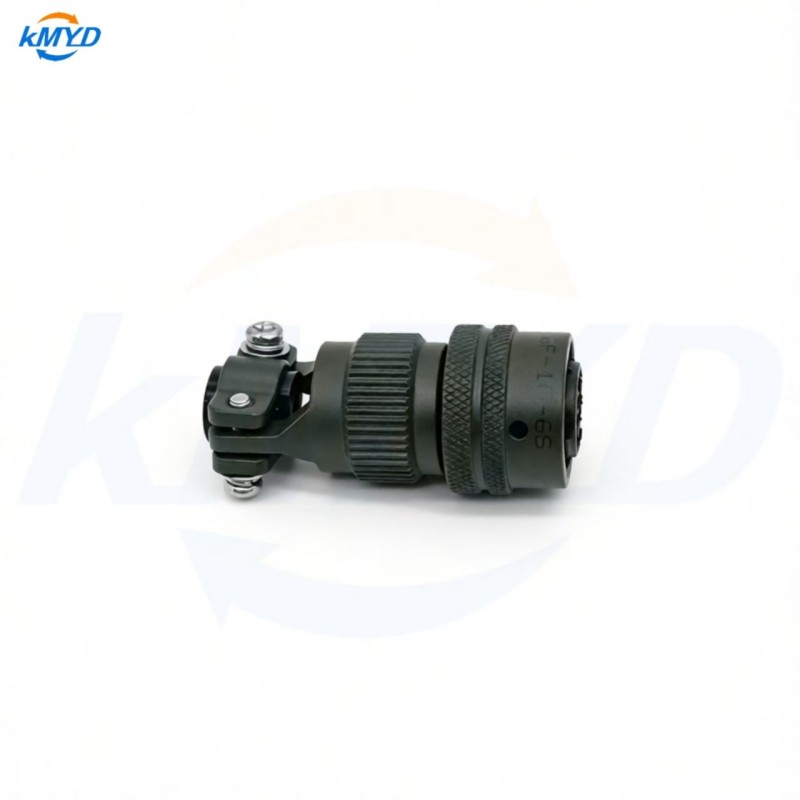

• Bayonet coupling – Gives fast, positive locking with visual confirmation of full engagement.
• Compact shell size 10 – Fits space-constrained panels, UAV payloads, and portable instruments.
• Rugged circular housing – Maintains mechanical integrity in high-vibration environments.

Mating and Installation Considerations

Before ordering, confirm the mating plug configuration. The MS3116F-10-6S is the receptacle side with socket contacts; it requires a corresponding MIL-DTL-26482 Series I plug with pin contacts. Bayonet coupling means the plug rotates and locks into the receptacle, so verify the shell size and keyway orientation match your existing cabling.

For field installation, check the recommended torque for the coupling nut and confirm the rear accessory thread size matches your cable clamp or strain relief. If you are building a custom harness, specify the wire gauge and whether you need potting or a sealed backshell.

Application Fit and Boundaries

This connector is a strong fit for aerospace avionics, military communication racks, UAV ground control stations, radar signal distribution, and industrial automation cabinets where a proven circular interface is required.

It is not intended for underwater mating, high-voltage power distribution above the rated specification, or applications requiring a threaded coupling mechanism. If your system needs a different shell size, pin count, or a hermetic seal, select a different MIL-DTL-26482 variant rather than modifying this one.

Factory Capability and Quality Evidence

Shenzhen Meiyadi Technology Co., Ltd. manufactures this connector with over 15 years of experience in connector R&D, mold development, precision machining, injection molding, and cable assembly. The factory supports prototype development through mass production with integrated quality inspection.

Quality control procedures cover electrical continuity, mechanical engagement, and dimensional verification. OEM/ODM services are available for custom cable assemblies and wiring configurations, with engineering support for application-specific requirements.

Inquiry Checklist for Accurate Matching

To receive a correctly matched connector or custom assembly, provide the following details:

• Mating plug part number or shell size and keyway orientation
• Pinout or wiring diagram for the 6 contacts
• Cable outside diameter and conductor gauge
• Required wire length and termination type (solder, crimp, or PCB)
• Environmental requirements: temperature range, sealing, and vibration levels
• Order quantity and target delivery date

For related high-reliability circular connector options, review the 12G Series Circular Connectors or the PC Series Circular Connector Types and Specifications.
