Selecting a Low-Power Connector for Field Security Cameras

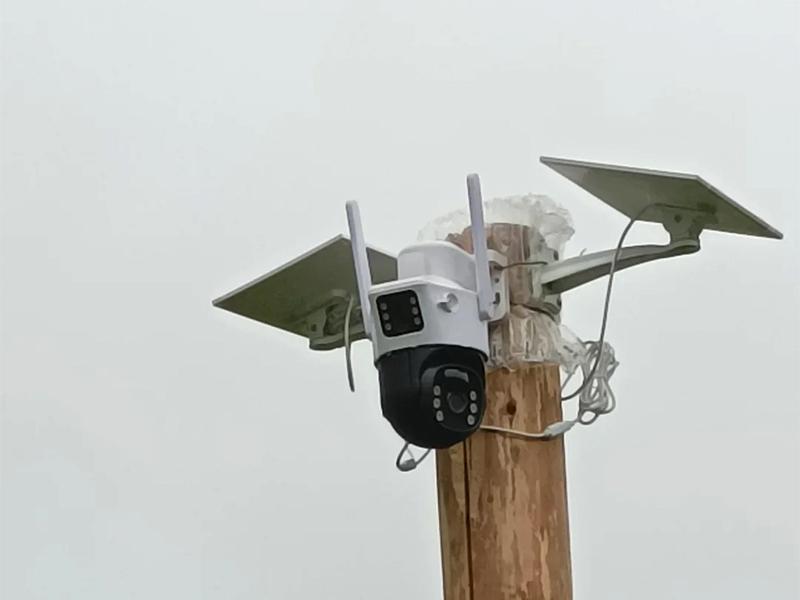

For field security cameras operating without grid power, the primary decision factor is minimizing energy consumption to extend battery life. The M8 low-power series connector is a suitable choice for this application.

Key Specifications of the M8 Low-Power Connector

• Current rating: ≤1mA, ensuring negligible standby power consumption.
• Pin configuration: 2 pins for battery power supply (compatible with 12V lithium batteries) and 2 pins for video signal transmission (compressed rate 1Mbps).
• Environmental protection: IP67 rating, resistant to rain and dew in outdoor field conditions.
• Operating temperature: -40~60℃, suitable for harsh environments like forests and oilfields.

Application Fit and Installation Considerations

This connector is designed for low-power, battery-operated devices. When planning your installation, verify the battery voltage and signal compression rate match the connector's specifications. The IP67 rating provides protection when mated; ensure the connector is properly seated to maintain the seal.

Selection Notes

This M8 series is intended for low-current signal and power applications. For higher power requirements or different signal types, consider other connector series. Confirm the cable diameter and termination method are compatible with your camera's wiring before purchase.
