2.5D Dimensional Accuracy Testing for Precision Connectors

LD20/SP20 Industrial Flange Connector Dimensions and Specs

Why Dimensional Accuracy Matters for Connectors

In precision connectors used across automotive and industrial systems, even a minor dimensional deviation can affect mating alignment, contact pressure, and long-term reliability. Dimensional accuracy testing with a 2.5D measuring instrument helps verify that connector housings, terminals, and contact layouts meet design specifications before assembly or shipment.

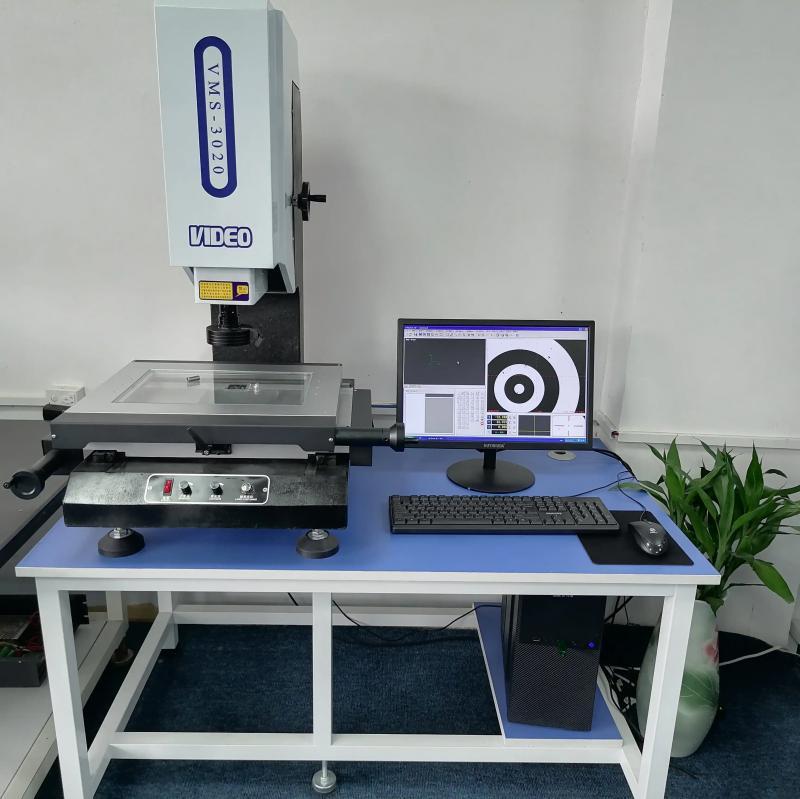

At KMYD, we use a 2.5D measuring instrument to check connector and terminal dimensions, ensuring proper alignment and precise fit. Accurate measurements guarantee consistent performance and smooth assembly, helping each product meet strict quality standards.

What a 2.5D Measurement Verifies

This testing is critical for precision connectors, such as those used in automotive or industrial applications, where even minor dimensional deviations can affect function. It ensures that every connector integrates perfectly into its intended system.

• Housing dimensions: Verifies overall length, width, height, and mounting features against the drawing.
• Terminal position and pitch: Confirms contact spacing and alignment to prevent mating issues.
• Keying and polarization features: Checks that coding slots and guides are within tolerance for correct insertion.
• Critical mating surfaces: Measures sealing grooves, locking features, and interface dimensions that affect IP rating and retention.

How Dimensional Testing Supports Your Project

For engineers and buyers evaluating connector options, dimensional inspection data provides objective evidence that a part will fit its mating interface and enclosure. When reviewing a connector proposal, ask whether dimensional reports are available for the specific series and pin count you plan to use.

If you are selecting a connector for a new design or verifying an existing one, dimensional accuracy testing helps reduce assembly rework and field failures. For related quality checks, see our electrical performance testing in connector quality control.

Next Step

To discuss your connector dimensional requirements or request inspection data for a specific series, contact our team through the inquiry form or WhatsApp. We can provide measurement details for the connector models you are evaluating.
