Why Choose Push-Pull Connectors for Tool-Free Operation

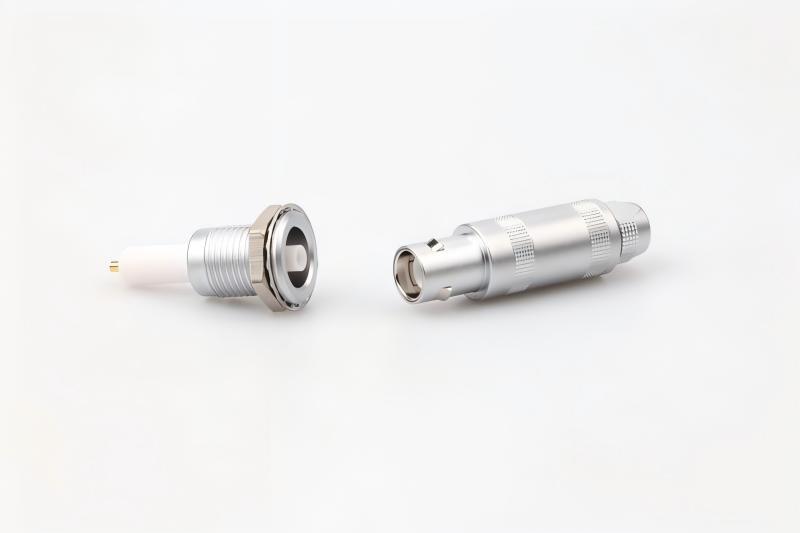

Push-pull connectors are engineered to deliver secure, reliable connections without requiring any tools. Their self-latching mechanism enables quick connect and disconnect cycles through a simple push or pull motion, reducing installation time and minimizing the risk of operator error. This design makes them well-suited for critical applications in medical devices, military equipment, and industrial systems where connection integrity and speed are essential.

Key Benefits for Engineers and Buyers

When evaluating push-pull connectors for your project, consider the following advantages that directly impact system performance and maintenance:

• Tool-free mating and unmating: Reduces assembly time and simplifies field servicing, especially in confined spaces.
• Secure locking mechanism: Prevents accidental disconnection due to vibration or cable pull, improving reliability in demanding environments.
• Rapid connect cycles: Supports frequent mating operations without degrading performance, ideal for test equipment and portable devices.
• Space-efficient design: Compact footprint suits high-density layouts in medical and industrial enclosures.

Application Fit and Selection Considerations

Choosing the right push-pull connector depends on your specific electrical, mechanical, and environmental requirements. Key factors to verify include:

• Electrical ratings: Confirm current and voltage capacity matches your load conditions, including any derating at elevated temperatures.
• Environmental protection: Check IP rating and temperature range against your operating environment, especially for outdoor or washdown applications.
• Mating interface and keying: Ensure plug and socket configurations, pin counts, and coding options align with your cable assembly and panel mounting needs.
• Termination method: Select solder, crimp, or PCB termination based on your production process and serviceability requirements.

For applications requiring frequent connection changes or where operator training is limited, push-pull connectors offer a practical solution. However, verify that the selected series meets your specific mechanical stress and environmental exposure limits before finalizing your design.

Next Steps for Your Connector Selection

To move forward, define your required pin count, current rating, and environmental protection level. If you need assistance matching a push-pull connector to your application, contact our engineering team with your project specifications for a detailed recommendation.
