Choosing a Multimeter Test Lead Connector for Multi-Range Compatibility

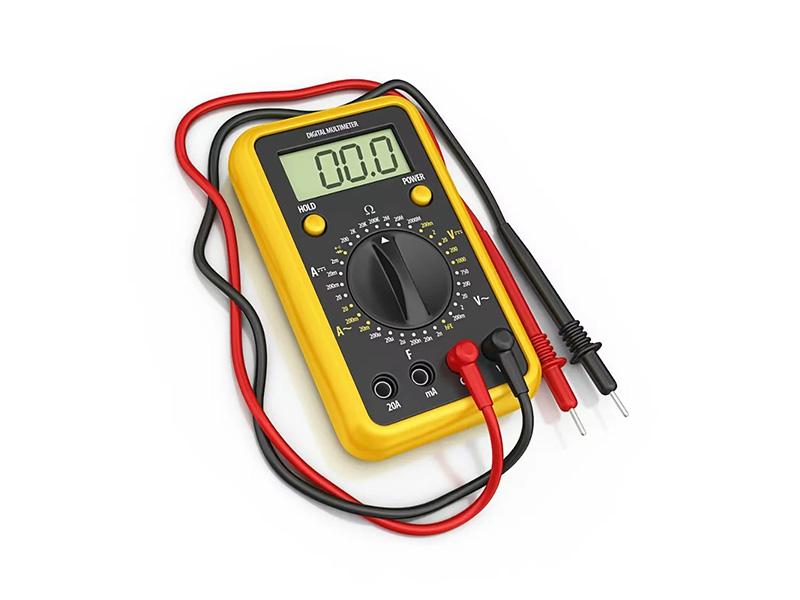

For multimeter test lead interfaces that must work across different measurement ranges, the banana plug series connector with a 4mm diameter is a practical and widely used choice. This connector type supports common multimeter functions such as voltage, current, and resistance measurement, and its design simplifies lead replacement when switching between ranges or replacing damaged leads.

Key Selection Criteria

• Interface Standard: 4mm banana plug connectors are the industry-standard interface for most multimeters, ensuring broad compatibility with existing test leads and equipment.
• Mating Force: A plugging force of less than 10N allows for easy insertion and removal, reducing strain during frequent test lead changes.
• Contact Performance: Copper-plated contacts provide low contact resistance, which is essential for maintaining measurement accuracy across different ranges.
• Insulation and Safety: PA66 insulating material offers temperature resistance from -20°C to 80°C, suitable for standard laboratory environments.
• Error Prevention: Color-coded interfaces and a misplug protection design help operators quickly identify the correct port for each range, minimizing operational errors.

Electrical and Environmental Considerations

When selecting a connector for multimeter applications, verify that the contact resistance and insulation properties meet your accuracy requirements. The copper-plated contacts in this series are designed to support a test accuracy of ±0.1%, which is adequate for most laboratory and field measurement tasks. The PA66 housing provides reliable insulation within the specified temperature range, but for extreme environments outside -20°C to 80°C, confirm the derating characteristics with the manufacturer.

Application Boundaries

This connector solution is best suited for benchtop and handheld multimeters used in laboratory, educational, and general industrial testing. It is not intended for high-voltage power transmission or applications requiring waterproof or sealed connections. For those requirements, consider alternative connector families with appropriate IP ratings and voltage specifications.

Installation and Maintenance Notes

Banana plug connectors are field-replaceable without special tooling. When replacing test leads, ensure the connector is fully seated to maintain low contact resistance. Periodically inspect the contacts for oxidation or wear, as this can affect measurement accuracy over time. For high-frequency or low-level signal measurements, verify that the connector's capacitance and inductance characteristics are compatible with your test setup.

For more details on the banana plug series and its specifications, refer to the banana plug series connectors catalog or the 4mm banana plug connector with gold-plated contacts for higher-performance contact options.
