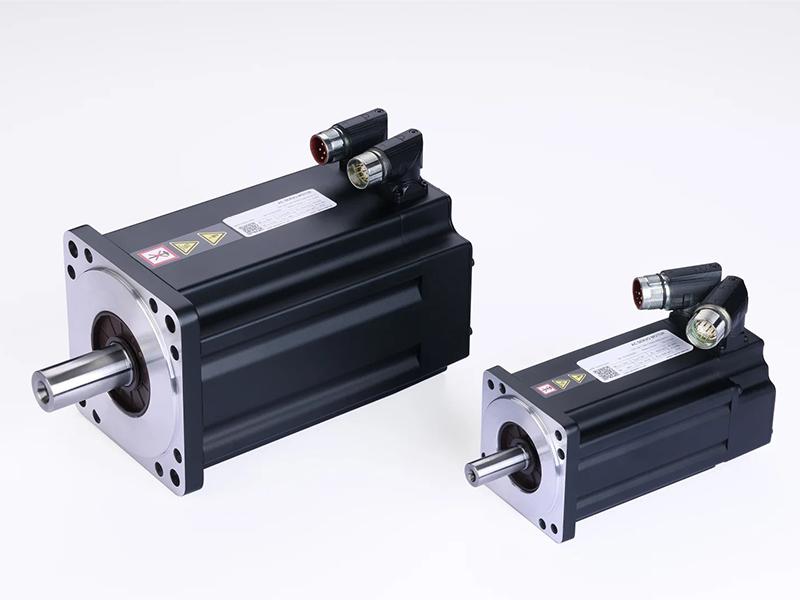

Selecting the Right M12 Code for Servo Motor Encoder Signals

For servo motor encoder signals, the M12 A-code connector is the recommended choice. This coding type is specifically designed to support the RS485 communication bus, which is commonly used in servo drive systems for reliable data transmission.

Key Specifications of M12 A-Code for Encoder Applications

• Pin Configuration: Available in 4-pin and 5-pin versions to match different encoder signal requirements.
• Transmission Rate: Supports RS485 bus communication at up to 100 Mbps, ensuring fast and accurate data transfer.
• Contact Resistance: Less than 3 mΩ, minimizing signal loss and maintaining signal integrity.
• Angle Accuracy: Enables precise encoder angle signal transmission with accuracy of ±0.001°.
• Response Time: Meets the high-frequency response requirement of ≤1 ms for servo systems.

Choosing Between 4-Pin and 5-Pin Versions

The selection between 4-pin and 5-pin M12 A-code connectors depends on the encoder type used in your servo motor system:

• 4-Pin Version: Suitable for incremental encoders that require basic signal transmission for position and speed feedback.
• 5-Pin Version: Recommended for absolute encoders, as the additional pin transmits zero-position signals, providing enhanced positioning accuracy and system reliability.

Application Considerations

When integrating M12 A-code connectors into your servo motor system, consider the following factors to ensure optimal performance:

• Environmental Protection: Verify the IP rating of the connector matches your application environment, especially in industrial settings with dust or moisture exposure.
• Cable Assembly: Ensure the cable assembly is properly shielded to prevent electromagnetic interference, which can affect signal quality in high-noise industrial environments.
• Mating Cycles: Consider the expected number of mating cycles for your application to select a connector with appropriate durability.

For applications requiring enhanced interference protection in PLC control systems, shielded M12 D-code connectors may offer additional benefits. However, for standard servo motor encoder signals, the A-code configuration provides the necessary performance and reliability.

If you need assistance selecting the appropriate connector for your specific servo motor encoder setup, please provide your system requirements, and our engineering team can help you determine the optimal solution.
