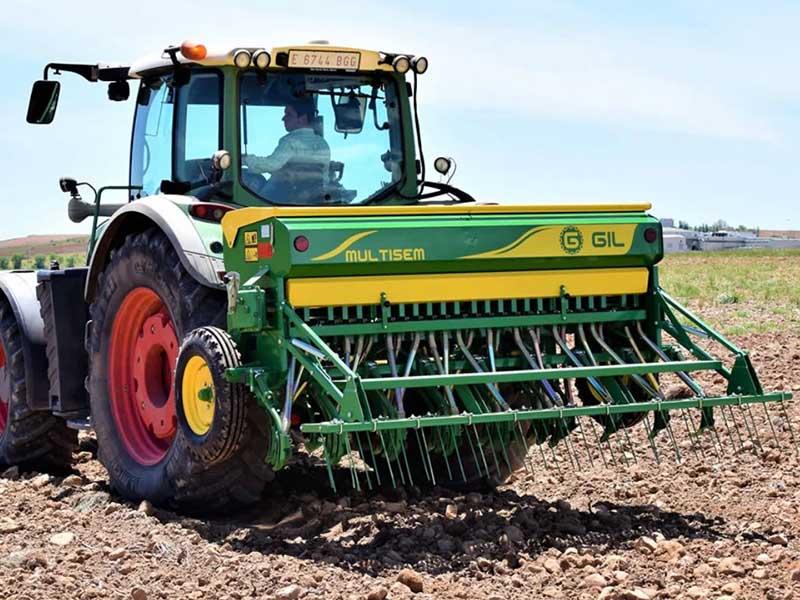

Connector Compatibility with Beidou Navigation for Intelligent Seeders

Yes, compatibility is required. The automatic driving module of an intelligent seeder relies on accurate positioning data, and the connector must support the communication protocol and electrical characteristics used by Beidou navigation receivers.

Recommended Connector: LD Series Waterproof Connector (IP67)

The LD series waterproof connector is designed for this application. It supports the RS232 communication protocol, a common interface for Beidou navigation modules, with a transmission rate of 9600bps. This enables stable transmission of Beidou positioning data with an accuracy of ±1m, helping the seeder maintain a straight travel path with a deviation of ≤5cm.

Key Performance Characteristics

• Threaded locking design: Recommended tightening torque is 0.8~1.2N·m, which helps prevent signal interruption caused by field vibrations and jolts.
• Environmental protection: Rated IP67 for dust and water ingress protection, with a salt spray test rating of ≥500 hours to withstand humid field conditions.
• Communication protocol: RS232 at 9600bps, matching typical Beidou navigation data output requirements.

Selection Considerations

When selecting a connector for this module, verify the following parameters against your specific navigation receiver and seeder wiring:

• Confirm the exact communication protocol (RS232, RS485, or CAN) supported by your Beidou receiver.
• Check the connector's rated current and voltage against the module's power requirements.
• Ensure the cable entry size matches your wiring harness and that the connector's mating cycles meet your seasonal usage expectations.

For related guidance on connector storage during off-season and sensor connections in agricultural machinery, refer to our connector maintenance FAQ for agricultural equipment and sensor connector selection notes.
